Height Control Indicator Lamp Circuit: Wiring Diagram

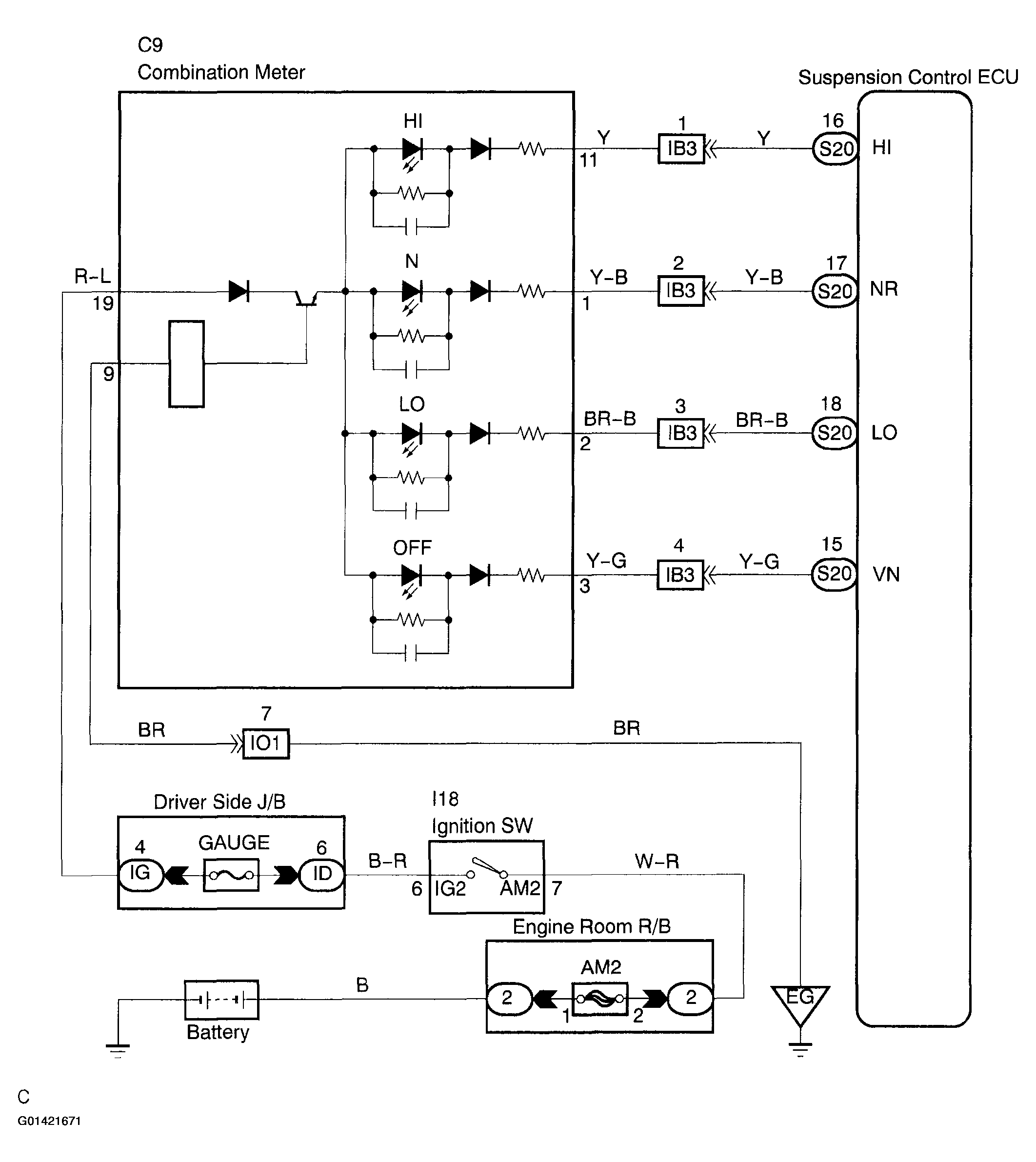

Fig 1: Wiring Diagram

G01421671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
