DTC C1779/79: Crankshaft Position Sensor Circuit, DTC C1797/97 Crankshaft Position Sensor Circuit: Wiring Diagram

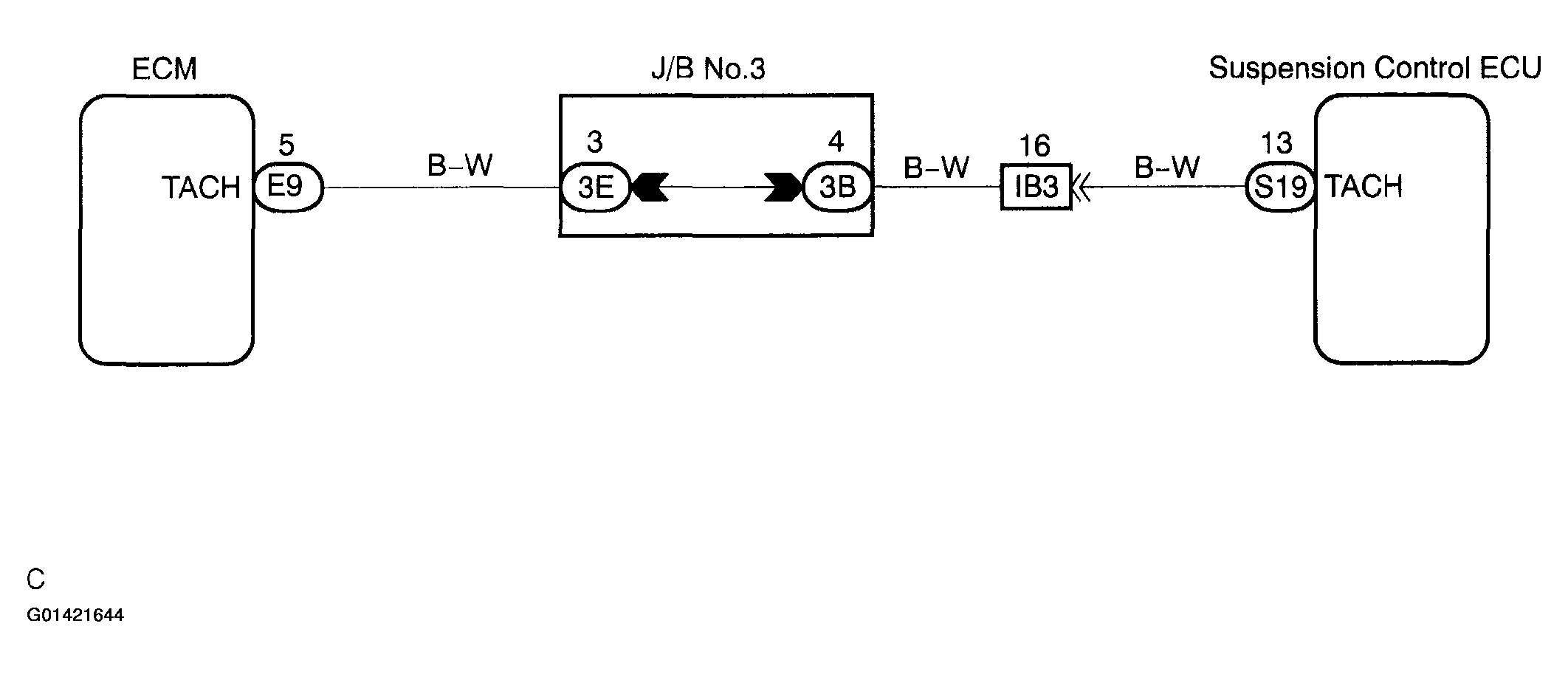

Fig 1: Wiring Diagram

G01421644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
