DTC C1777/77: Steering Angle Sensor Circuit: Wiring Diagram

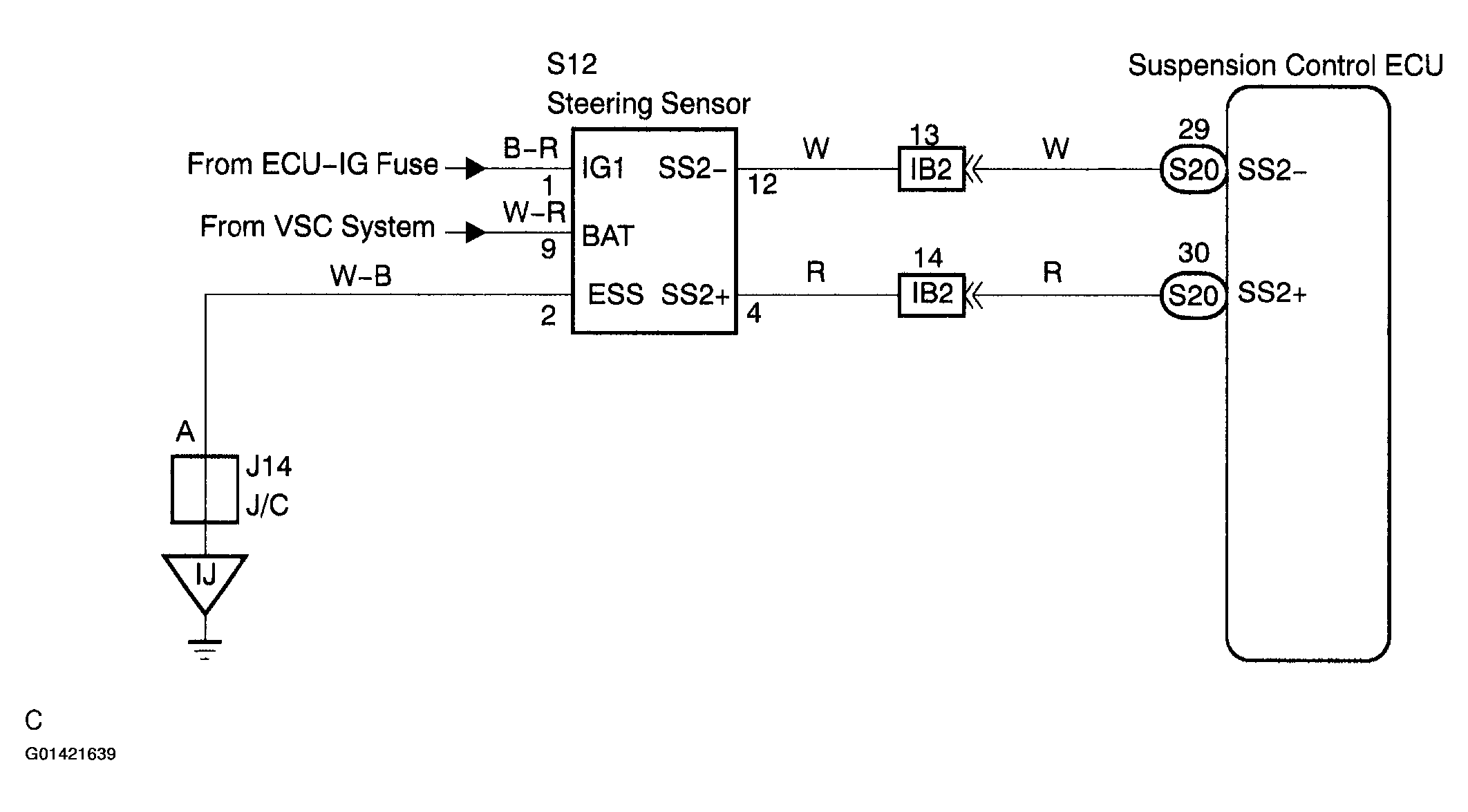

Fig 1: Wiring Diagram

G01421639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
