DTC C1776/76: Speed Sensor Circuit, DTC C1794/94 Right Front Speed Sensor Circuit, DTC C1795/95 Left Front Speed Sensor Circuit: Wiring Diagram

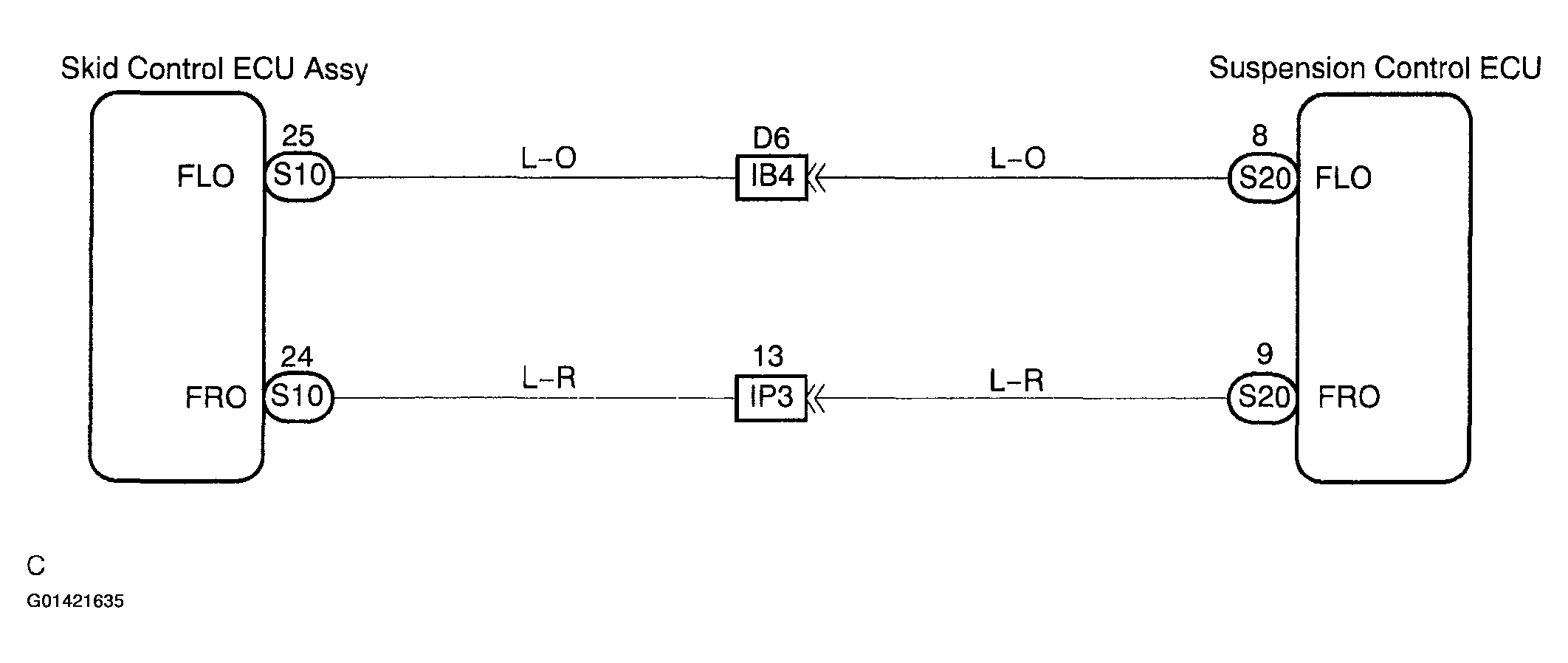

Fig 1: Wiring Diagram
G01421635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
