Inspection Procedure

  1. INSPECT SOURCE VOLTAGE
    1. Check the battery positive voltage.

    Standard: 10 to 14 V

    1. NG: REPLACE BATTERY
    2. OK: GO TO NEXT STEP.
  2. INSPECT FUSE (AIR SUS NO.2)
    1. Remove the AIR SUS No.2 fuse from the engine room R/B.
    2. Check continuity of the AIR SUS No.2 fuse.

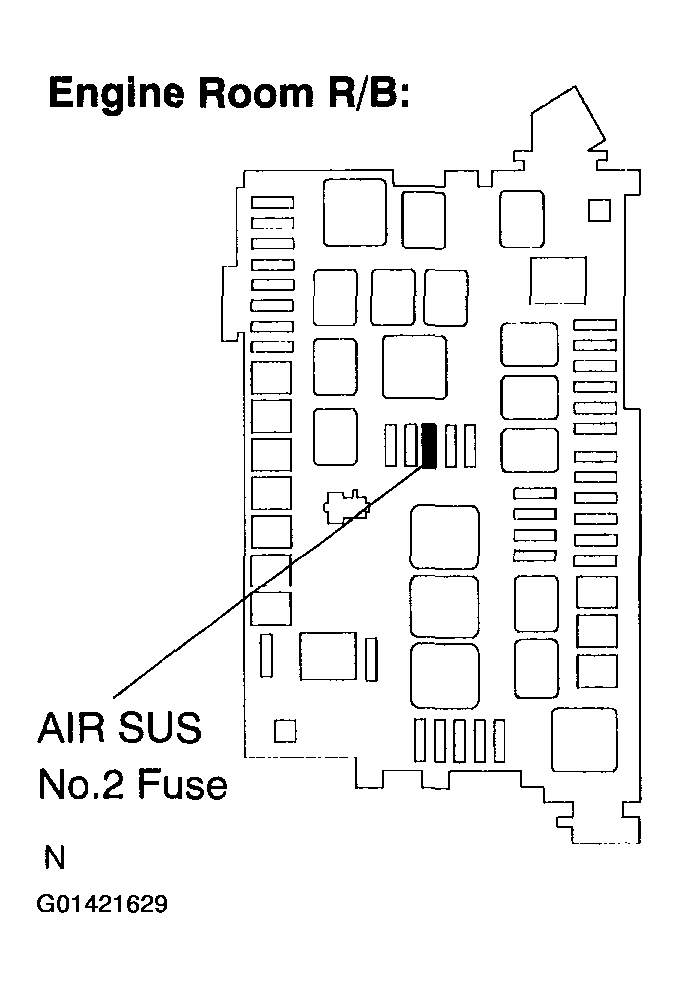

      Fig 1: Inspecting Fuse (Air SUS No)
      G01421629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard: Continuity

    1. NG: INSPECT FOR SHORT CIRCUIT IN ALL HARNESS AND COMPONENTS CONNECTED TO AIR SUS NO.2 FUSE
    2. OK: GO TO NEXT STEP.
  3. INSPECT FUSE (TEMS)
    1. Remove the TEMS fuse from the driver side J/B.
    2. Check continuity of the TEMS fuse.
      Fig 2: Inspecting Fuse (Tems)
      G01421630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard: Continuity

    1. NG: INSPECT FOR SHORT CIRCUIT IN ALL HARNESS AND COMPONENTS CONNECTED TO TEMS FUSE
    2. OK: GO TO NEXT STEP.
  4. INSPECT SUSPENSION CONTROL ECU
    1. Remove the suspension control ECU with connectors being connected.
    2. Turn the ignition switch ON, and measure voltage between terminal S19-6 (B) and S20-1 (GND) and between terminal S19-6 (B) and S19-5 (GND2) of the suspension control ECU connector.

      Standard: 10 to 14 V

      Fig 3: Measuring Voltage Between Terminal S19-6 (B) And S20-1 (GND)
      G01421631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the ignition switch ON, measure voltage between terminal S20-10 (IG) and S20-1 (GND) and between terminal S20-10 (IG) and S19-5 (GND2) of the suspension control ECU connector.

      Standard: 10 to 14 V

      Fig 4: Measuring Voltage Between Terminal S20-10 (IG) And S20-1 (GND)
      G01421632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: CHECK AND REPLACE SUSPENSION CONTROL ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. NG: GO TO NEXT STEP.
  5. CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - BODY GROUND)
    1. Disconnect the suspension control ECU connectors.
    2. Turn the ignition switch ON, and check continuity between terminal S20-1 (GND) and body ground and between terminal S19-5 (GND2) and body ground.

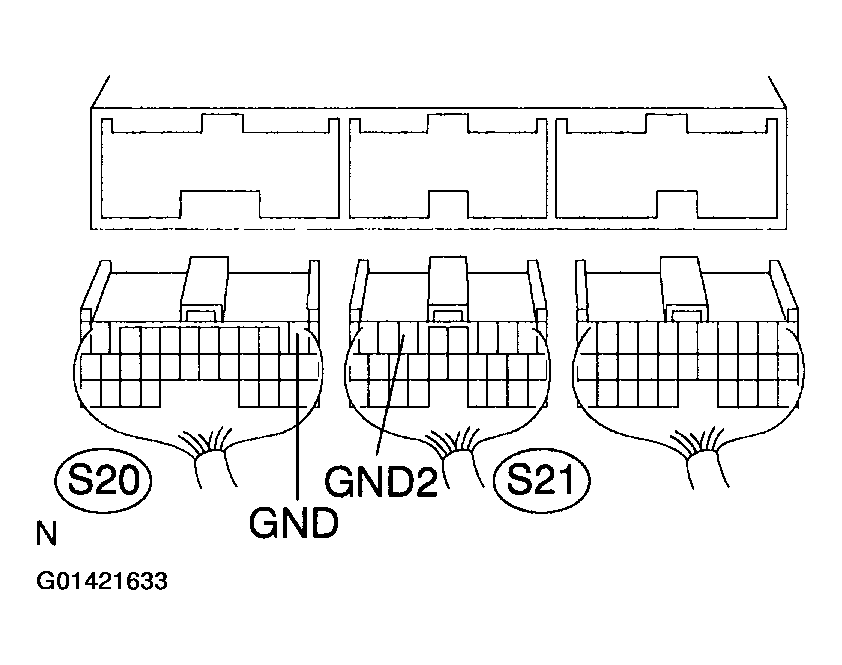

      Fig 5: Checking Continuity Between Terminal S20-1 (GND) And Body Ground
      G01421633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard: Continuity

    HINT:

    • OK:

      Repair or replace the harness or the connector between the AIR SUS fuse and the suspension control ECU and/or the TEMS fuse and the suspension control ECU.

    • NG:

      Repair or replace the harness or the connector between the suspension control ECU and body ground.

    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP.

      REPAIR OR REPLACE HARNESS OR CONNECTOR
