DTC C1742/42: Height Control Compressor Circuit: Wiring Diagram

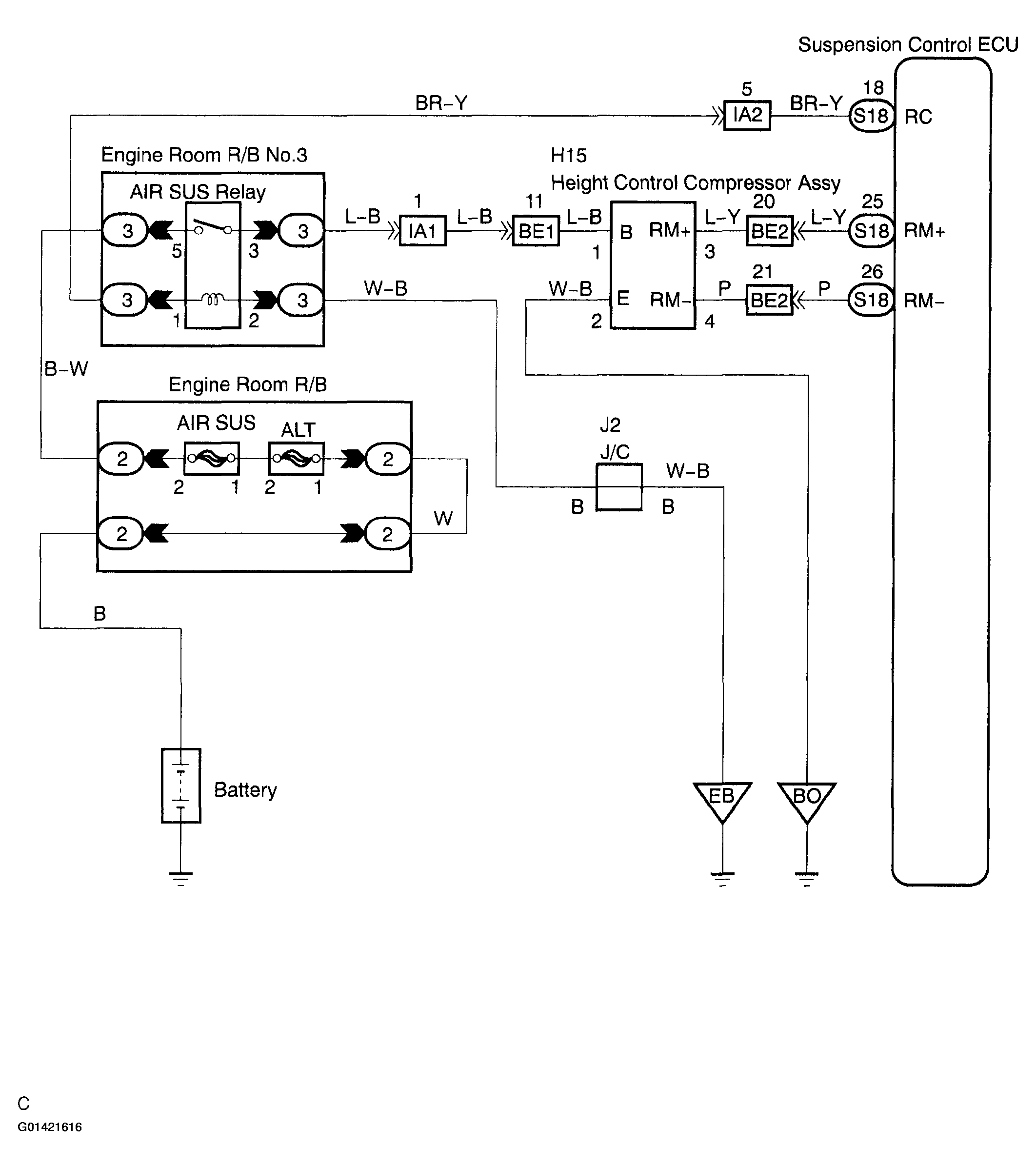

Fig 1: Wiring Diagram

G01421616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
