DTC C1733/33: Gate Solenoid Valve Circuit, DTC C1734/34 Leveling Solenoid Valve Circuit, DTC C1735/35 Exhaust Solenoid Valve Circuit, DTC C1744/44 Tank Solenoid Valve Circuit: Wiring Diagram

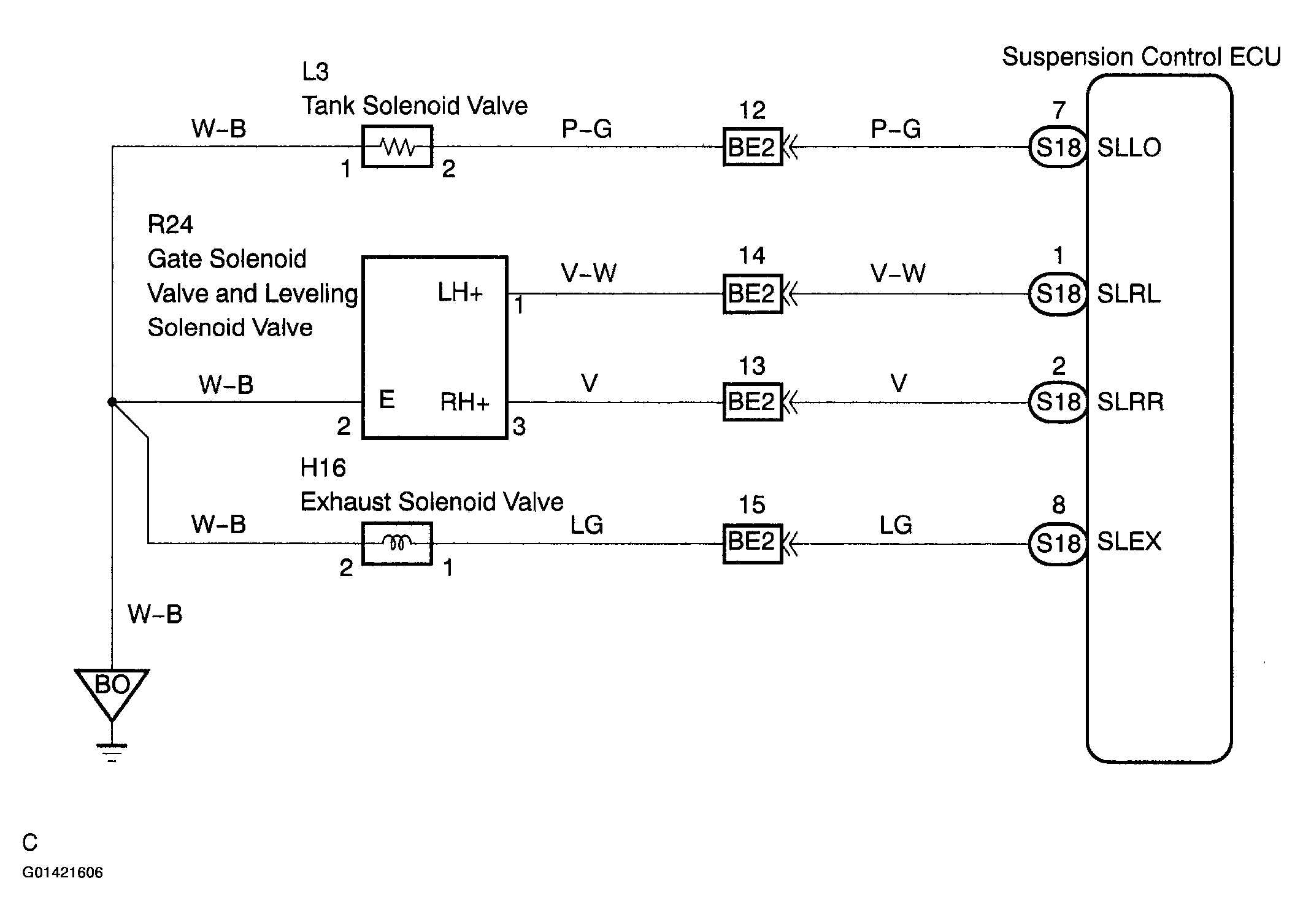

Fig 1: Wiring Diagram
G01421606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
