DTC C1713/13: Right Rear Height Control Sensor Circuit, DTC C1714/14 Left Rear Height Control Sensor Circuit: Wiring Diagram

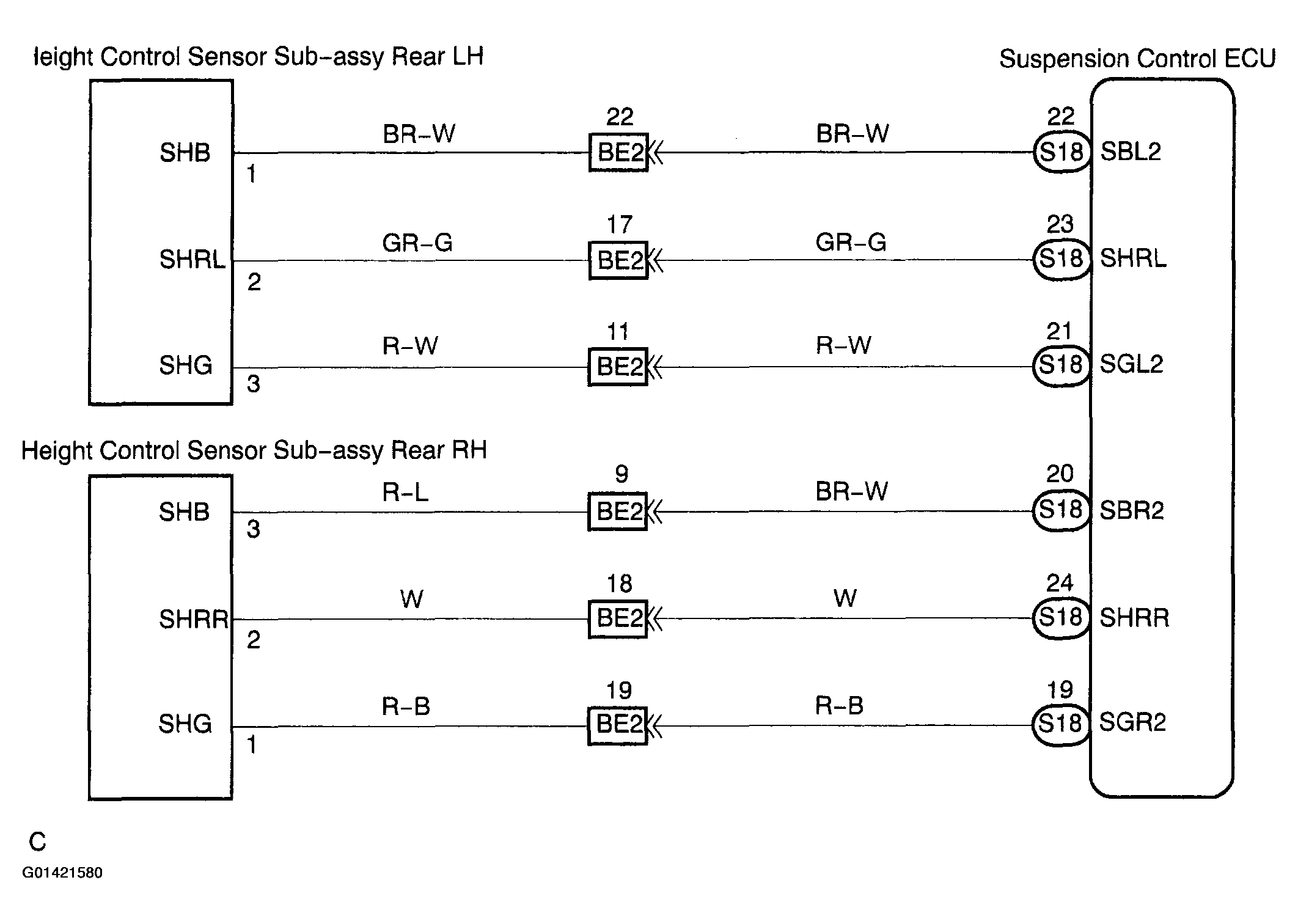

Fig 1: Wiring Diagram

G01421580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
