VSC Warning Light Circuit (Does Not Light Up): Wiring Diagram

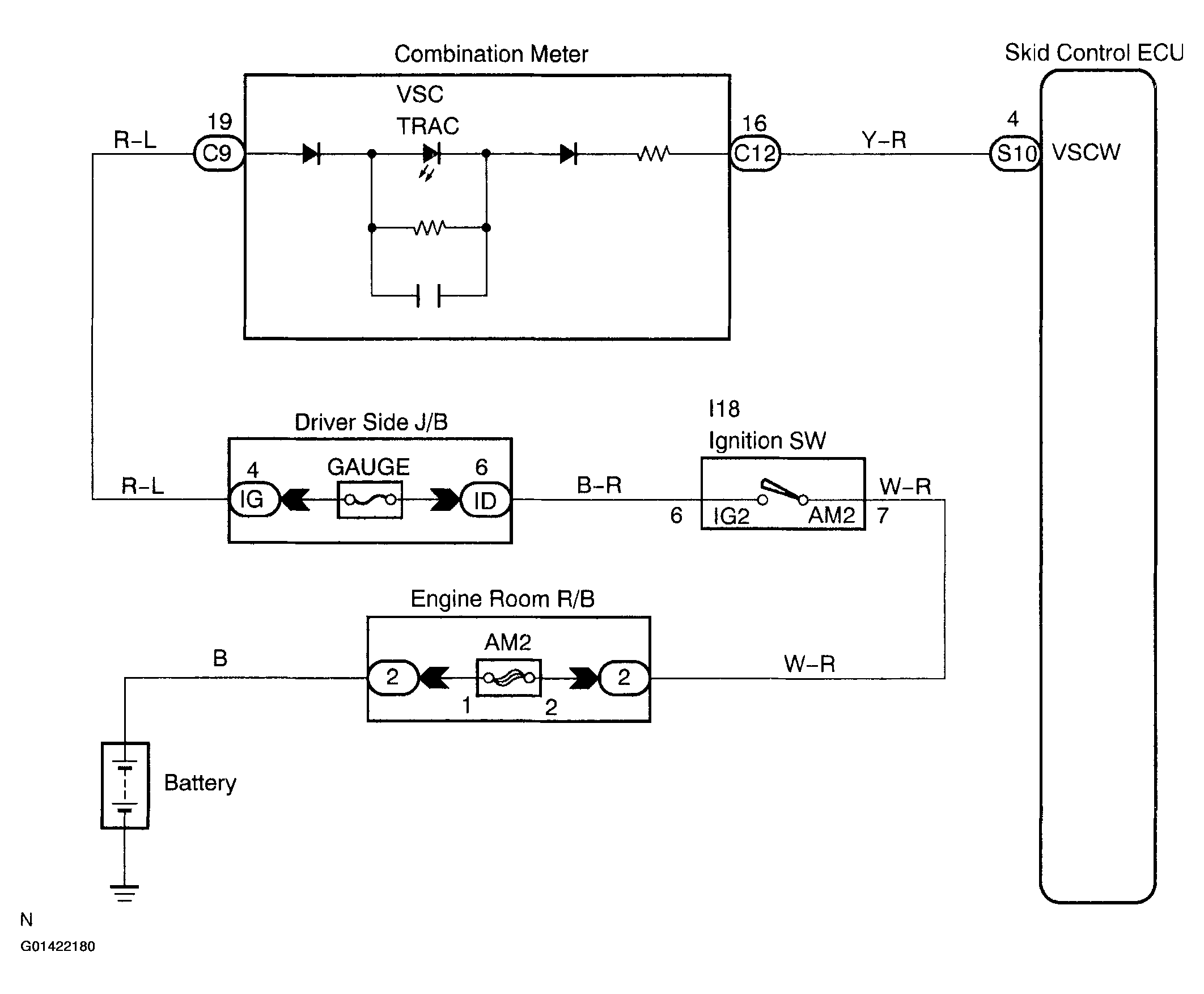

Fig 1: VSC Warning Light Circuit (Does Not Light Up) Wiring Diagram

G01422180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
