VSC Off Indicator Light, Center Diff. Lock Switch Circuit: Wiring Diagram

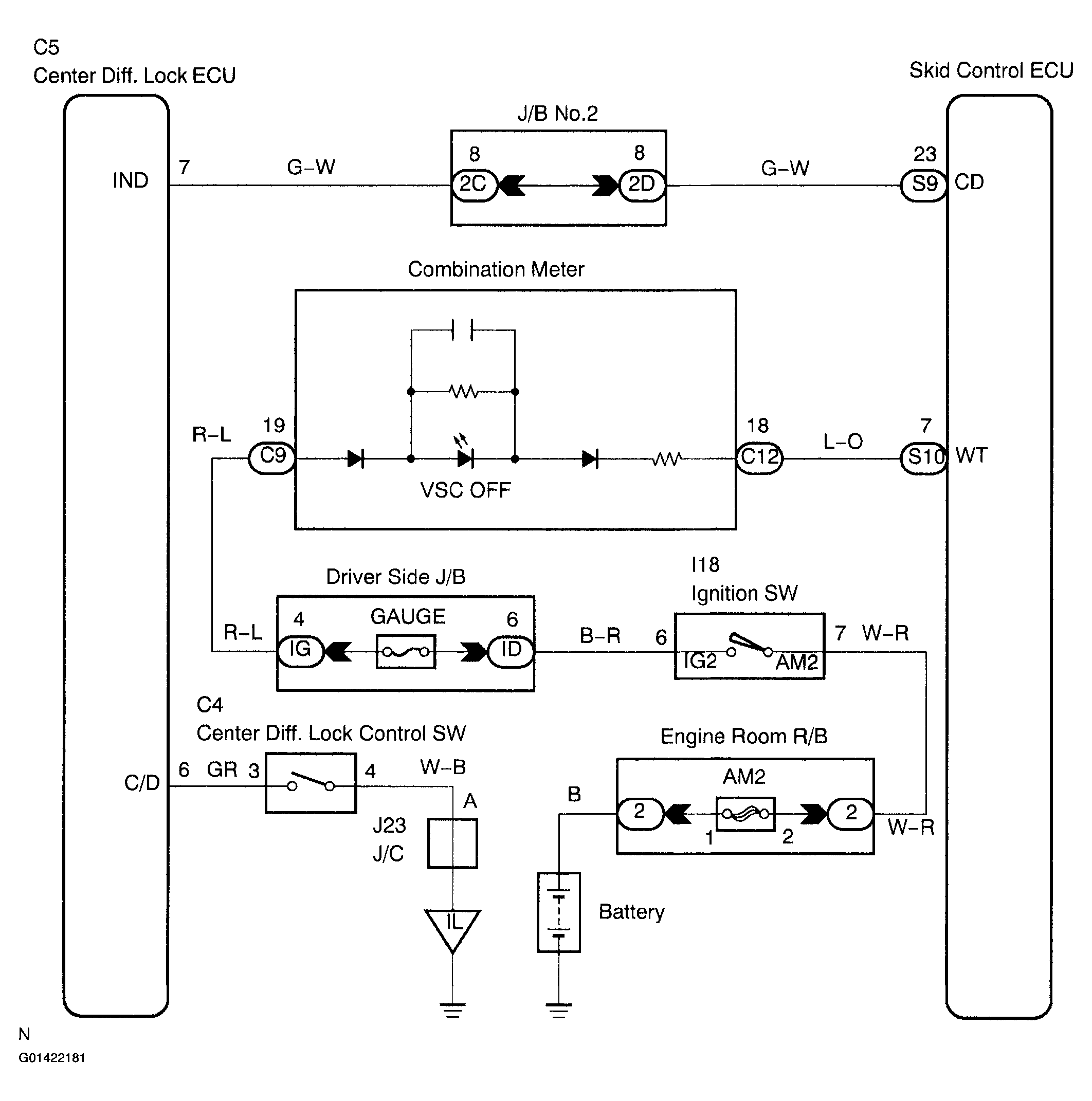

Fig 1: VSC Off Indicator Light, Center Diff Wiring Diagram

G01422181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
