TS Terminal Circuit: Wiring Diagram

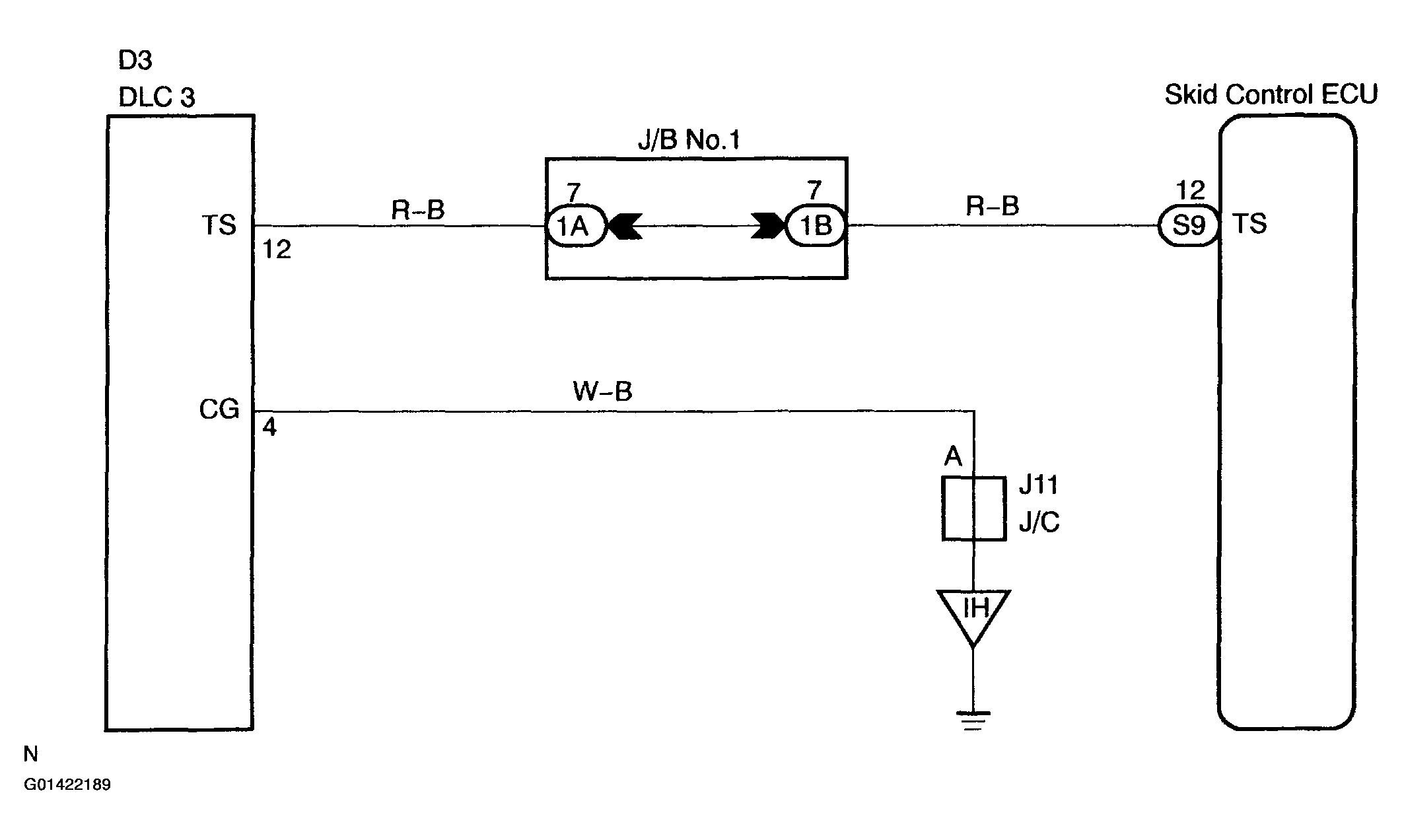

Fig 1: TS Terminal Circuit Wiring Diagram

G01422189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
