TC Terminal Circuit: Wiring Diagram

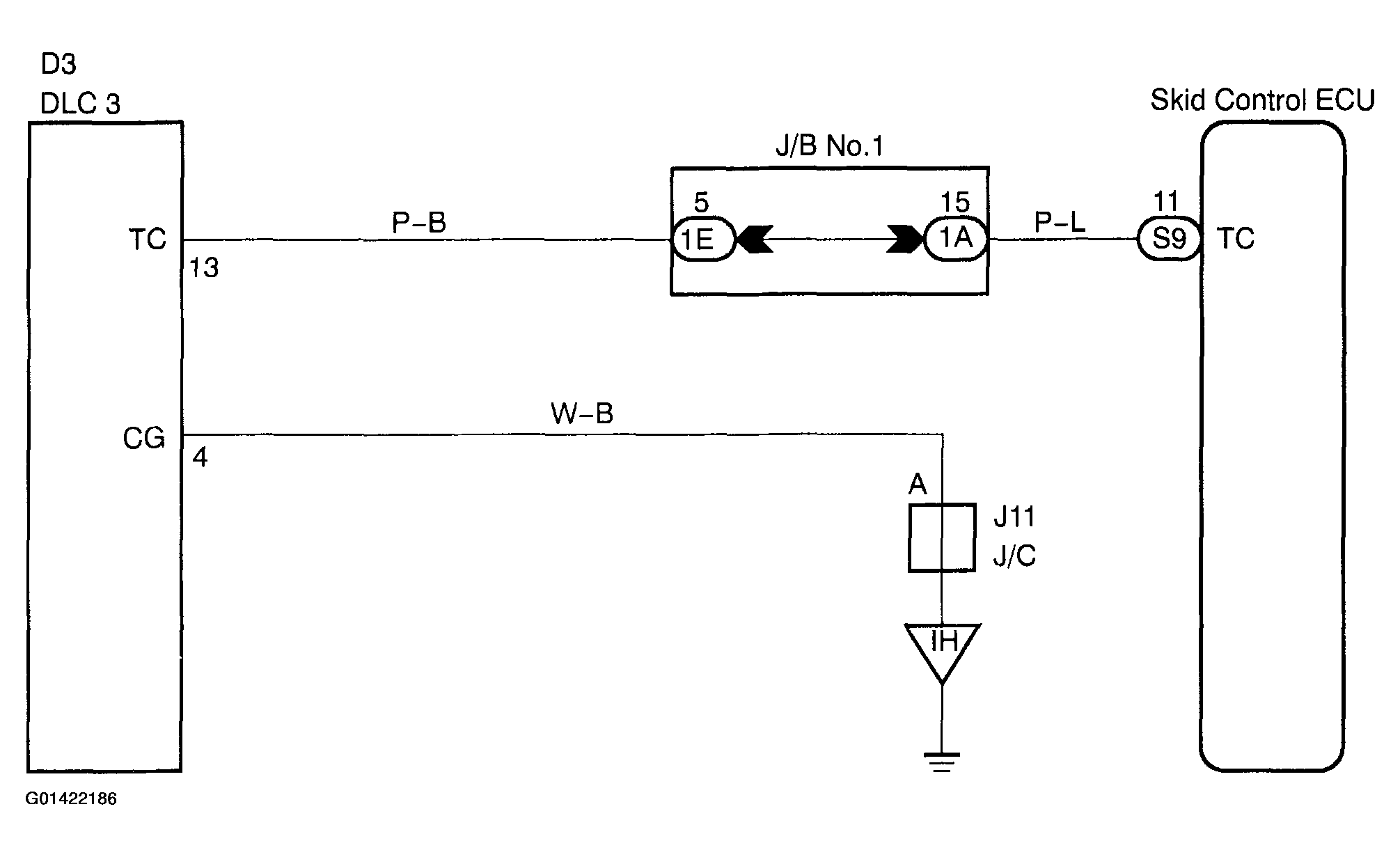

Fig 1: TC Terminal Circuit Wiring Diagram

G01422186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
