Slip Indicator Light Circuit: Wiring Diagram

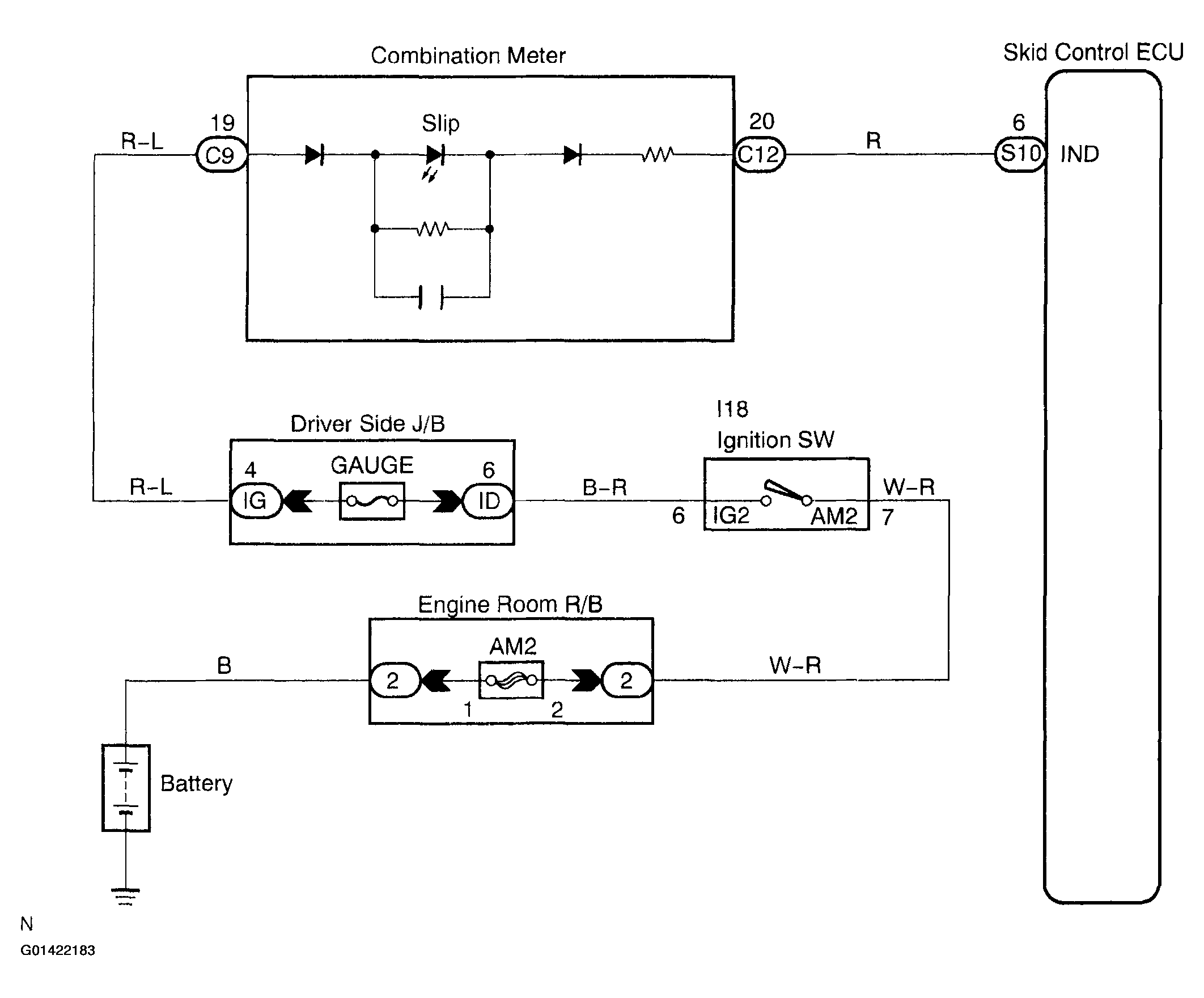

Fig 1: Slip Indicator Light Circuit Wiring Diagram

G01422183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
