Skid Control Buzzer Circuit: Wiring Diagram

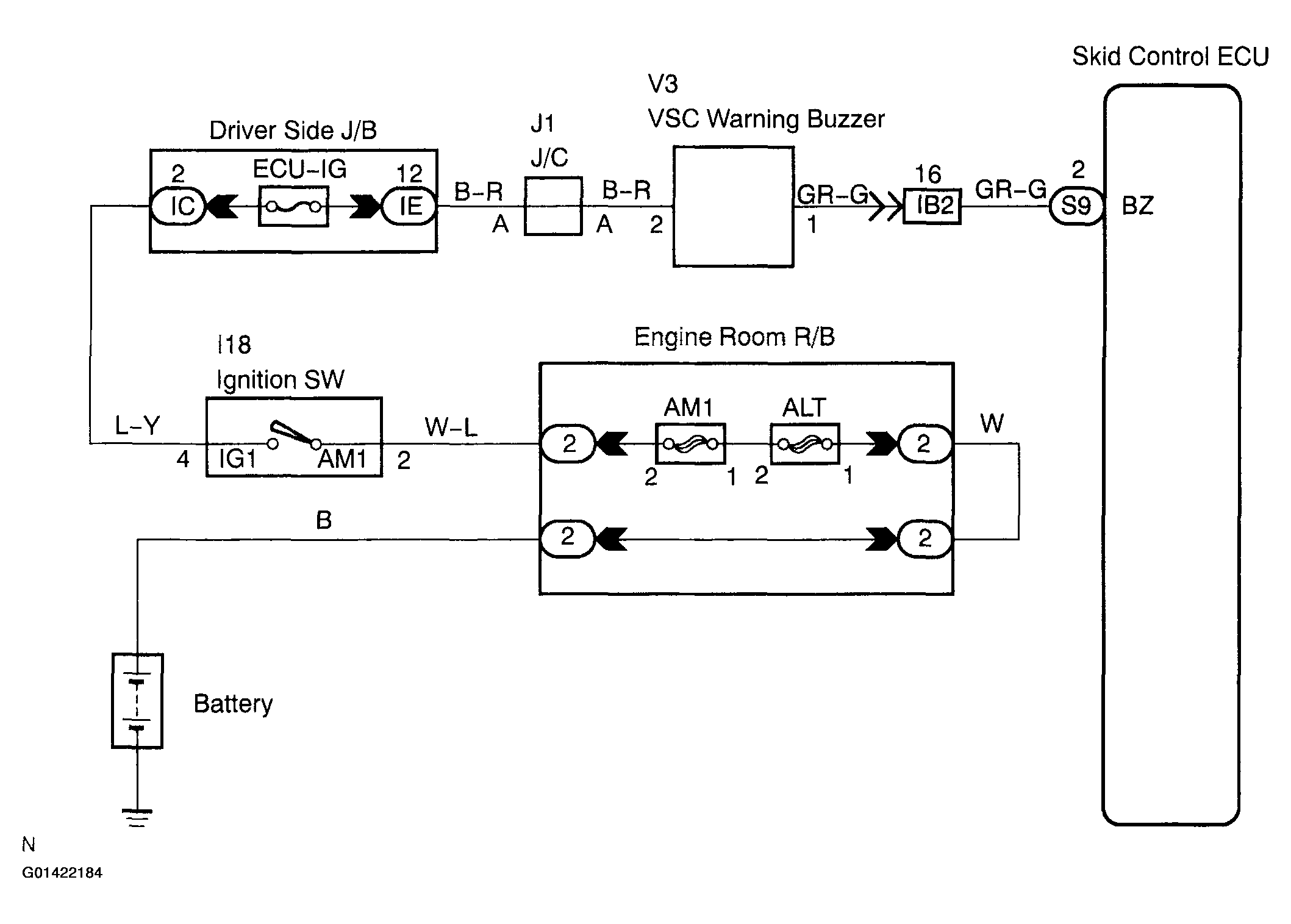

Fig 1: Skid Control Buzzer Circuit Wiring Diagram

G01422184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
