Abs With EBD & BA & TRAC & VSC System - Diagnosis: Location

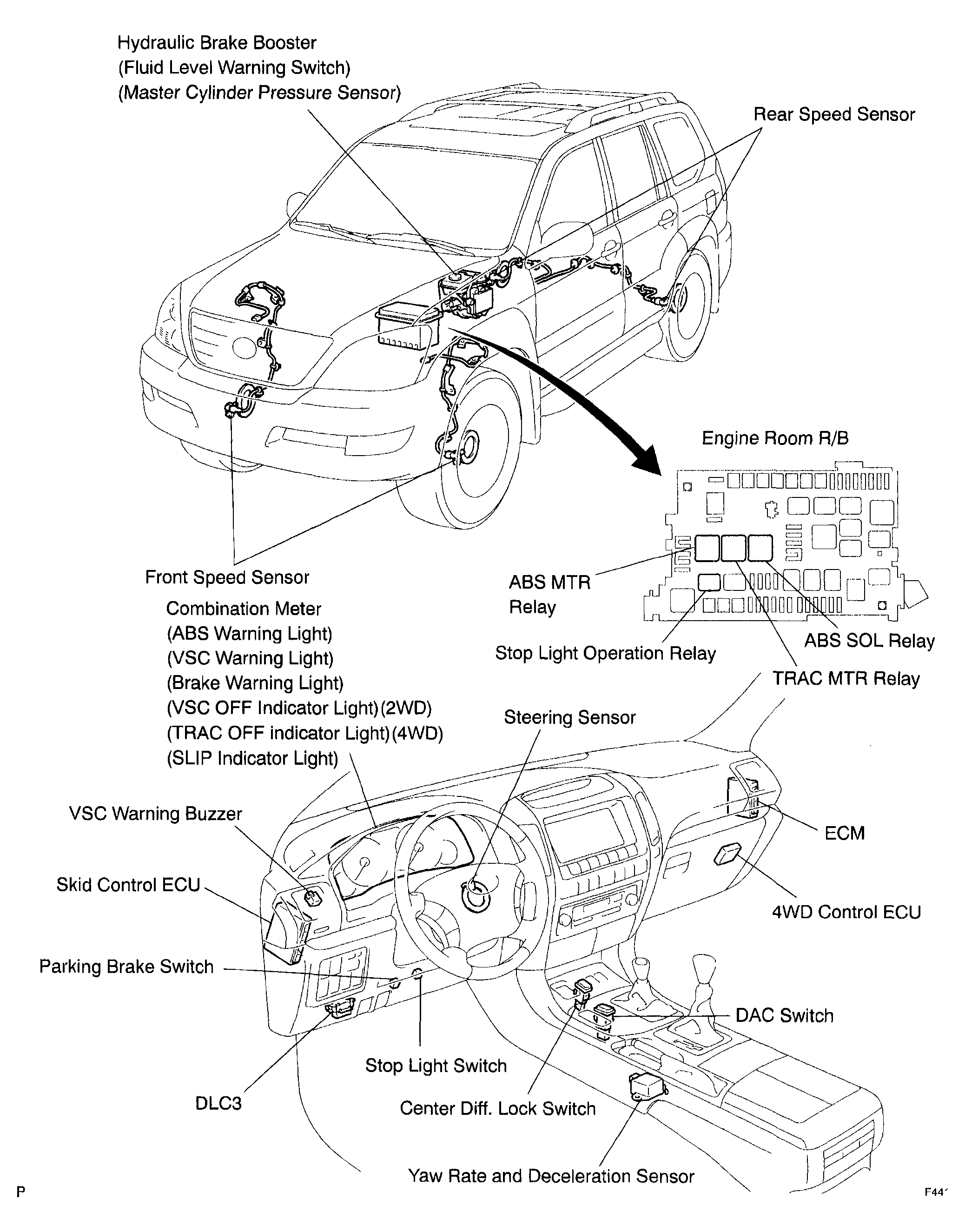

Fig 1: Identifying ABS With EBD, BA, TRAC & VSC System Components Location

G04354767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
