DTC C1380/64: Malfunction In Stop Light Operation Relay: Wiring Diagram

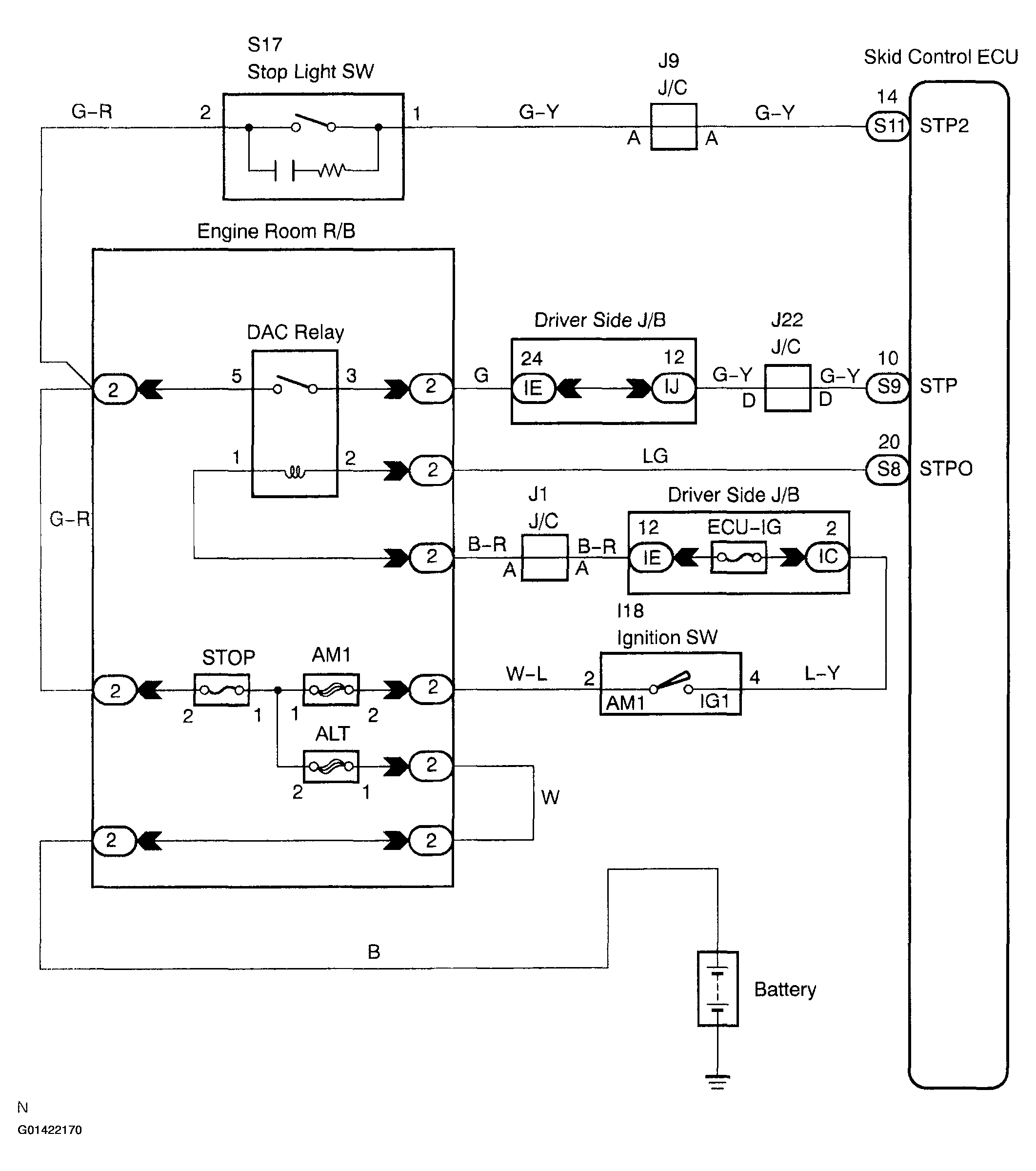

Fig 1: DTC C1380/64 Malfunction In Stop Light Operation Relay Wiring Diagram

G01422170

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
