Inspection Procedure

1. Check for open and short circuit in harness and connector of STP2 input circuit (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

1. Check that the stop light lights up when brake pedal is depressed and turns OFF when the brake pedal is released.

1. NG: REPAIR OR REPLACE STOP LIGHT SWITCH ASSY OR HARNESS AND CONNECTOR
2. OK: GO TO NEXT STEP.

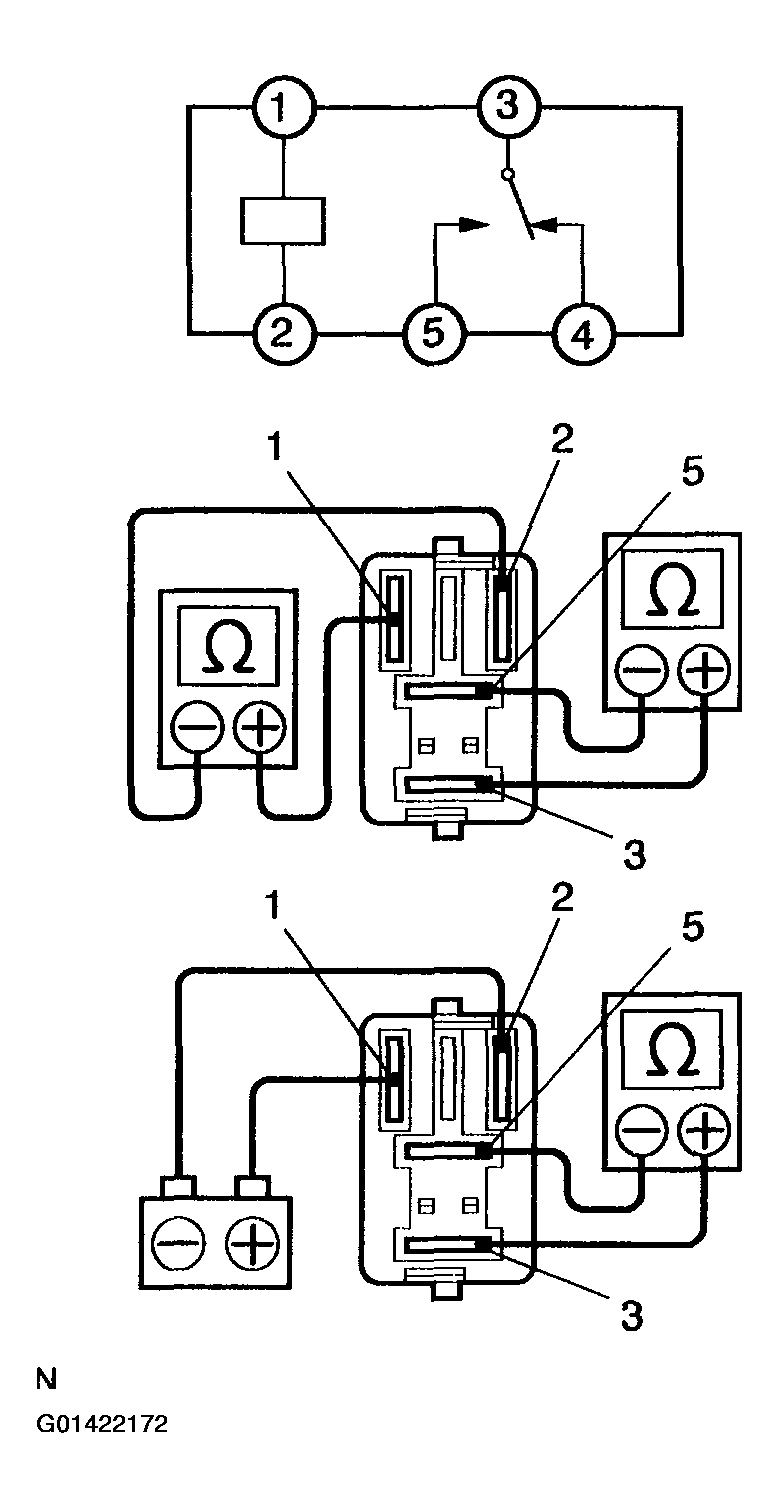

1. Check continuity between each terminal of stop light operation relay.

   OK:

   Fig 1: Terminal Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage between terminal 1 and 2.
3. Check continuity between terminal 3 and 5 of stop light operation relay.

   OK:

   Terminal 3 and 5 Continuity

   Fig 2: Checking Stop Light Operation Relay Continuity

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPLACE STOP LIGHT OPERATION RELAY
   2. OK: GO TO NEXT STEP.

Check for open and short circuit in harness and connector of STPO output circuit (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

1. NG: REPAIR OR REPLACE HARBESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

CHECK AND REPLACE SKID CONTROL ECU ASSY
