DTC C1340/47: Center Deferential Lock Circuit: Wiring Diagram

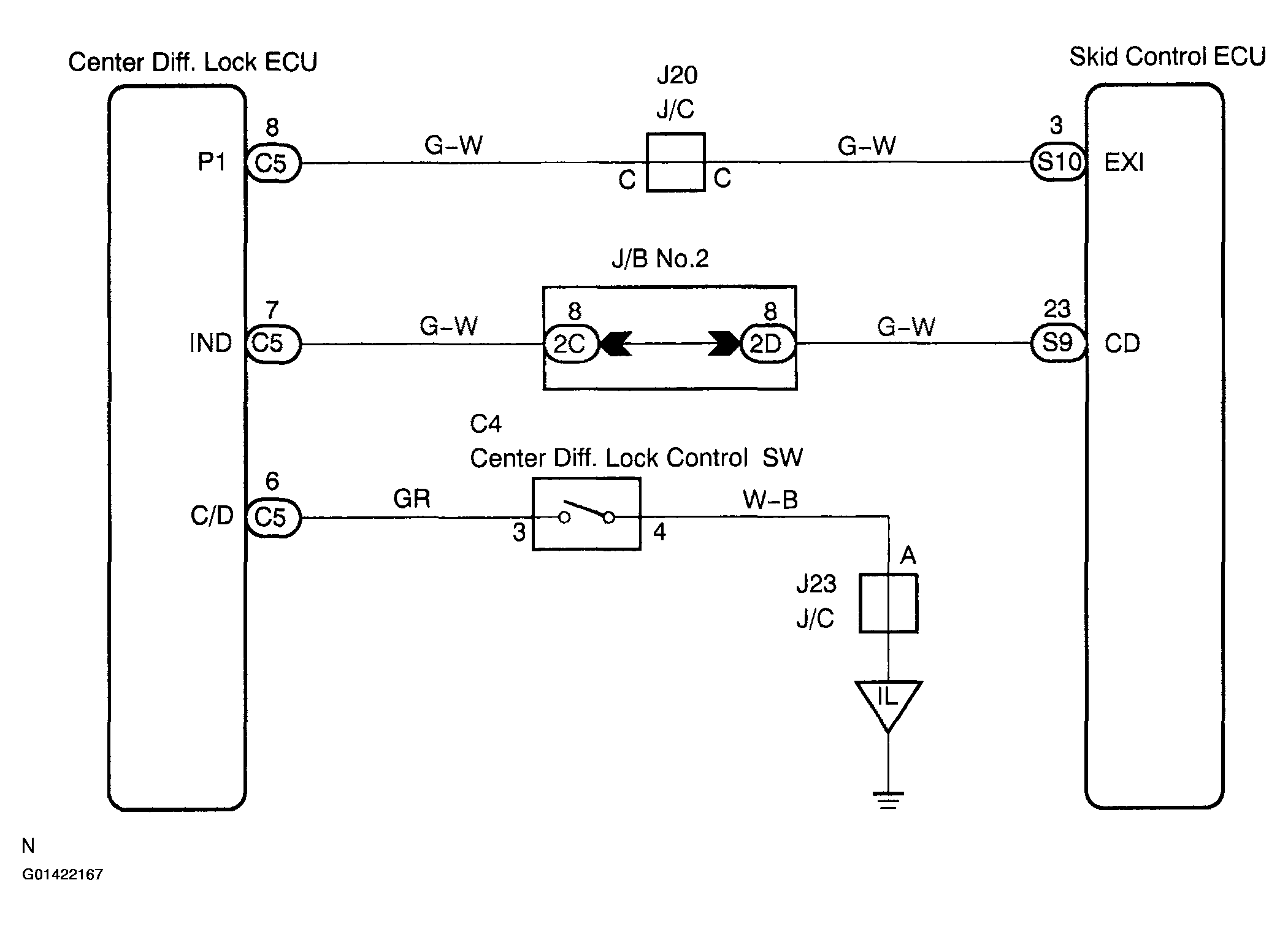

Fig 1: DTC C1340/47 Center Deferential Lock Circuit Wiring Diagram

G01422167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
