DTC C1268/68: Transfer L4 Position Switch Circuit: Wiring Diagram

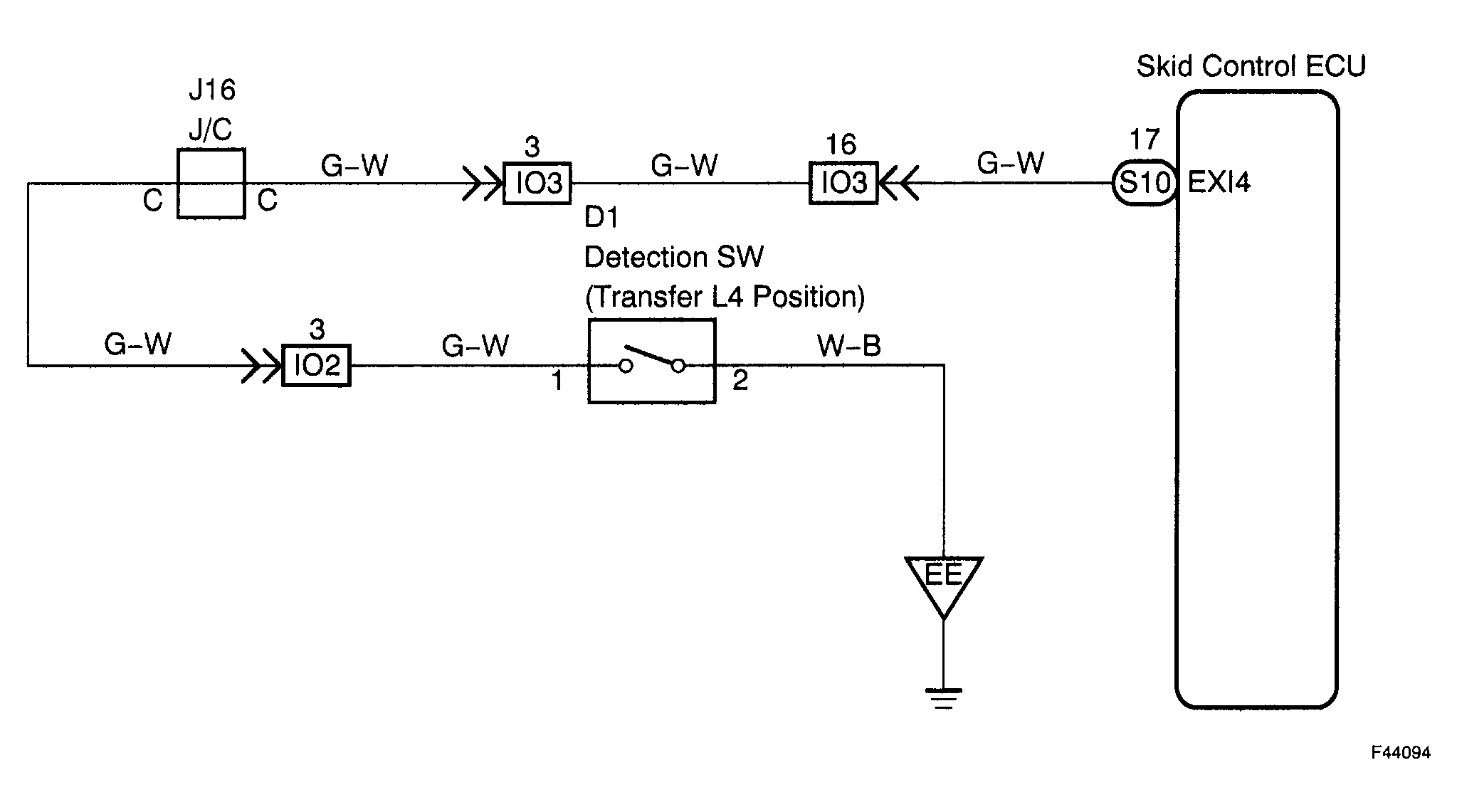

Fig 1: Transfer L4 Position Switch Circuit - Wiring Diagram

G04354828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
