DTC C1256/56: Accumulator Low Pressure: Wiring Diagram

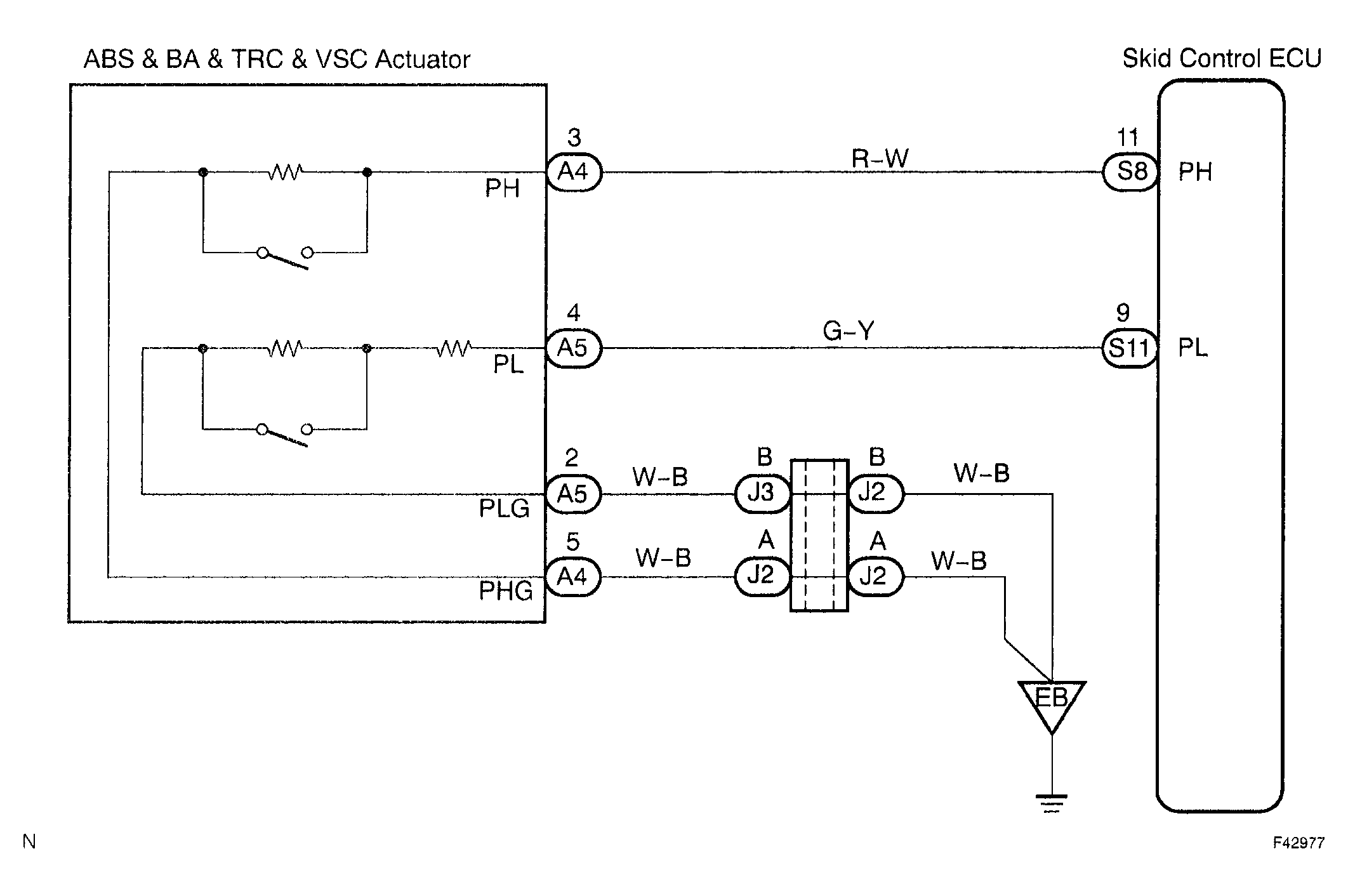

Fig 1: Accumulator Low Pressure - Wiring Diagram

G04354823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
