DTC C1254/54: Pressure Switch Circuit: Wiring Diagram

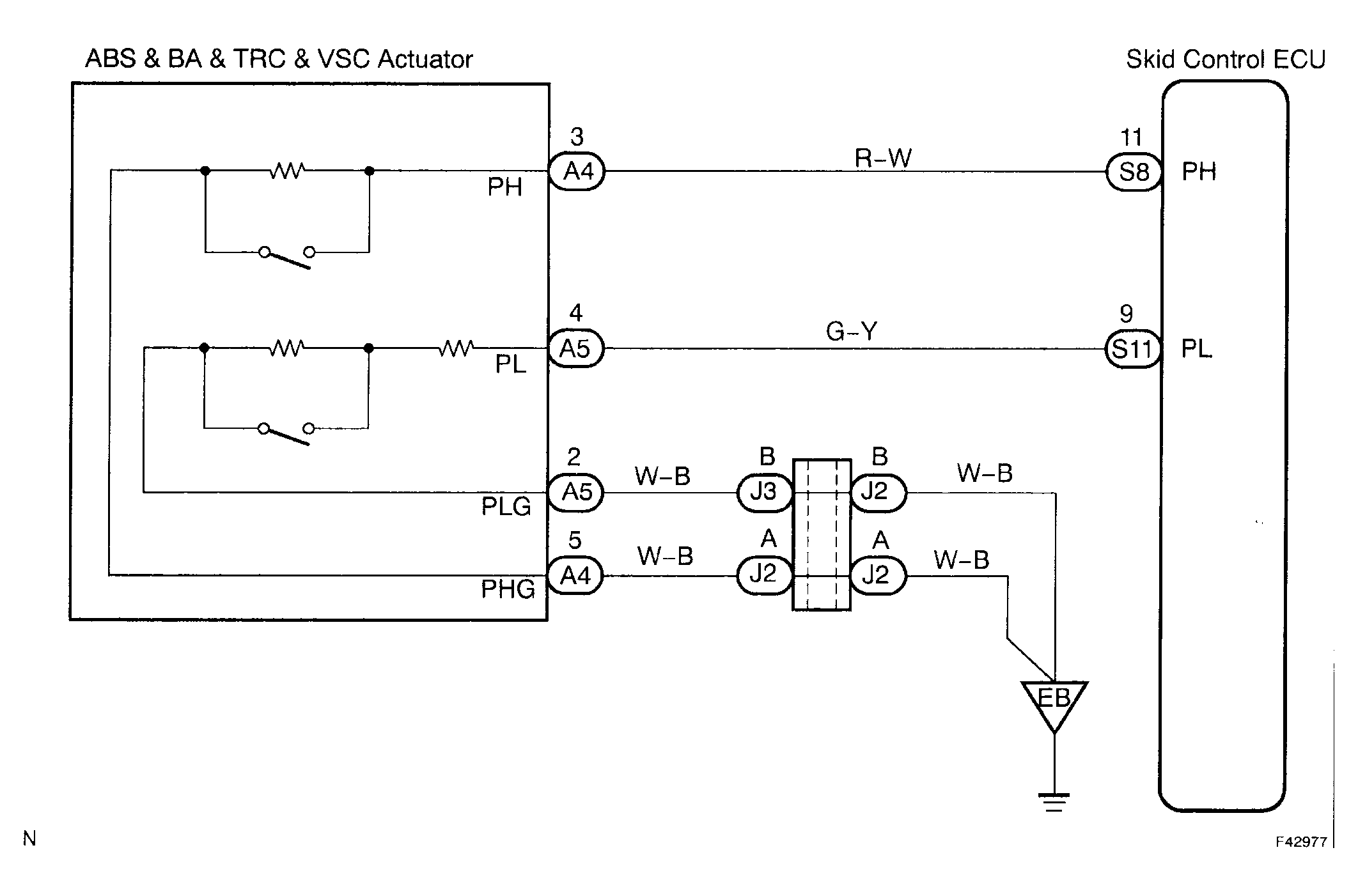

Fig 1: Pressure Switch Circuit - Wiring Diagram

G04354820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
