DTC C1251/51, C1252/52, C1253/53: Pump Motor Is Locked/Open Circuit In Pump Motor Ground; Brake Booster Pump Motor On Time Abnormally Long; Brake Booster Pump Motor Circuit: Wiring Diagram

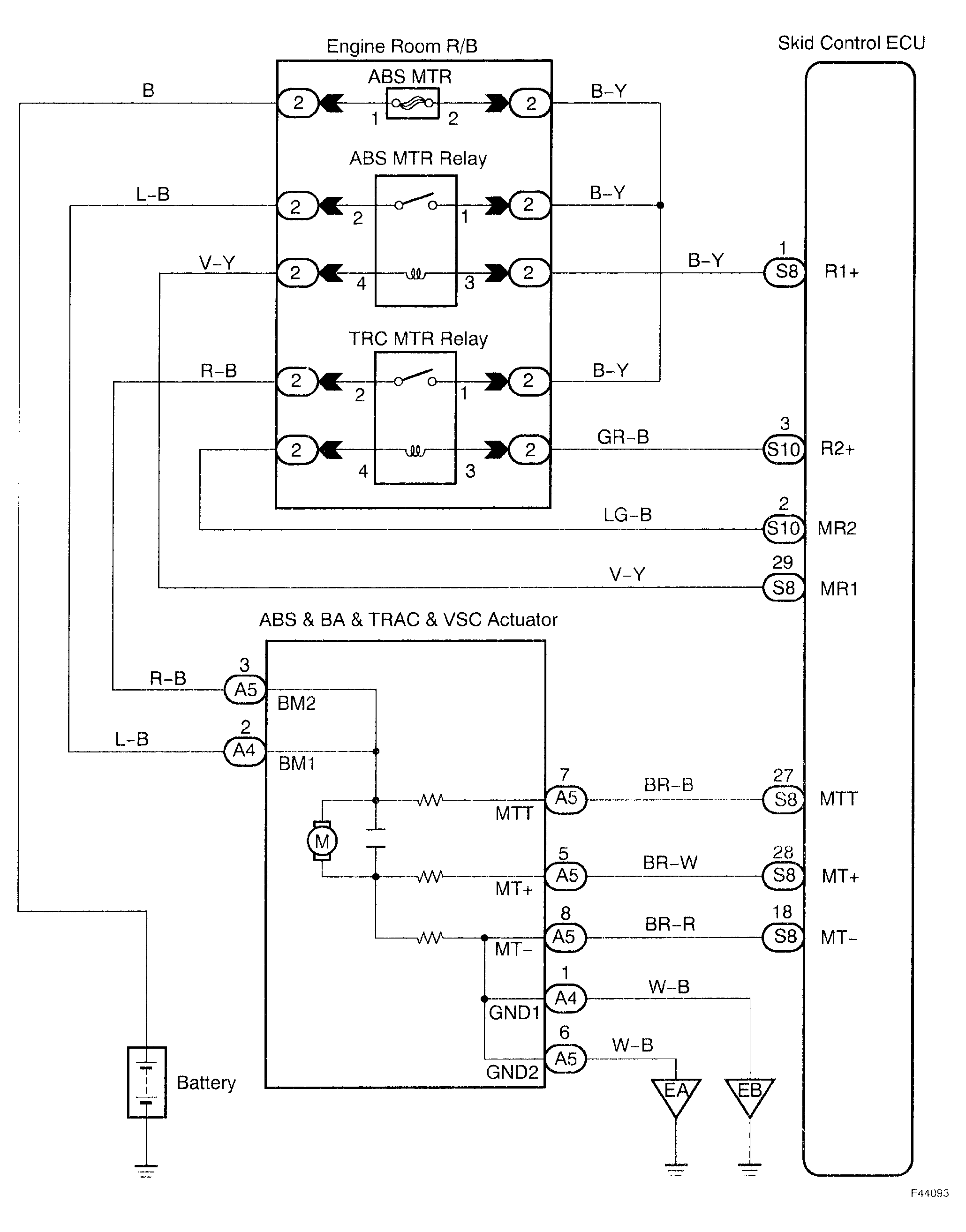

Fig 1: Pump Motor Is Locked/Open Circuit In Pump Motor Ground - Wiring Diagram
