DTC C1249/49: Stop Light Switch Circuit: Wiring Diagram

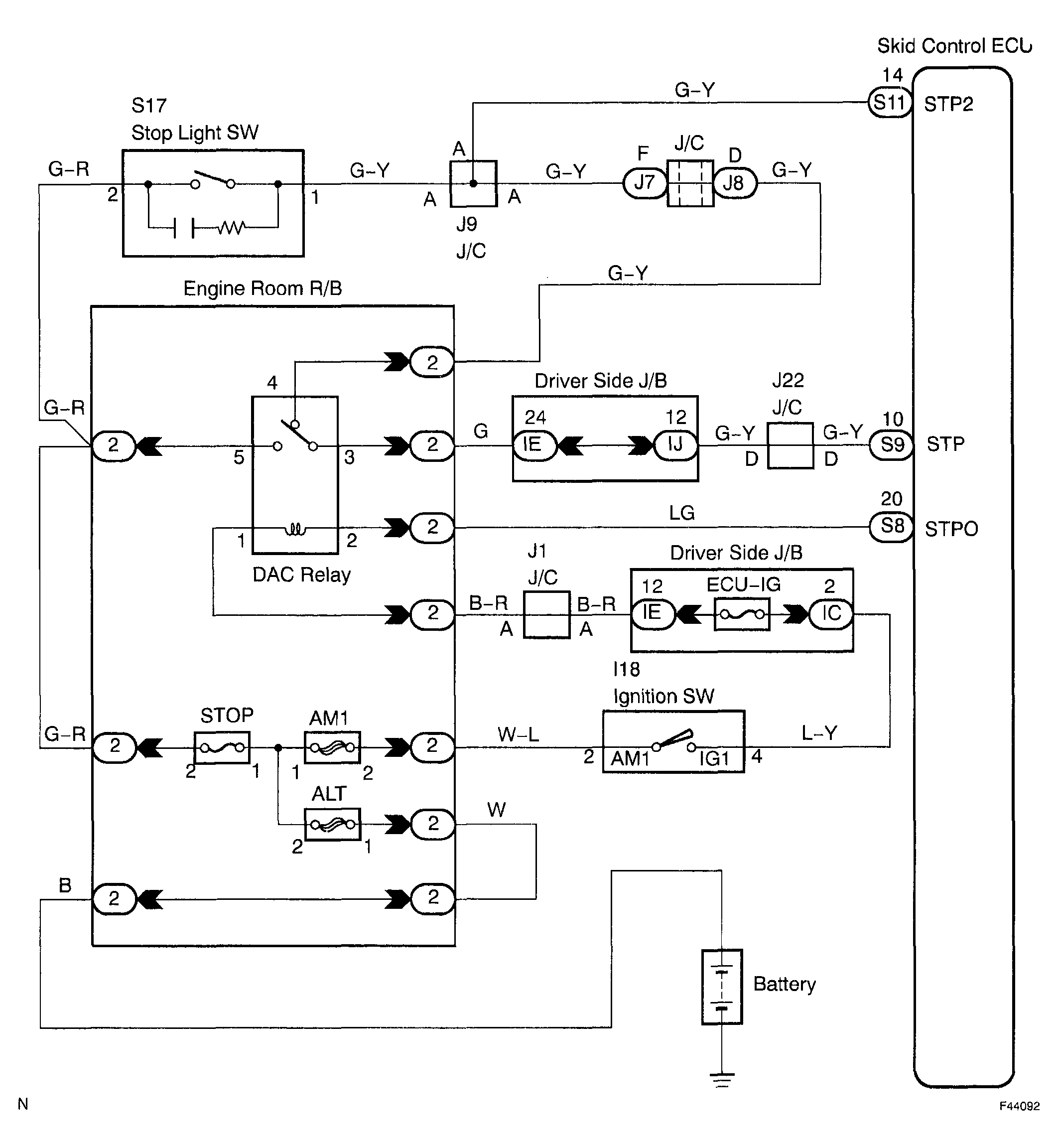

Fig 1: Stop Light Switch Circuit - Wiring Diagram

G04354812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
