DTC C1246/46: Master Cylinder Pressure Sensor Circuit: Wiring Diagram

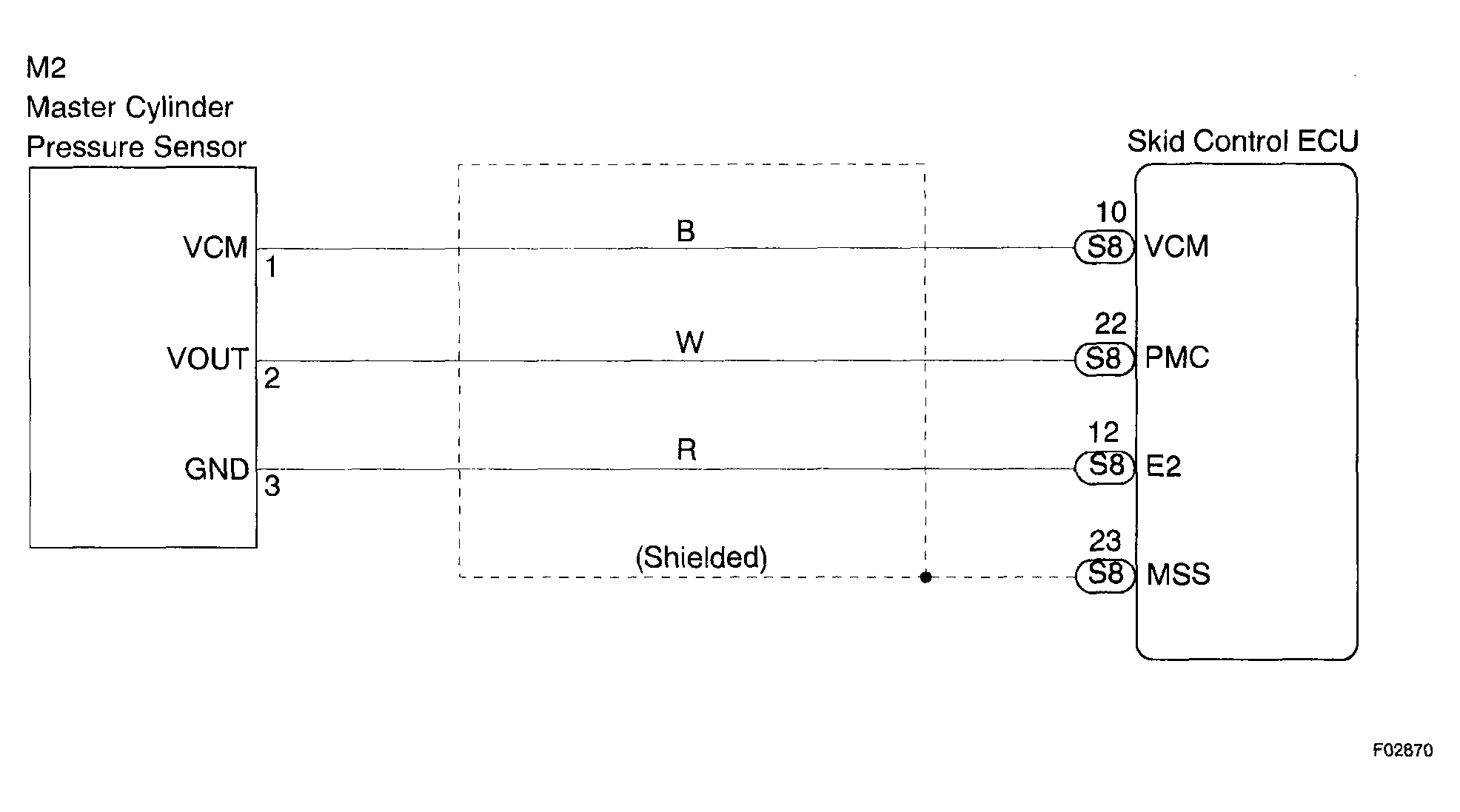

Fig 1: Master Cylinder Pressure Sensor Circuit - Wiring Diagram

G04354809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
