DTC C1233/33, C1234/34: Yaw Rate Sensor Circuit; Malfunction In Yaw Rate Sensor: Wiring Diagram

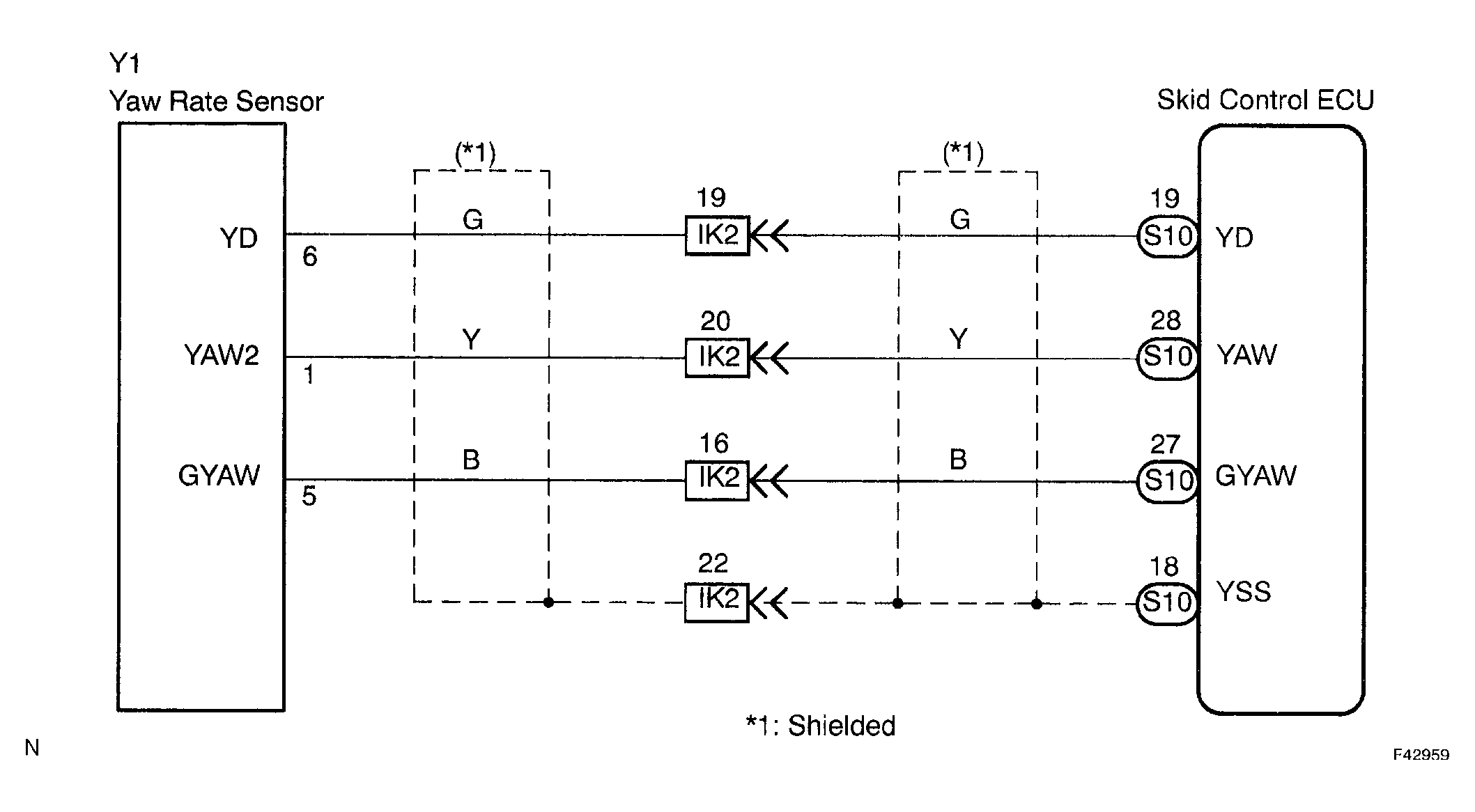

Fig 1: Yaw Rate Sensor Circuit - Wiring Diagram

G04354797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
