DTC C1231/31, C1335/35: Steering Angle Sensor Circuit; Steering Angle Sensor Circuit: Wiring Diagram

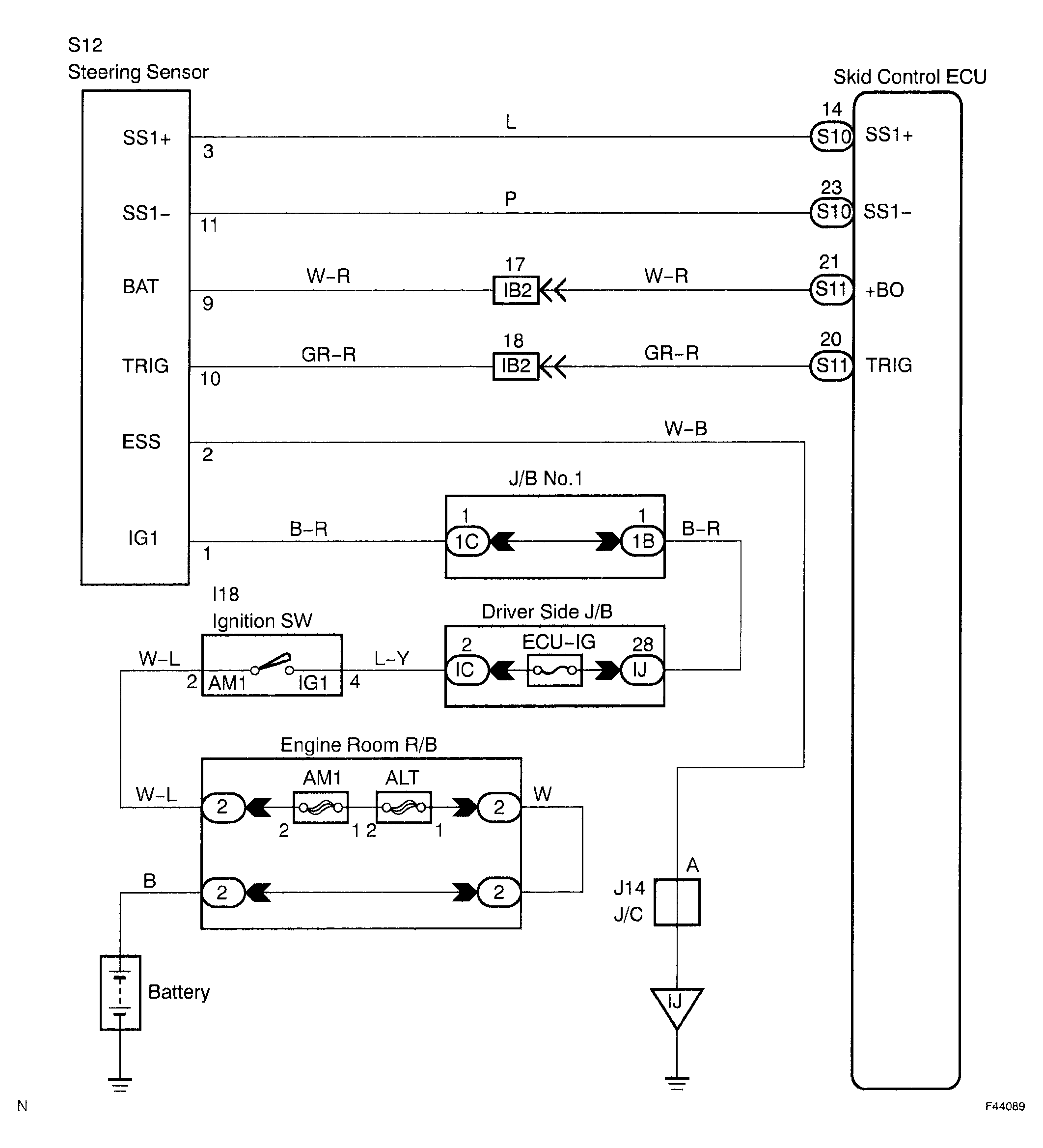

Fig 1: Steering Angle Sensor Circuit - Wiring Diagram
G04354789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
