DTC C0278/11, C0279/12: Open Circuit In Abs Solenoid Relay Circuit; Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

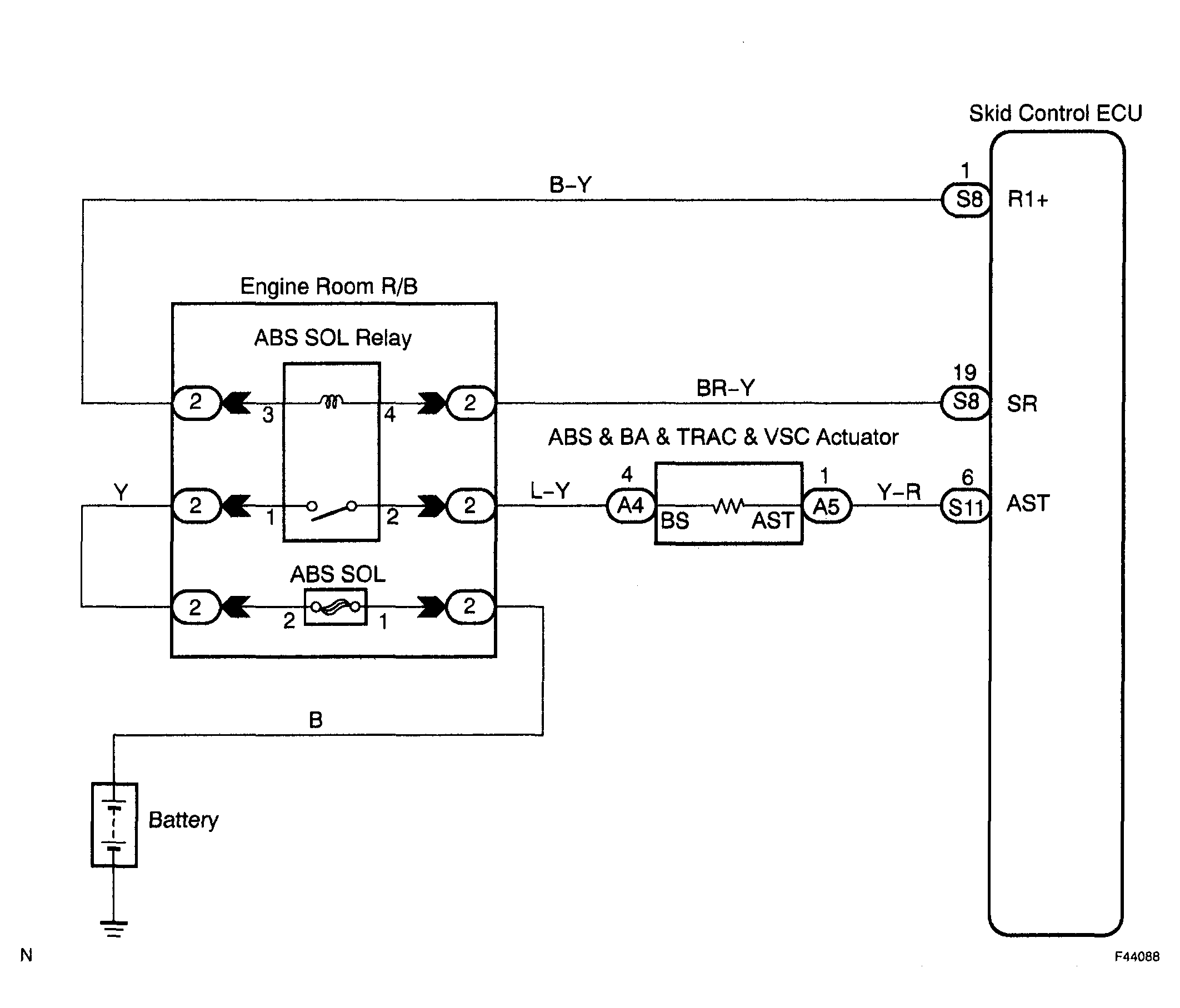

Fig 1: Open Circuit In ABS Solenoid Relay Circuit - Wiring Diagram
G04354780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
