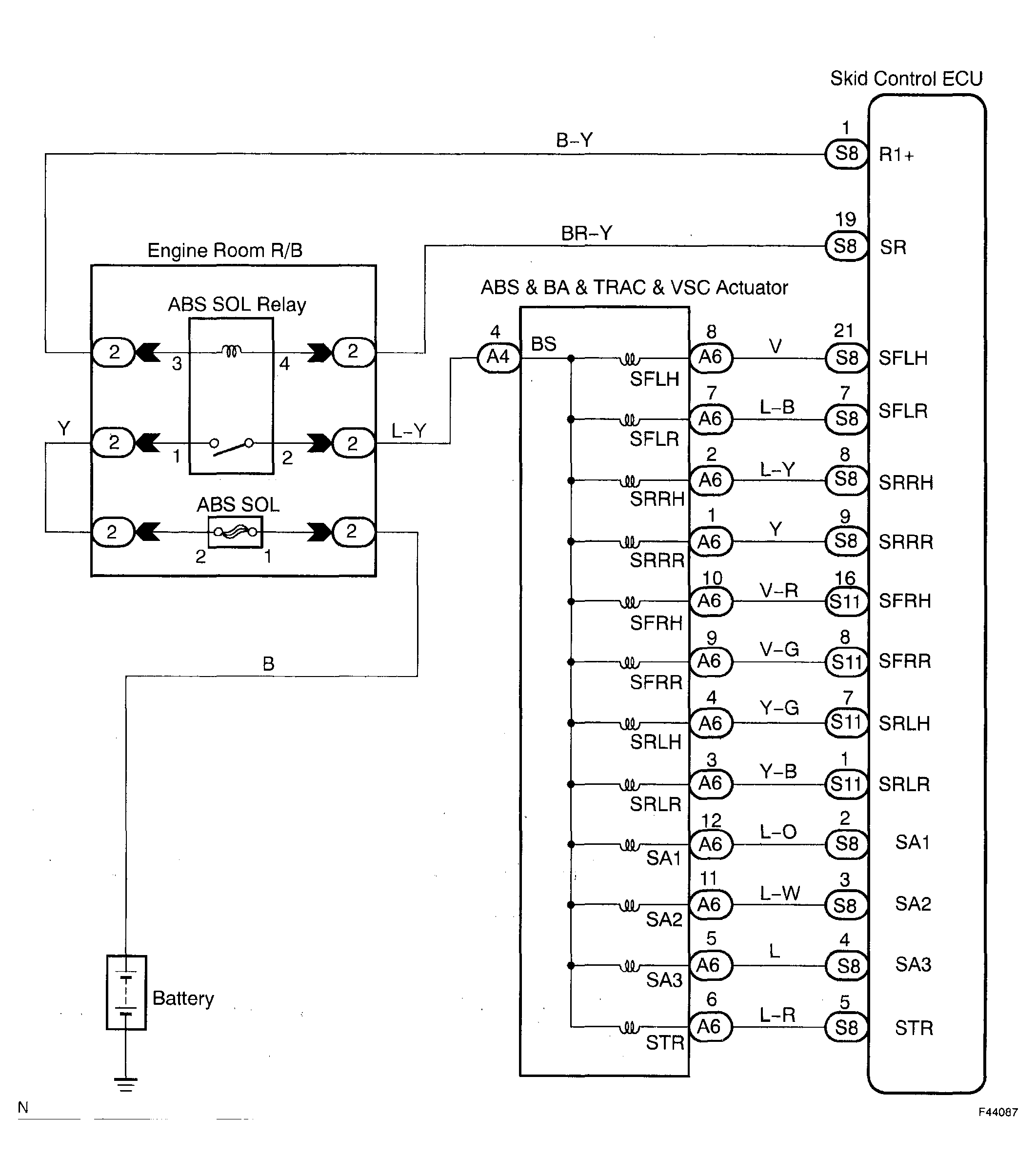

DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25, C1226/26, C1227/27, C1228/28: SFR Solenoid Circuit; SFL Solenoid Circuit; SRR Solenoid Circuit; SRL Solenoid Circuit; SMC Solenoid Circuit (SA1); SPC Solenoid Circuit (SA2); SRC Solenoid Circuit (SA3); STR Solenoid Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
