DTC Always On Malfunction In Ecu (VSC Warning Light): Wiring Diagram

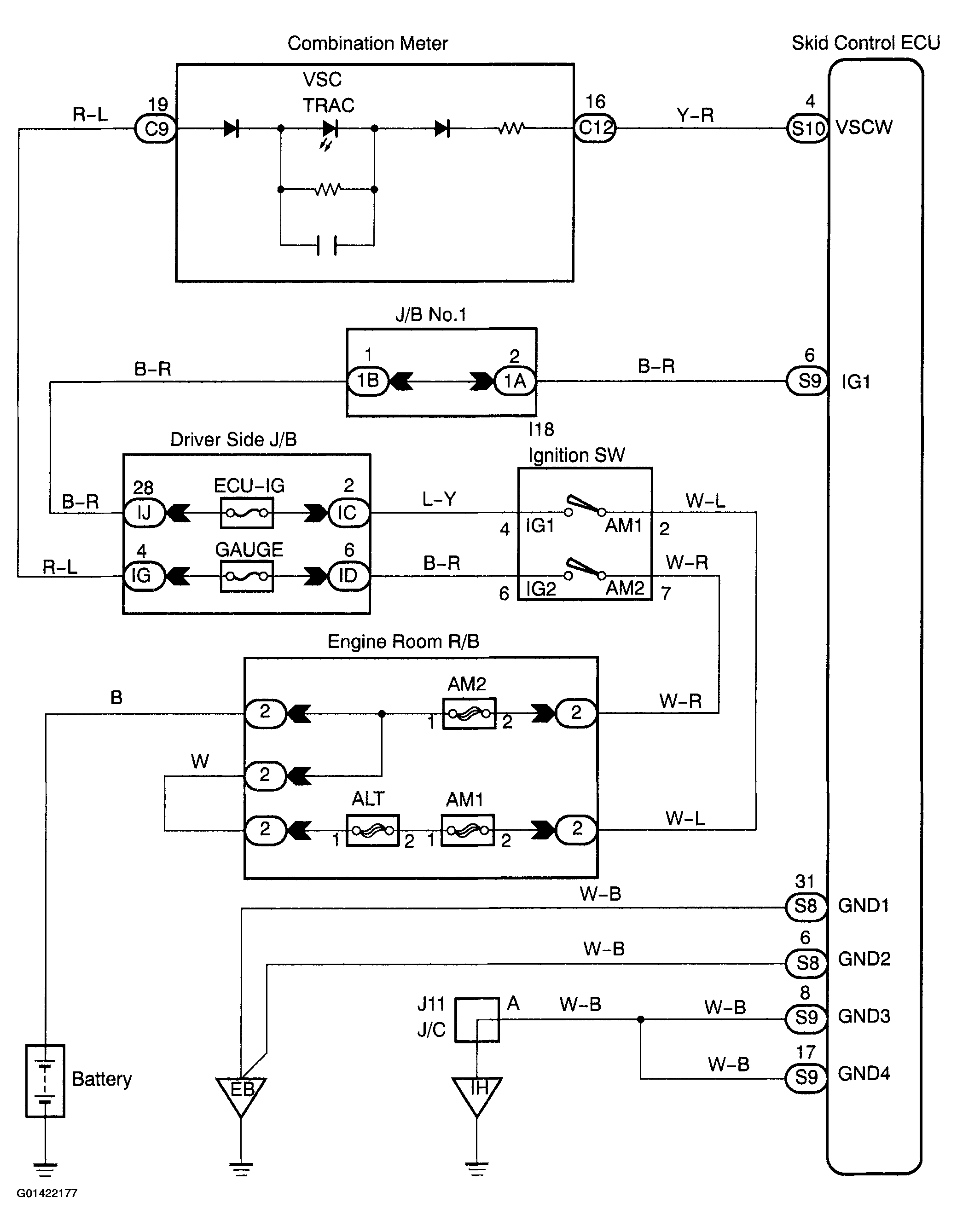

Fig 1: DTC Always on Malfunction In ECU (VSC Warning Light) Wiring Diagram

G01422177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
