Brake Warning Light Circuit: Wiring Diagram

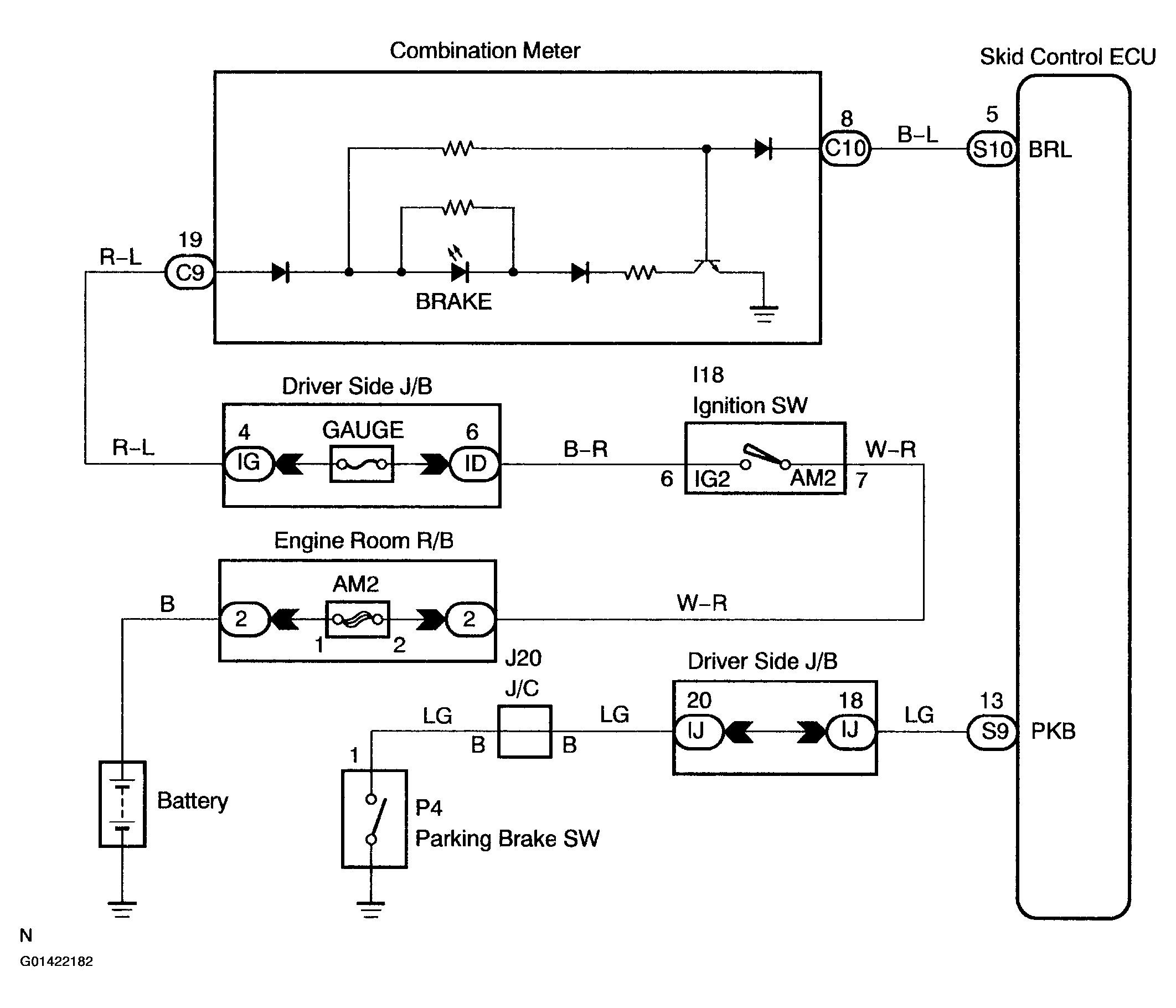

Fig 1: Brake Warning Light Circuit Wiring Diagram

G01422182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
