Inspection Procedure

INSPECT THERMISTOR ASSY
1. Remove cooler (ambient temp. sensor) thermistor.
2. Measure resistance between terminals 1 and 2 of cooler (ambient temp. sensor) thermistor connector at each temperature.
  Resistance:

  at 0°C (0°F): 9.097 - 9.701 kΩ

  at 25°C (77°F): 2.725 - 2.865 kΩ

  HINT:

  As the temperature increases, the resistance decreases.

  Fig 1: Inspecting Thermistor Assy Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Resistance:

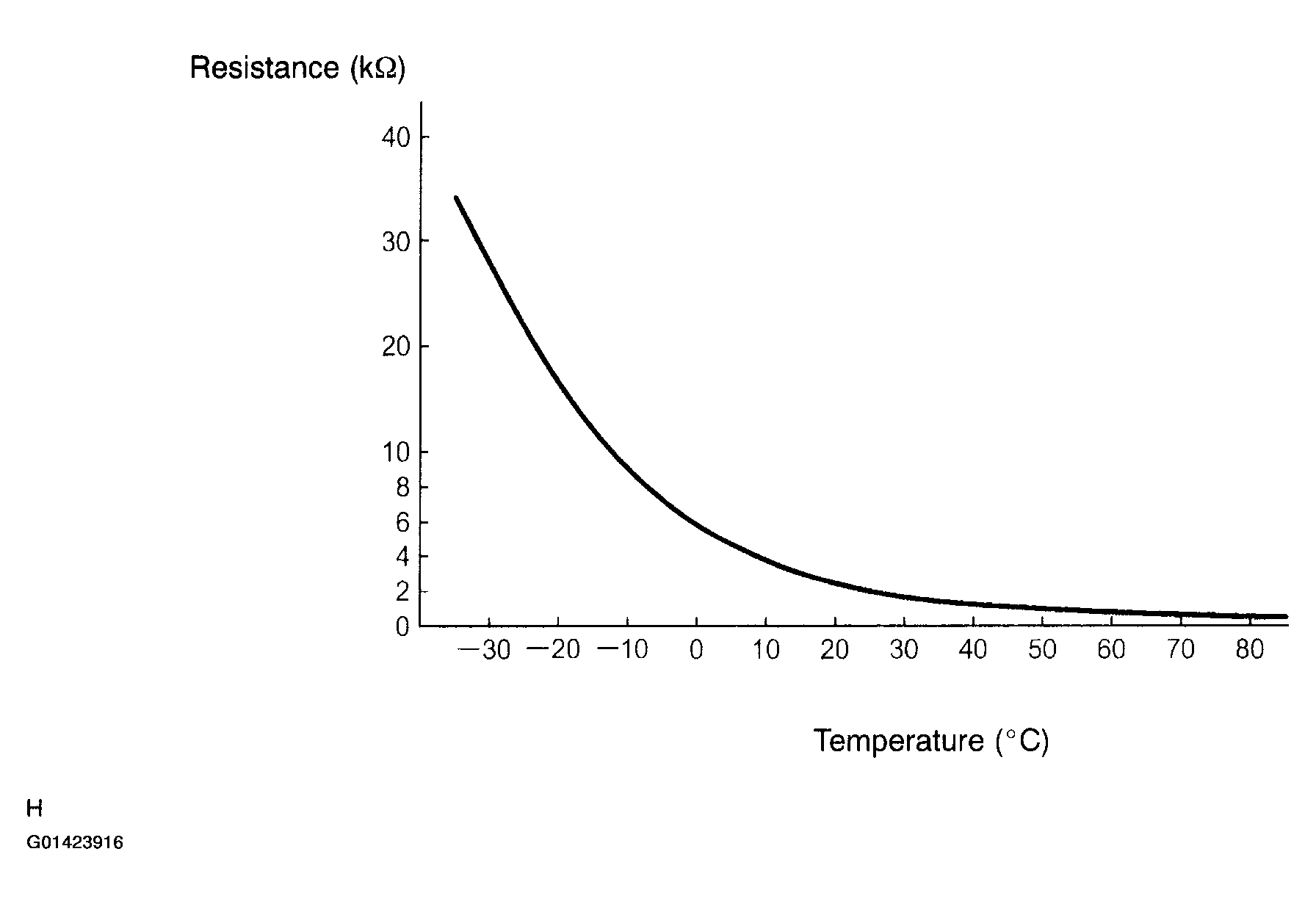

  Fig 2: Resistance Temperature Graph
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE THERMISTOR ASSY
2. OK: GO TO NEXT STEP.
CHECK HARNESS OR CONNECTOR
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.
  CHECK AND REPLACE ACCESSORY METER ASSY
