Combination Meter ASSY

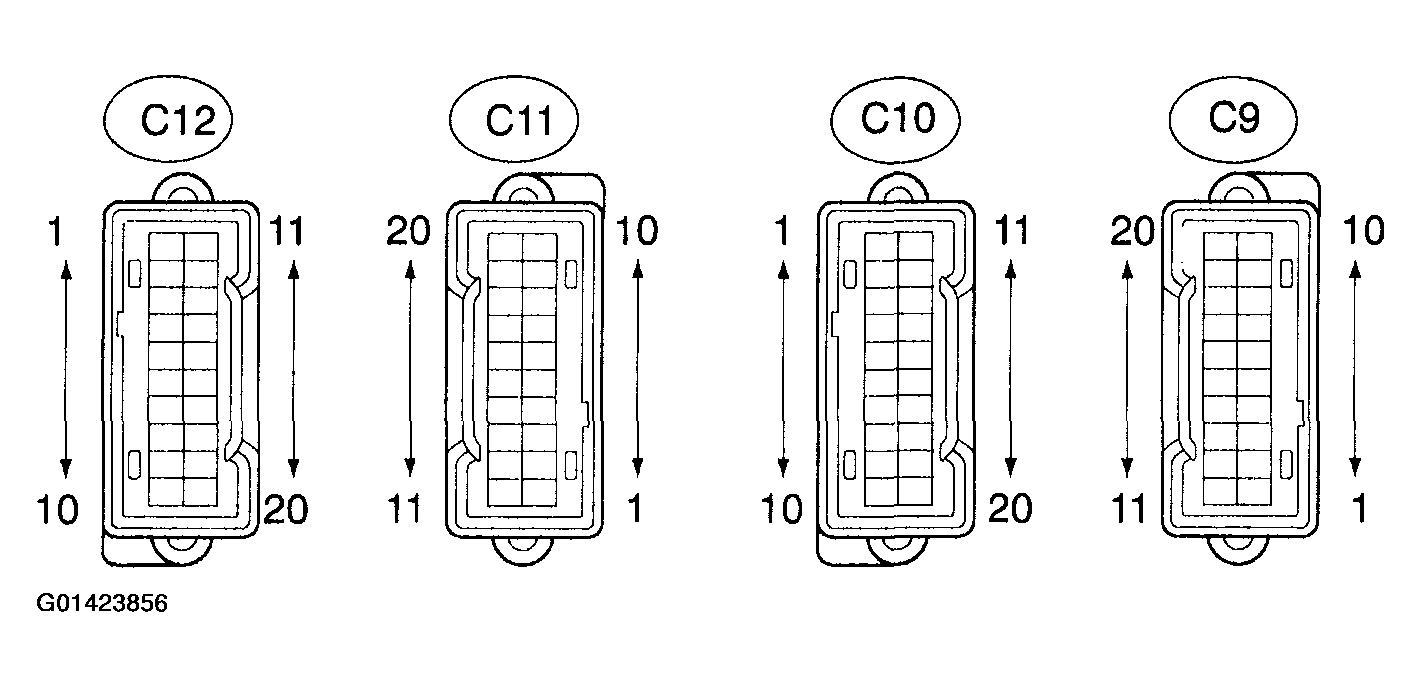

Fig 1: Identifying Combination Meter Assy ECU Terminals

G01423856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

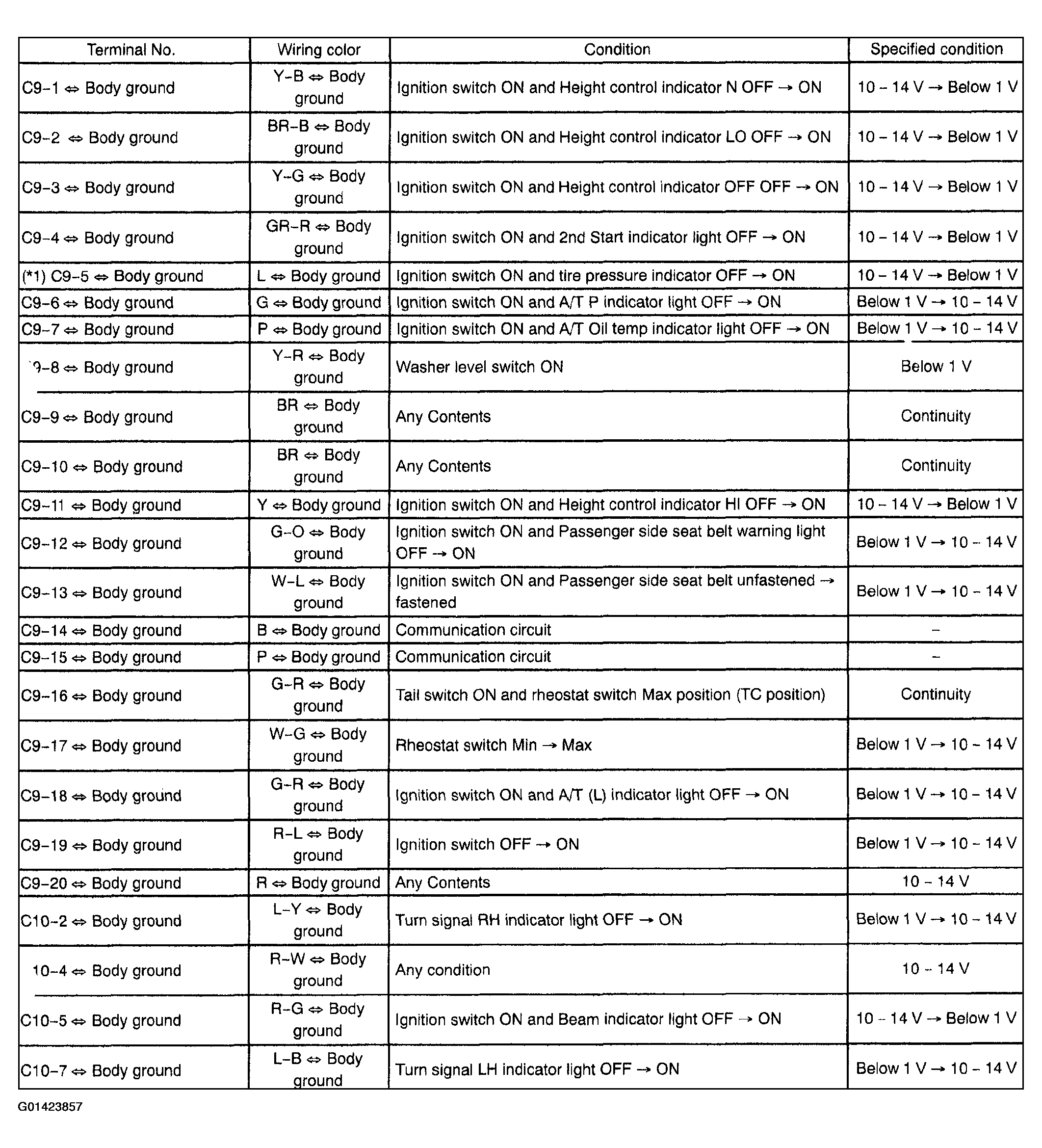

Fig 2: ECU Terminals Reference Chart (1 Of 3)

G01423857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

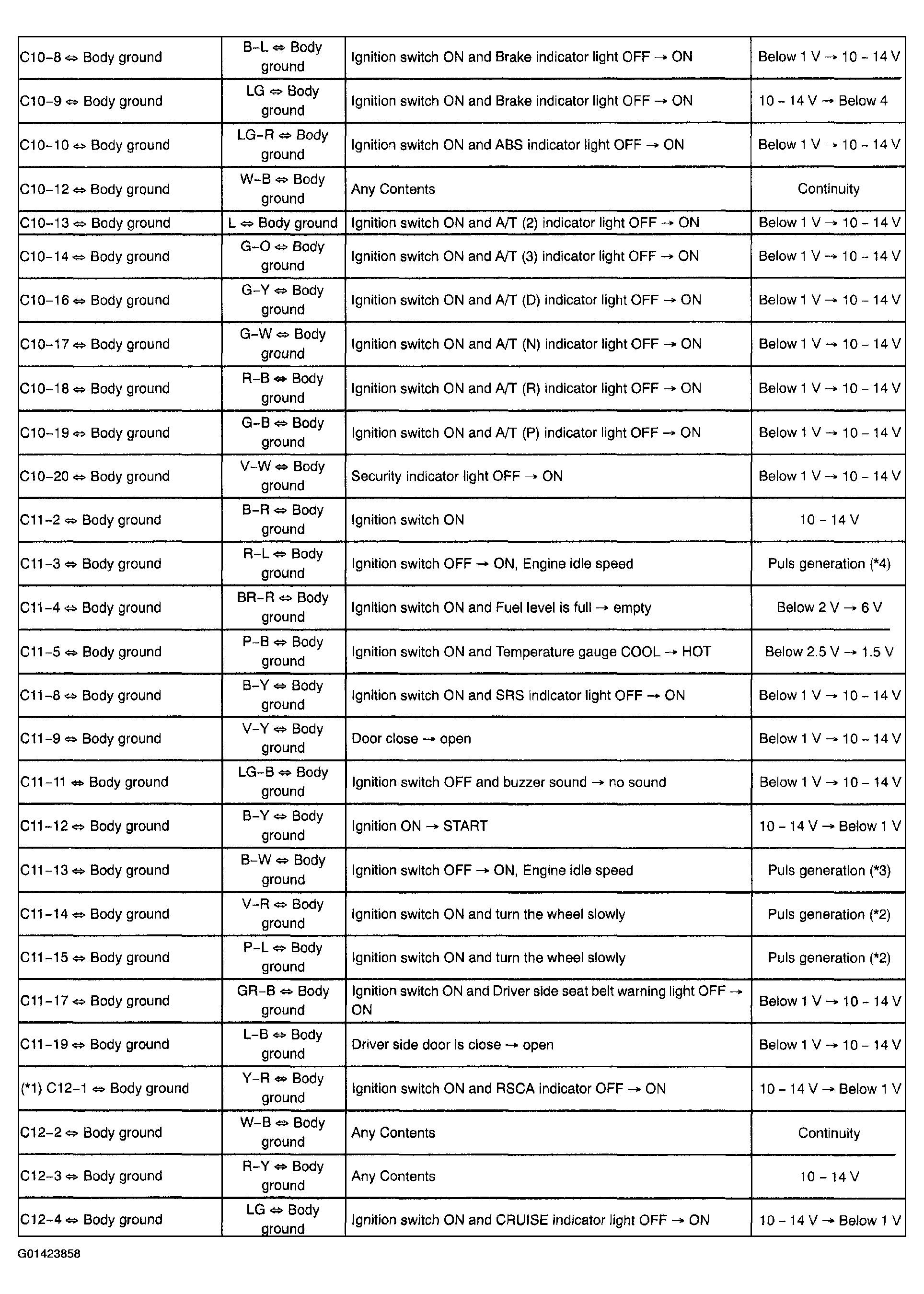

Fig 3: ECU Terminals Reference Chart (2 Of 3)

G01423858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

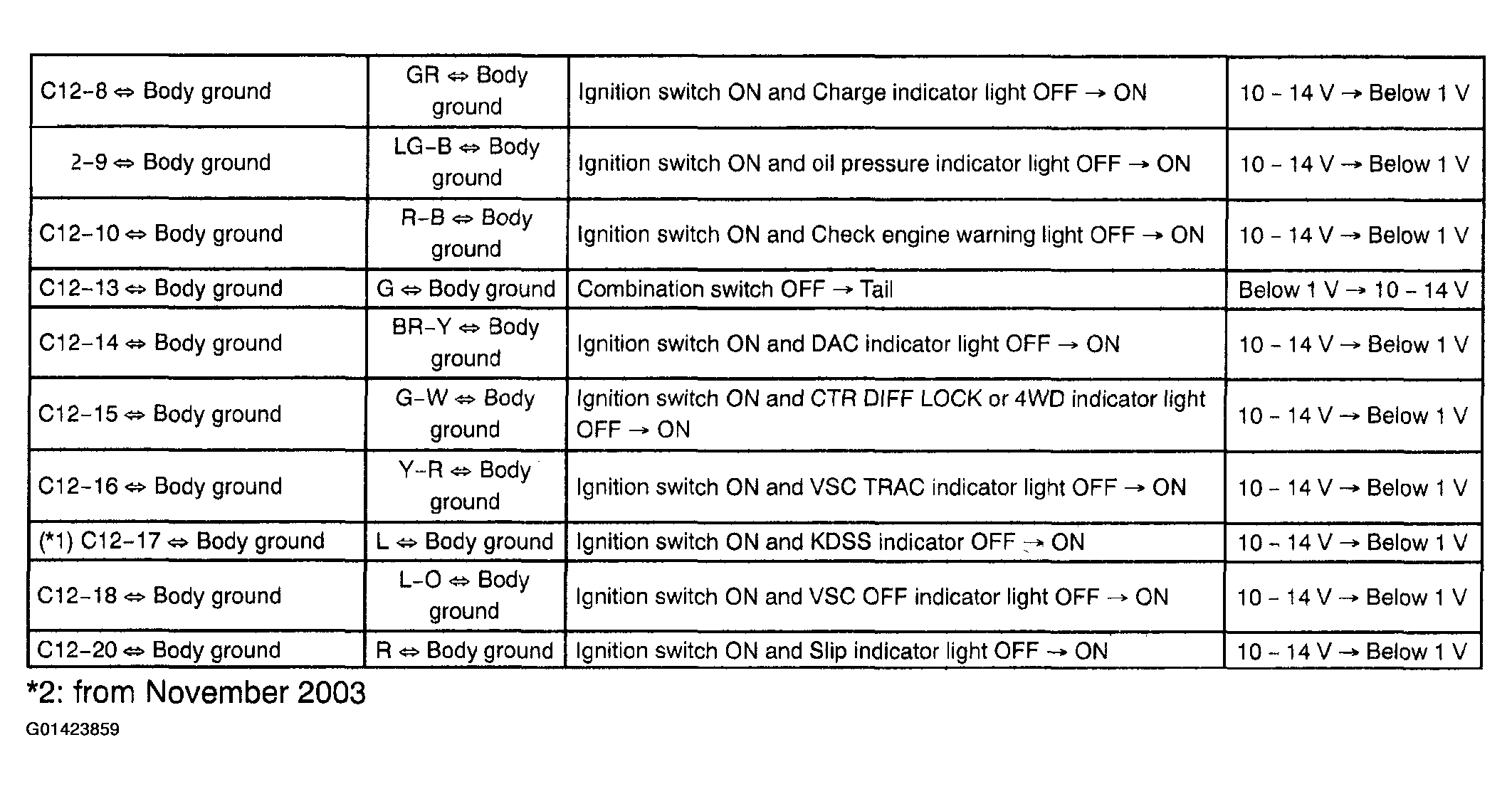

Fig 4: ECU Terminals Reference Chart (3 Of 3)

G01423859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*2: Reference: Using oscilloscope:

Fig 5: Item Contents Chart

G01423860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Oscilloscope Waveform

G01423861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*3: Reference: Using oscilloscope:

Fig 7: Item Contents Chart

G01423862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Oscilloscope Waveform

G01423863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*4: Reference: Using oscilloscope:

Fig 9: Item Contents Chart

G01423864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Oscilloscope Waveform

G01423865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
