Combination Meter - Diagnosis
>>
Terminals Of Ecu
>>
Accessory Meter
Accessory Meter

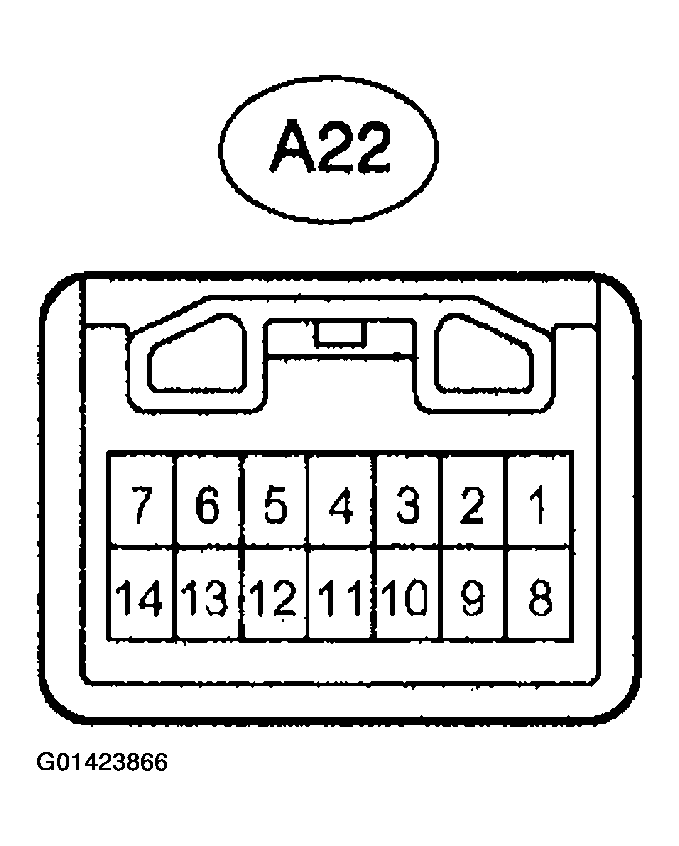

Fig 1: Identifying Accessory Meter (A22) Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

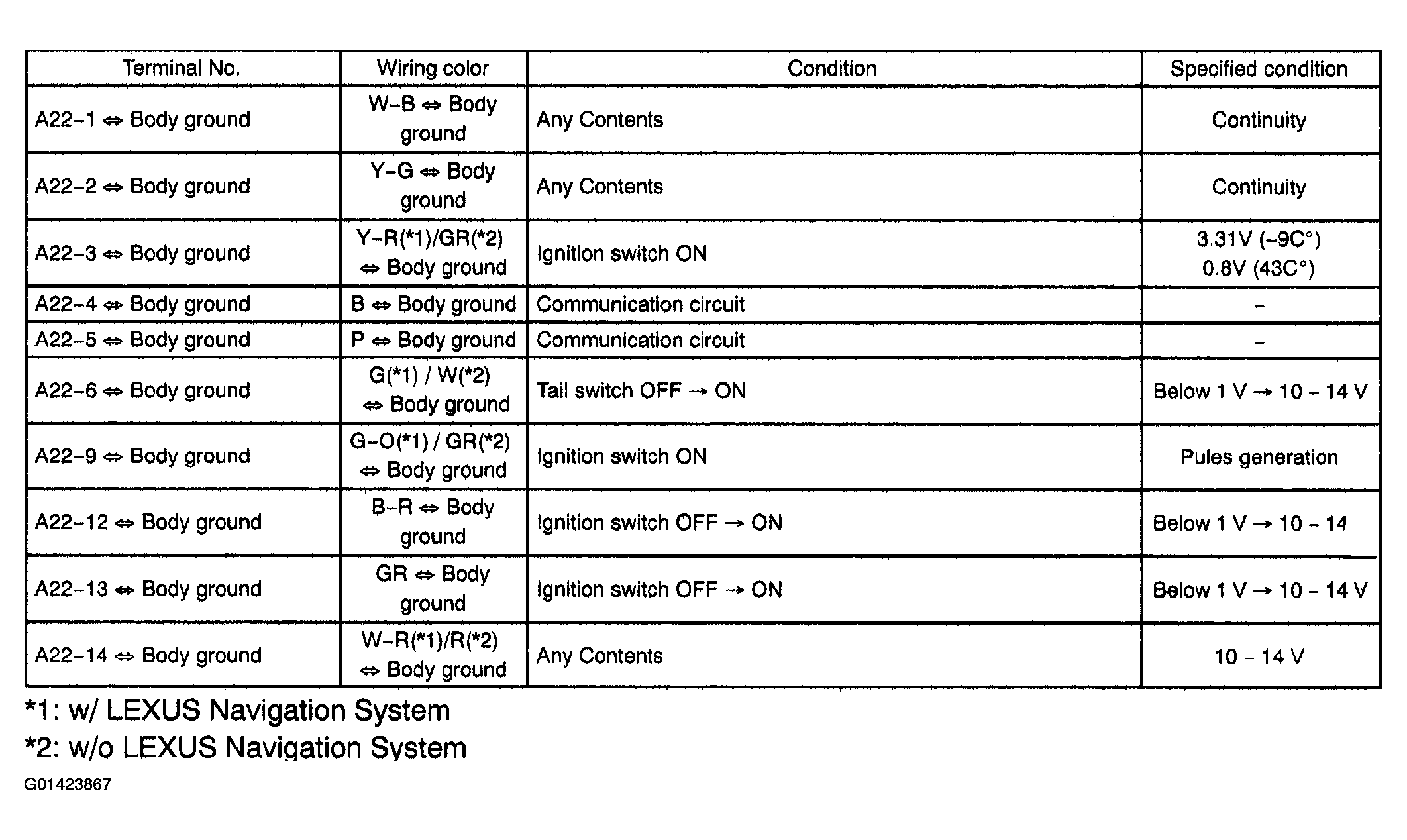

Fig 2: Accessory Meter (A22) Connector Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
