Inspection Procedure

CHECK COMBINATION METER ASSY
1. Remove the combination meter assy.
2. Driver sits on the seat.
3. Check the continuity between the terminal C11-17 of combination meter connector and body ground.
  Standard:

  Fig 1: Terminals Continuity Reference Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

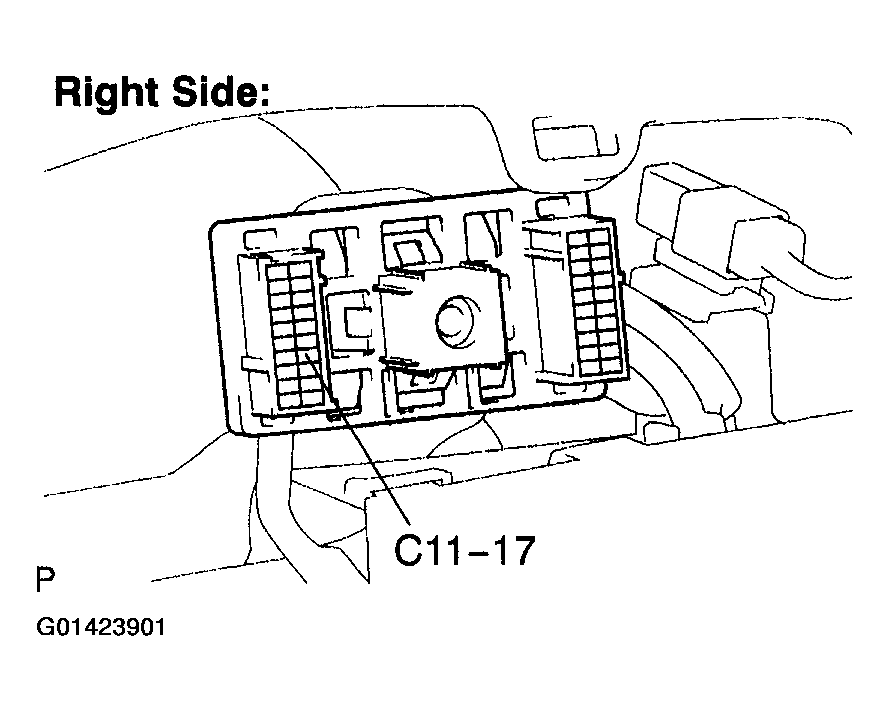

  Fig 2: Checking Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: CHECK AND REPLACE COMBINATION METER ASSY
2. NG: GO TO NEXT STEP.
INSPECT FRONT SEAT INNER BELT ASSY
1. Check resistance.
  1. Driver sits on the seat.
  2. Check resistance between terminals 3 and 6 of front seat inner belt assy.
    Standard:

    Fig 3: Terminals Resistance Reference Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 4: Inspecting Front Seat Inner Belt Assy Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE FRONT SEAT INNER BELT ASSY
2. OK: GO TO NEXT STEP.
  REPAIR OR REPLACE HARNESS OR CONNECTOR
