Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

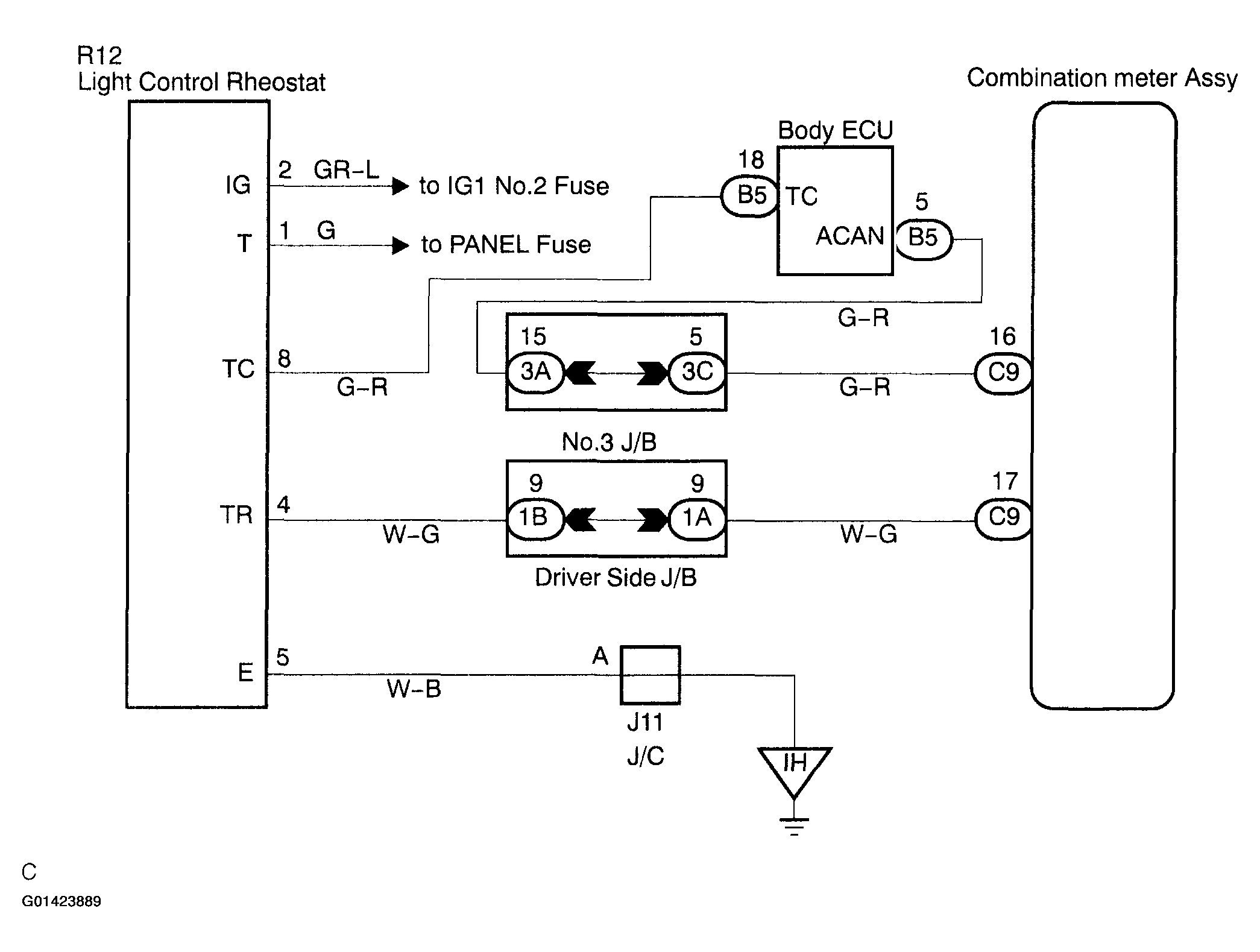

Fig 1: Operating Light Control Rheostat Does Not Change Light Brightness - Wiring Diagram
G01423889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
