Malfunction In Tachometer: Wiring Diagram

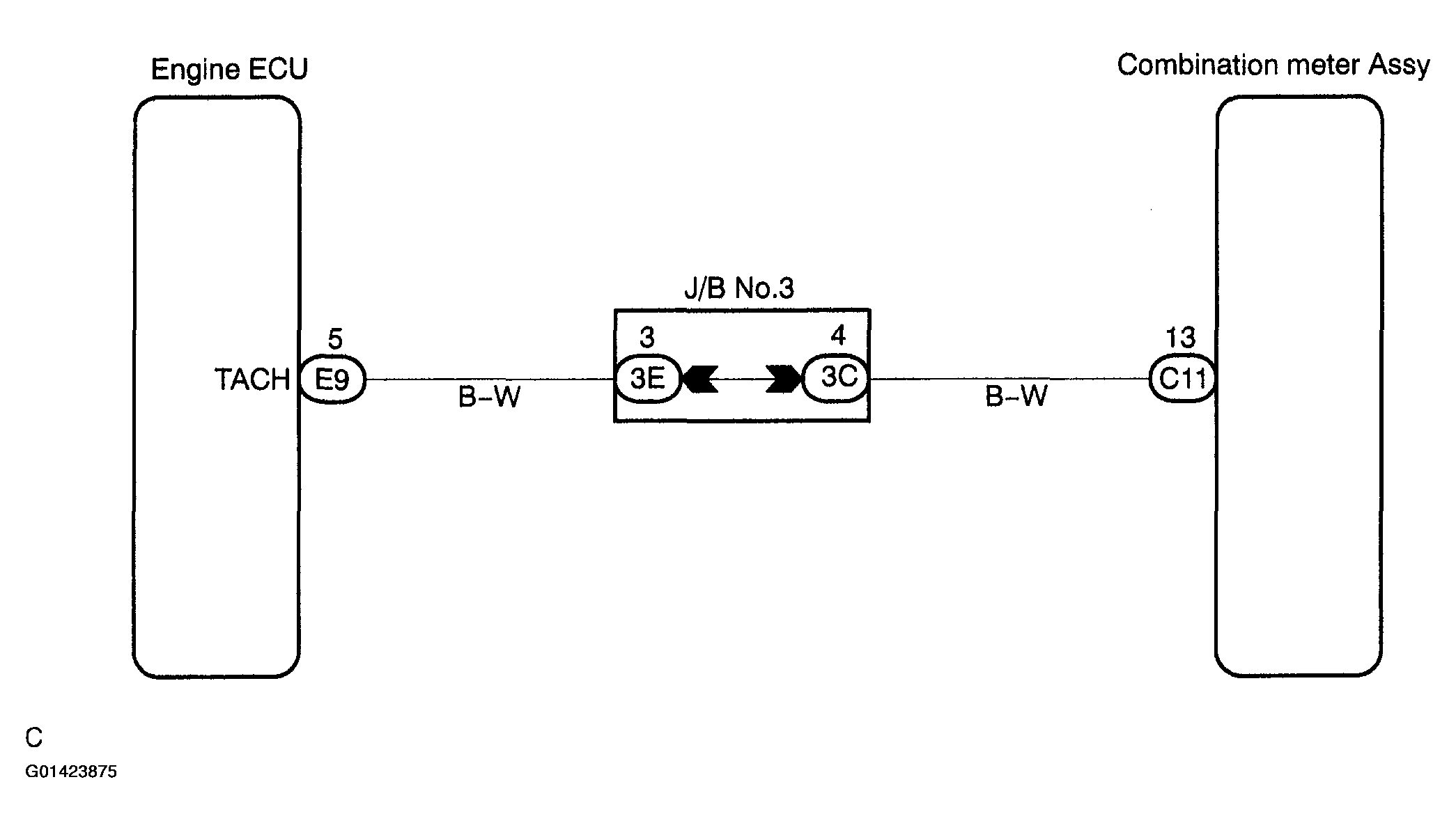

Fig 1: Malfunction In Tachometer - Wiring Diagram

G01423875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
