Inspection Procedure

(REFERENCE) INSPECTION USING OSCILLOSCOPE

1. Check the input signal waveform.
   1. Remove the combination meter assy.
   2. Connect the oscilloscope to the terminal C11-15 and C9-9 of combination meter assy.
   3. Start the engine.
   4. Check the signal waveform.
      Fig 1: Item Contents Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

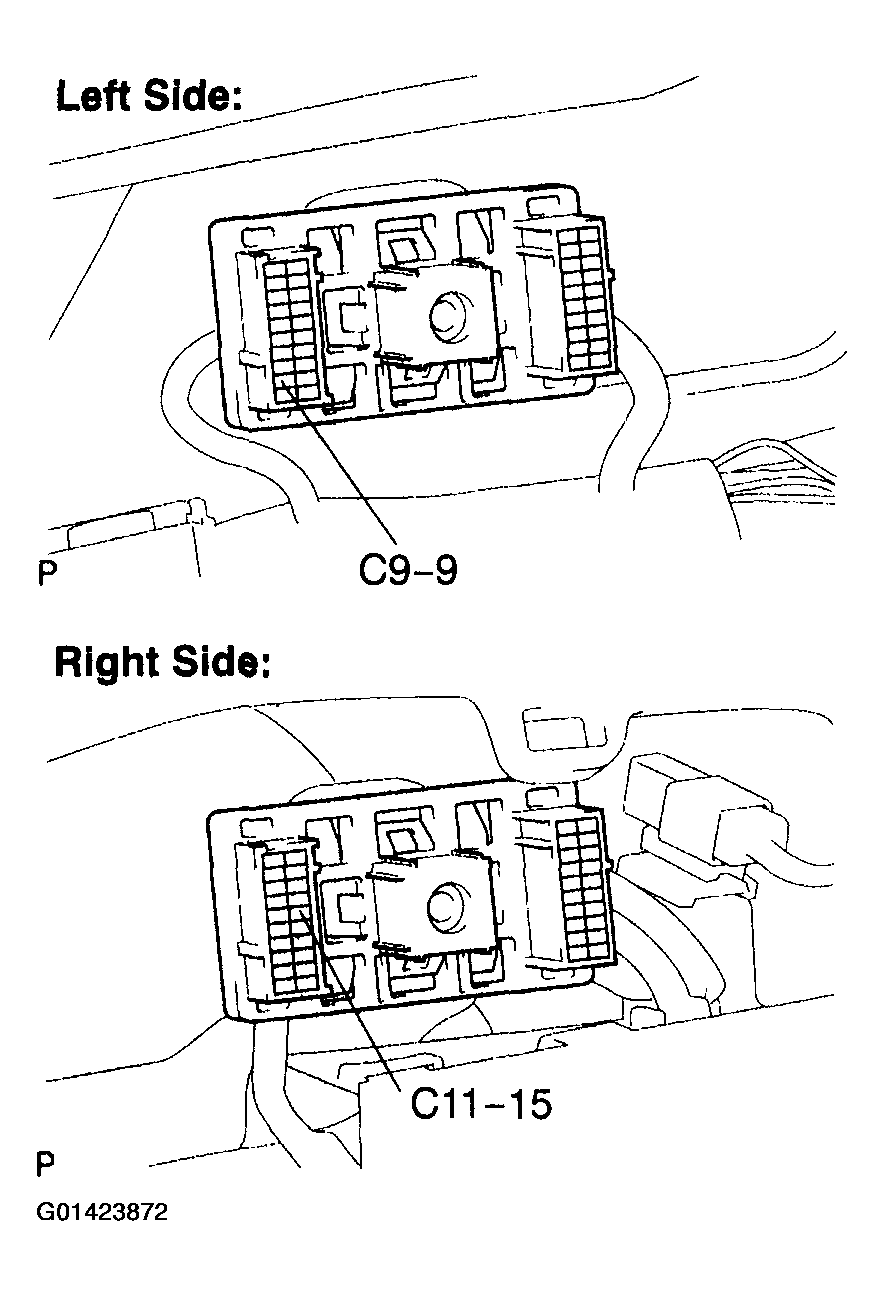

      Fig 2: Inspecting Combination Meter Assy Terminal C11-15 And C9-9

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As the vehicle speed becomes higher, the cycle shorter.

      Fig 3: Identifying Signal Waveform

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: CHECK AND REPLACE COMBINATION METER ASSY
2. NG: GO TO NEXT STEP.

1. Remove the combination meter.
2. Disconnect the connector from skid control ECU.
3. Check the continuity between terminal S10-16 (SP1) of skid control ECU and C11-15 of combination meter connector.

   Standard: There is continuity.

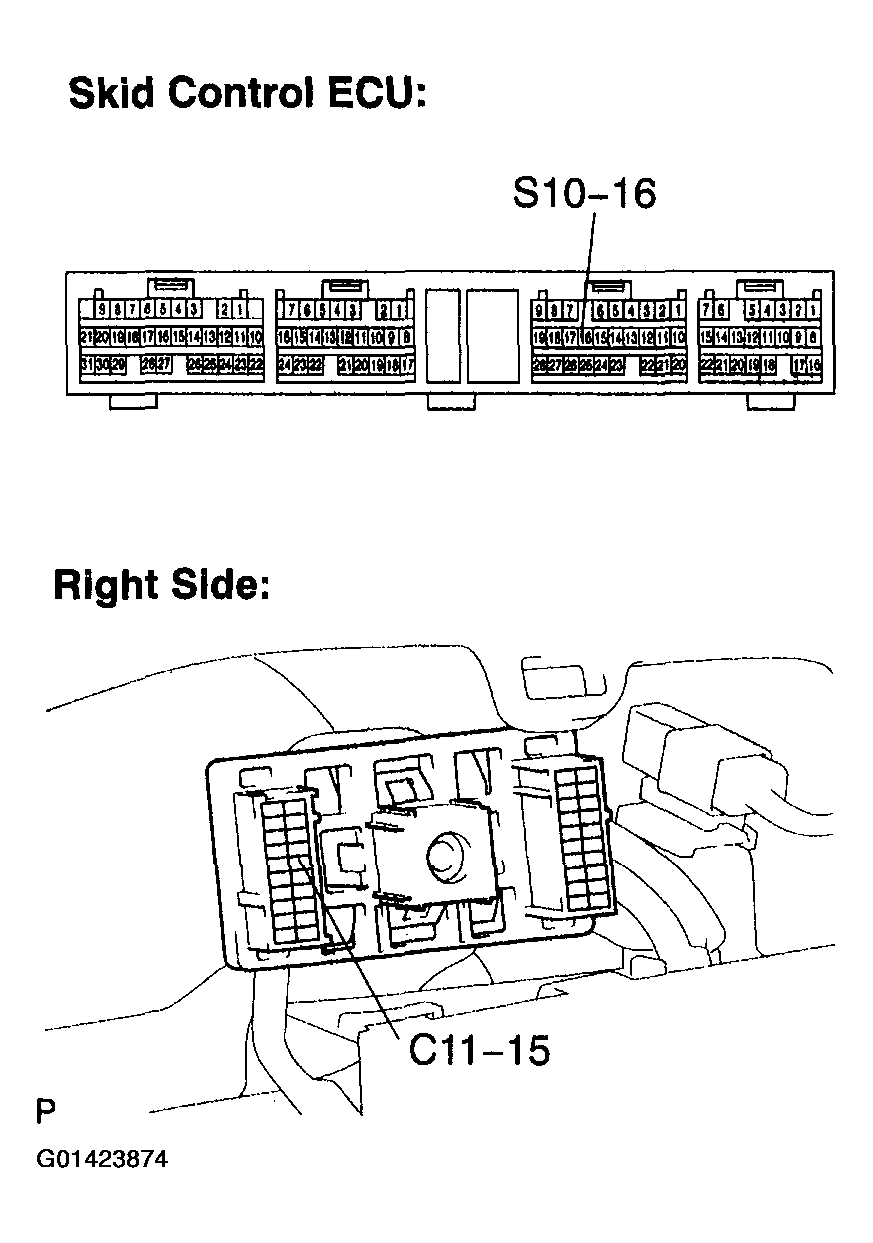

   Fig 4: Checking Harness And Connector (Between Skid Control ECU And Combination Meter Assy)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: CHECK AND REPLACE SKID CONTROL ECU ASSY
2. NG: GO TO NEXT STEP.

   REPAIR OR REPLACE HARNESS OR CONNECTOR
