Combination Meter - Diagnosis: Location

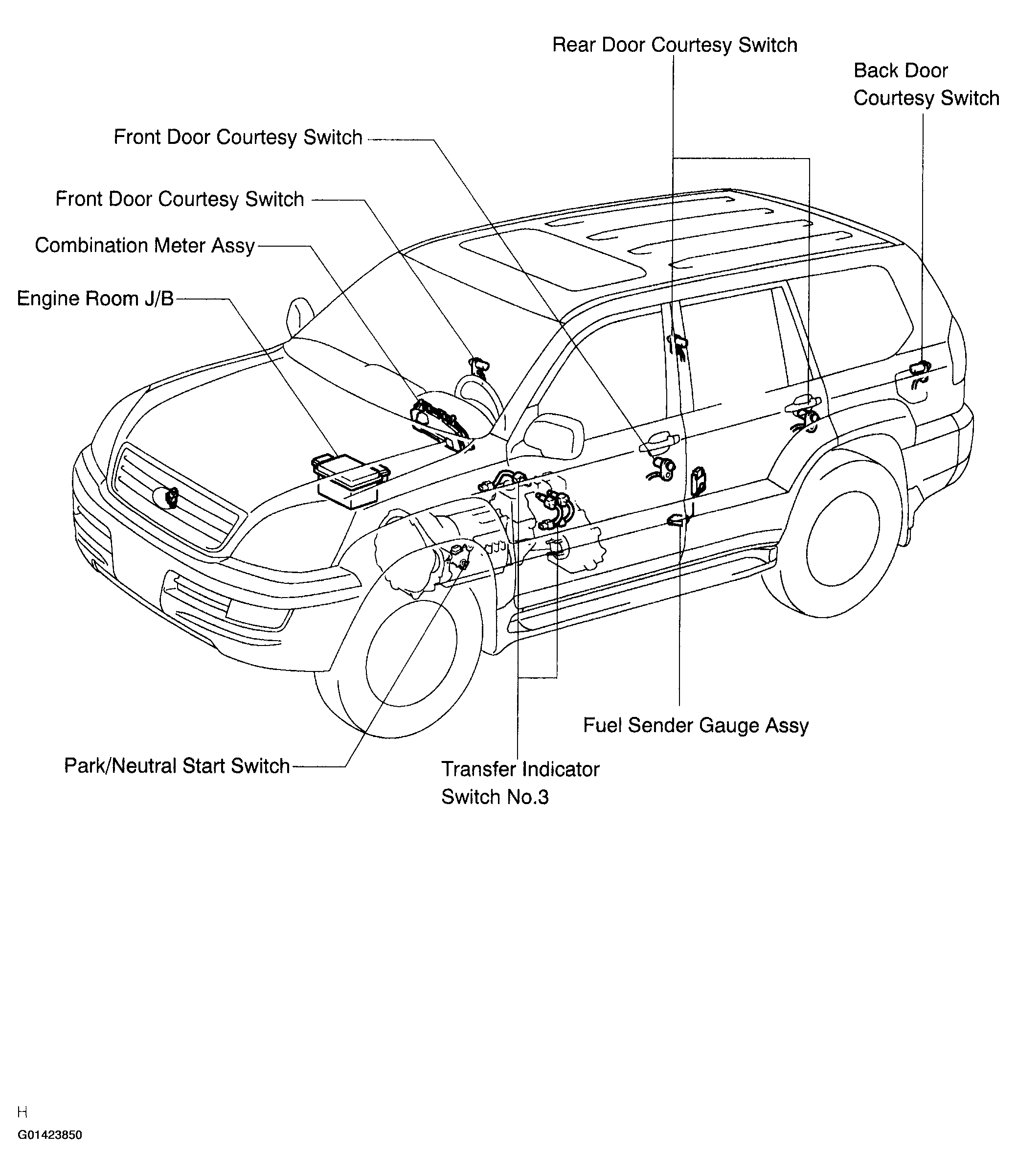

Fig 1: Identifying Combination Meter Components Location (External)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

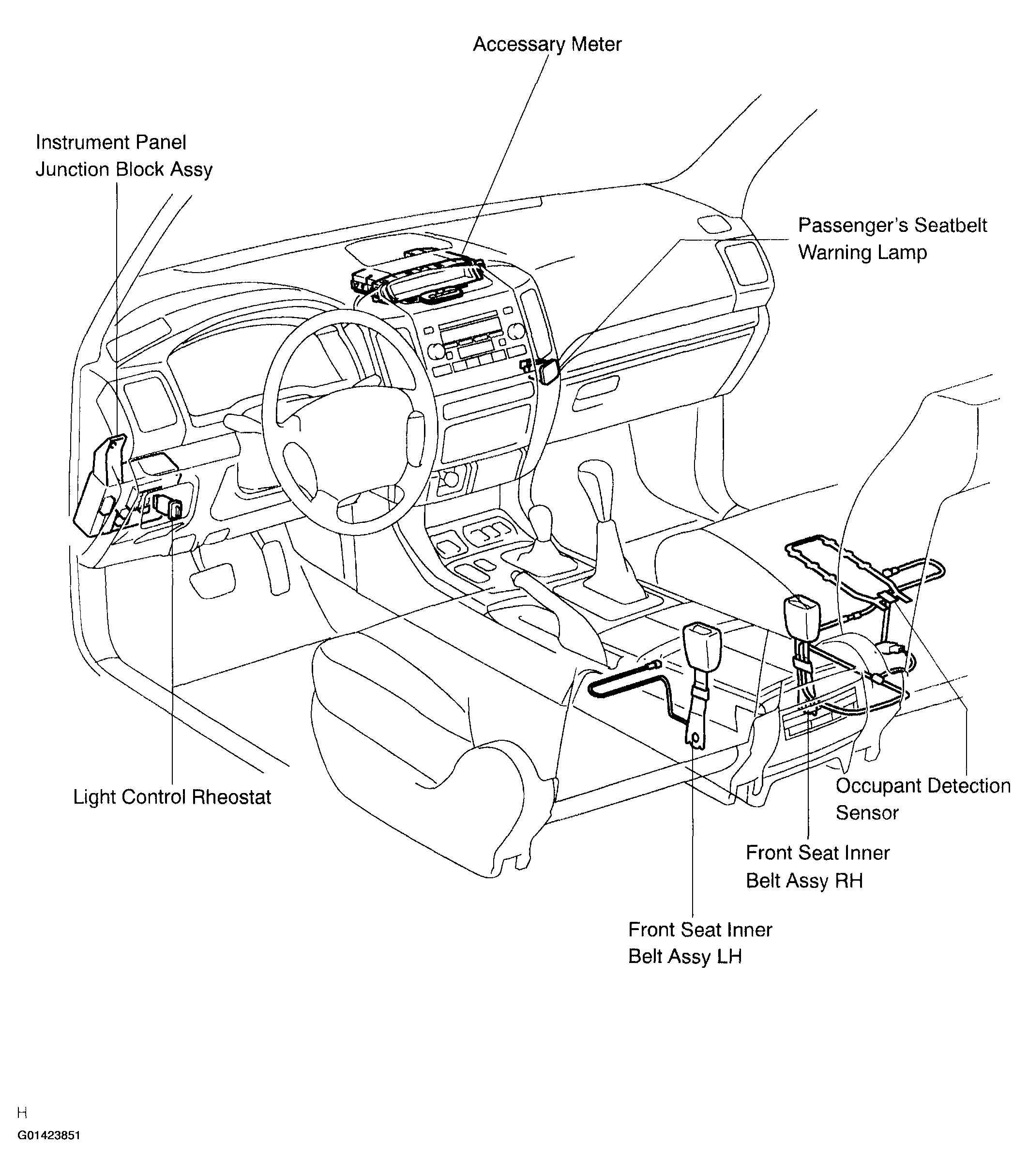

Fig 2: Identifying Combination Meter Components Location (Internal)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

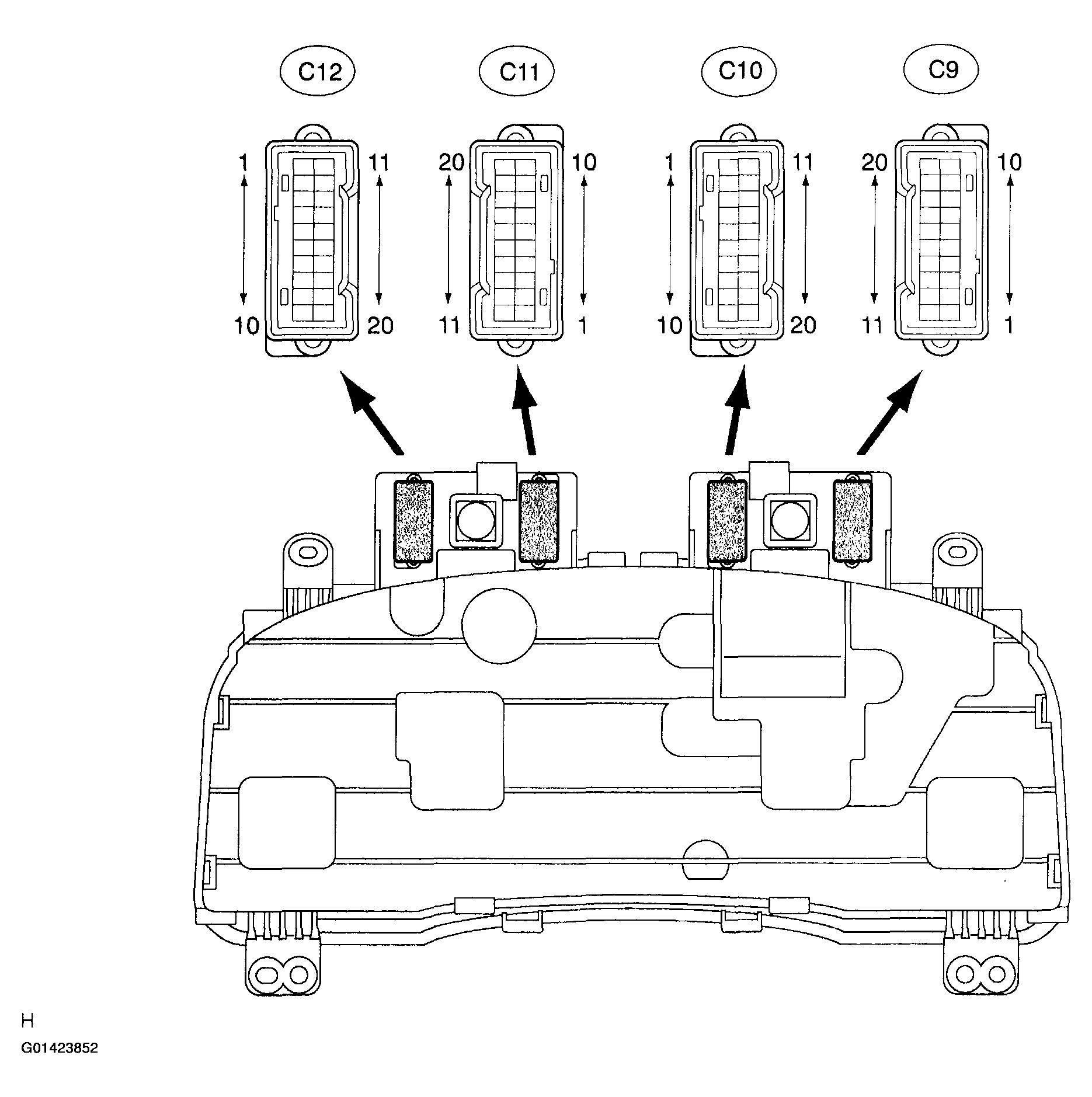

Fig 3: Identifying Combination Meter Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

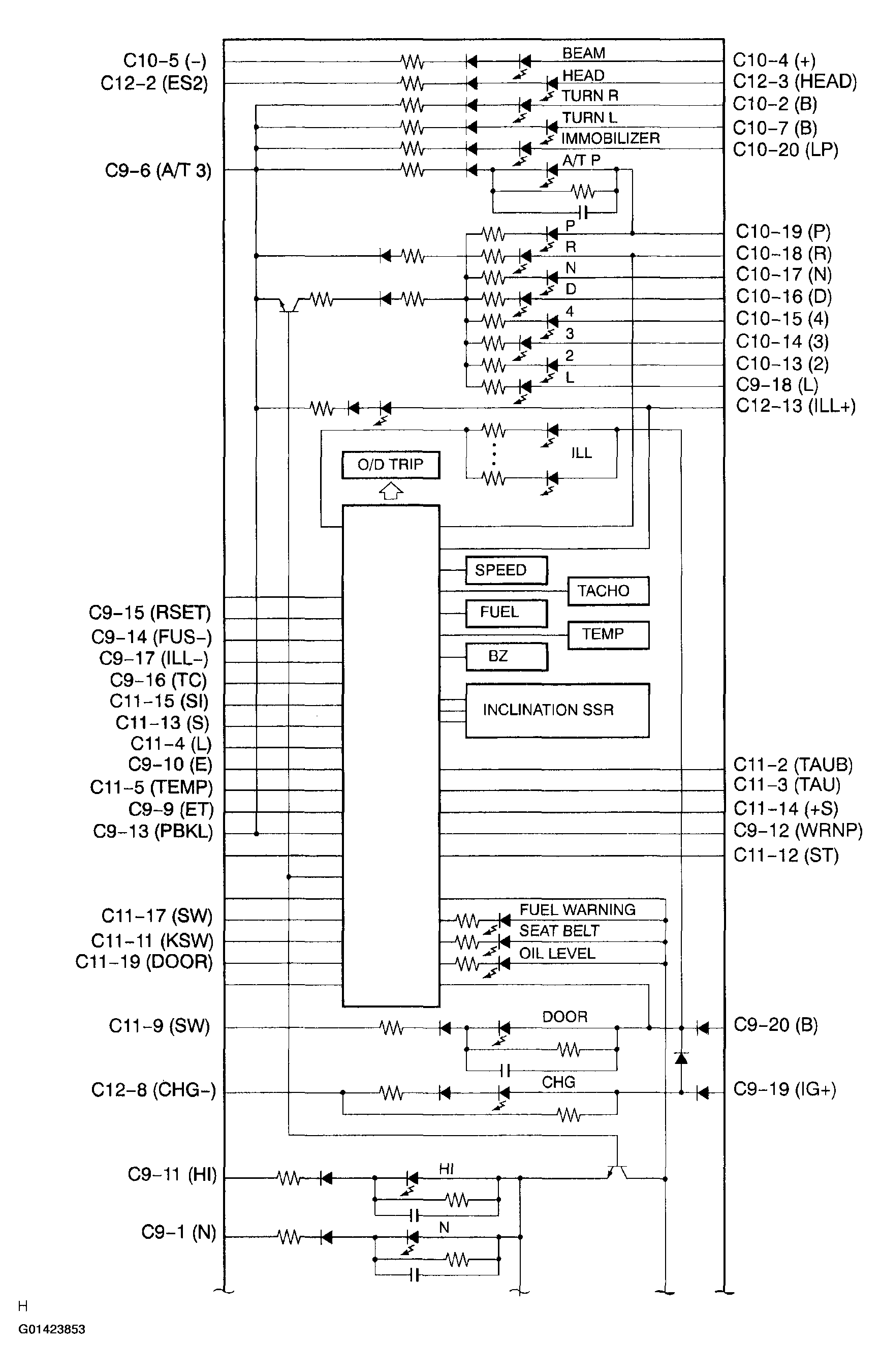

Fig 4: Combination Meter Circuit Diagram (1 Of 2)

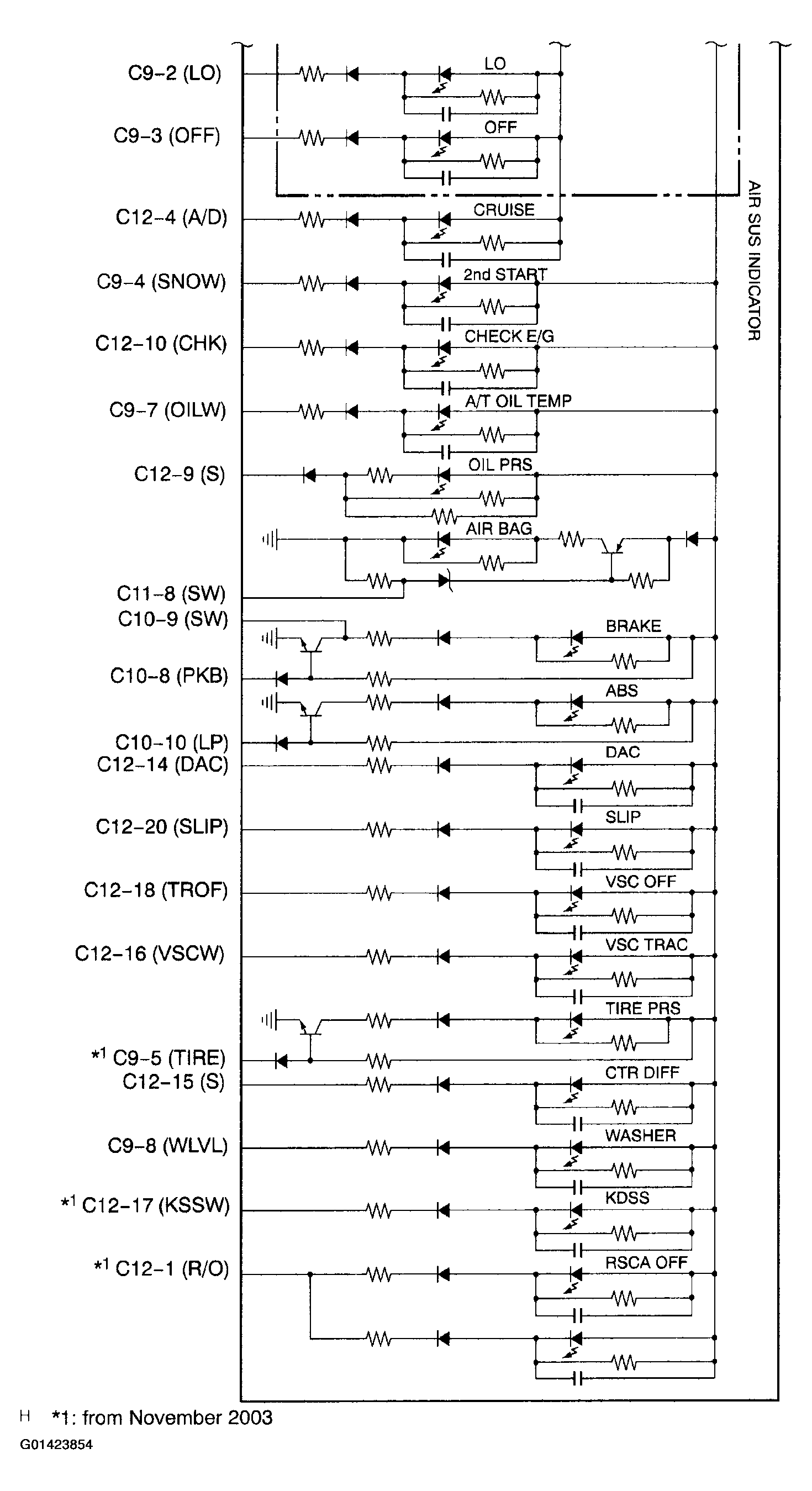

Fig 5: Combination Meter Circuit Diagram (2 Of 2)

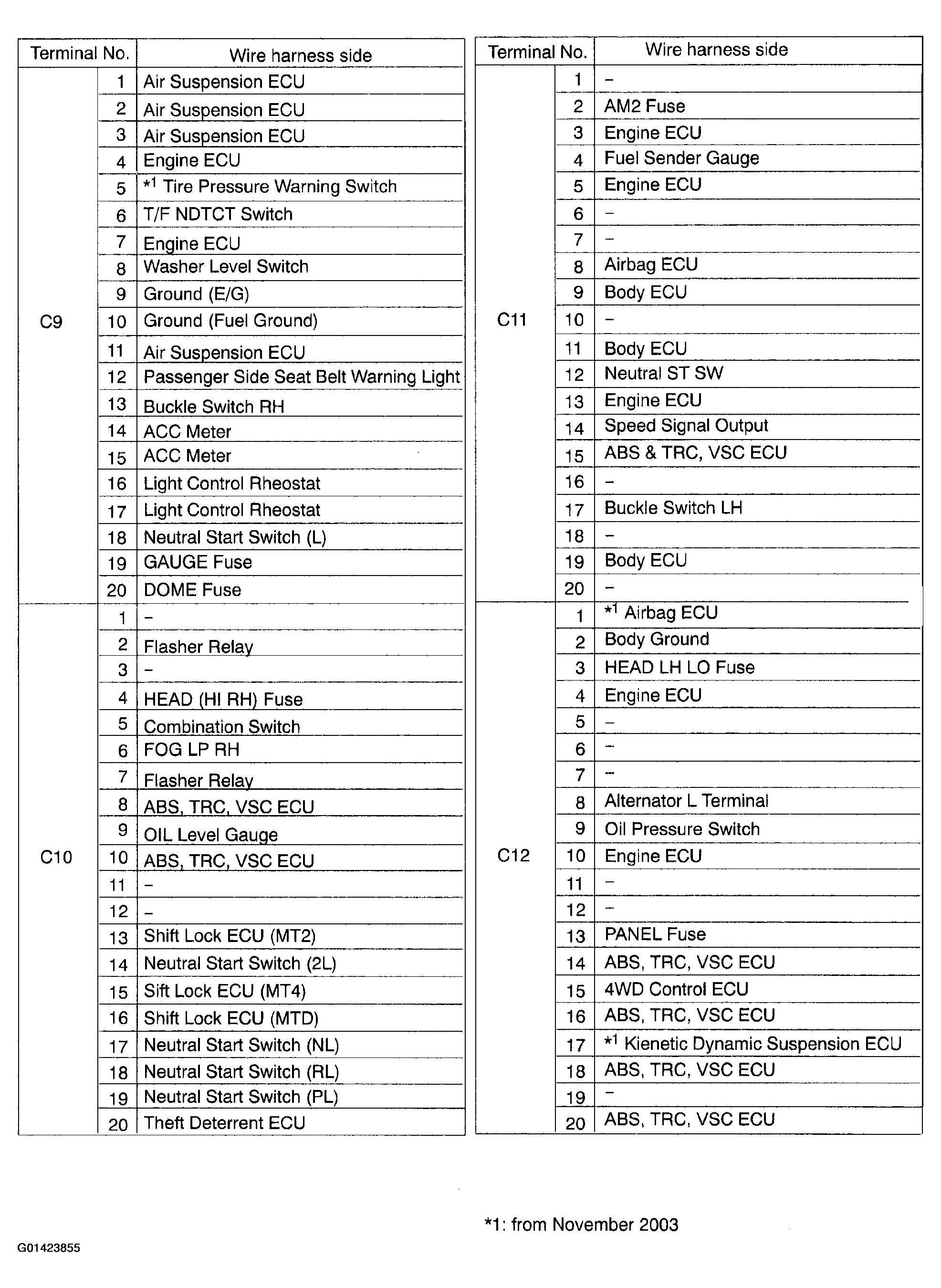

Fig 6: Combination Meter Terminals Harness Connection Chart
