Entire Combination Meter Does Not Operate: Wiring Diagram

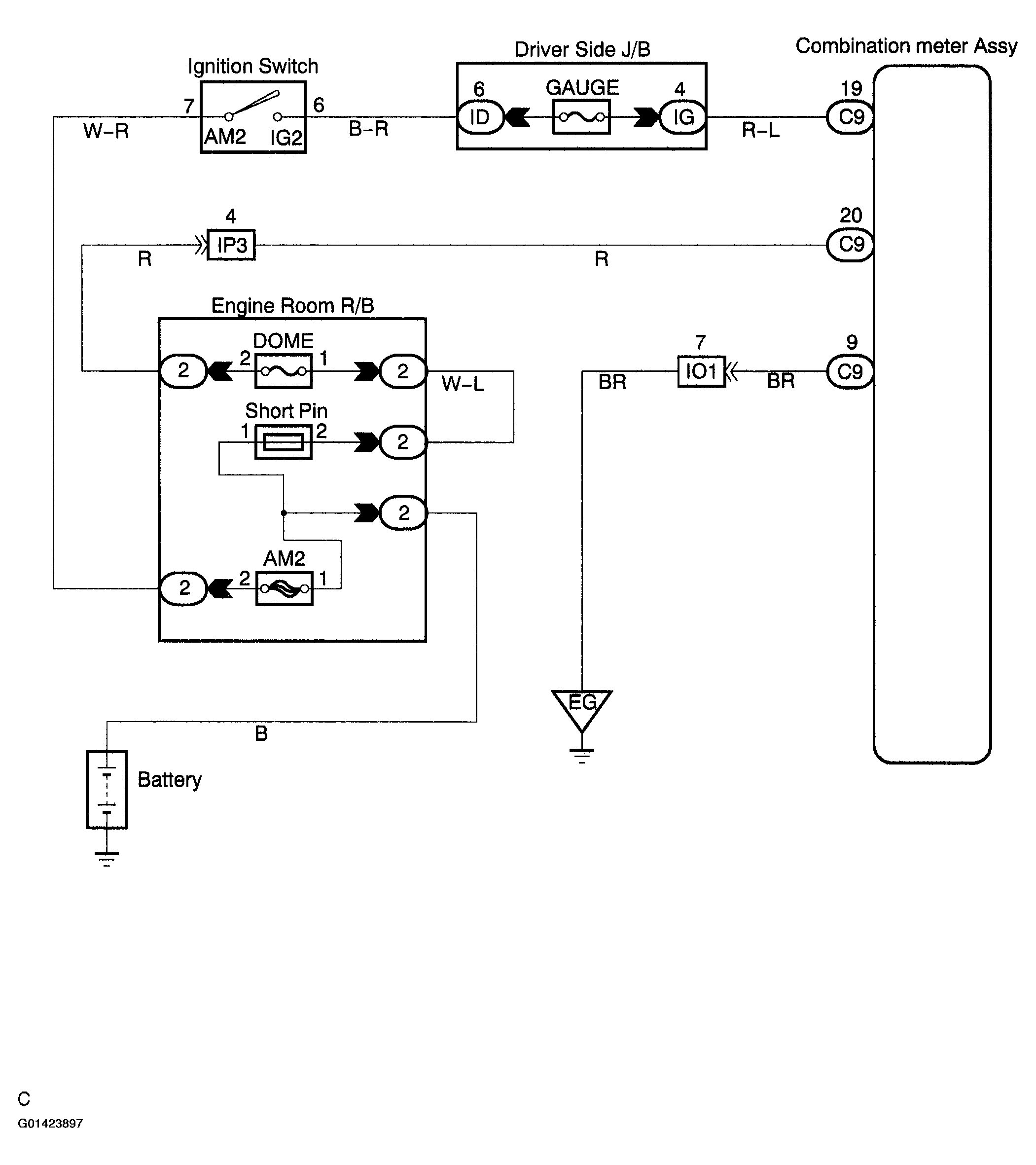

Fig 1: Entire Combination Meter Does Not Operate - Wiring Diagram

G01423897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
