Monitor Description

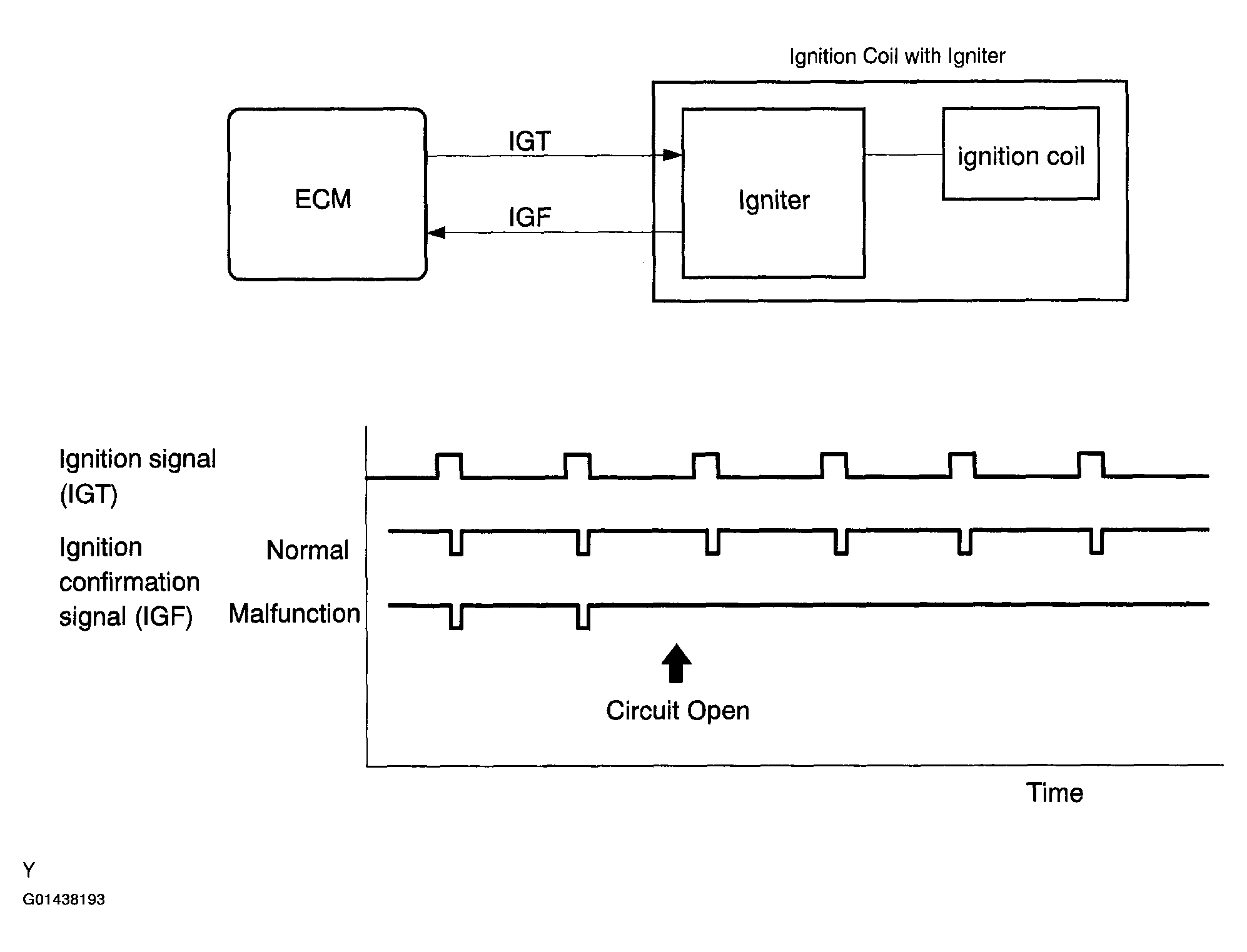

Fig 1: IGT And IGF Signal Chart (Normal And Malfunction Condition)
G01438193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive the ignition confirmation signal (IGF) after sending the ignition signal (IGT), it interprets this as a fault in the igniter and sets a DTC.
