Inspection Procedure

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. CHECK SPARK PLUG AND SPARK OF MISFIRING CYLINDER (See  DTC P0300 RANDOM/MULTIPLE CYLINDER MISFIRE DETECTED, DTC P0301 CYLINDER 1 MISFIRE DETECTED, DTC P0302 CYLINDER 2 MISFIRE DETECTED, DTC P0303 CYLINDER 3 MISFIRE DETECTED, DTC P0304 CYLINDER 4 MISFIRE DETECTED, DTC P0305 CYLINDER 5 MISFIRE DETECTED, DTC P0306 CYLINDER 6 MISFIRE DETECTED  )

    NG: Go to step   4

    OK: GO TO NEXT STEP.

  2. CHECK HARNESS AND CONNECTOR (IGNITION COIL ASSY - ECM (IGF1 SIGNAL TERMINAL))
    1. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    2. Disconnect the E10 ECM connector.
    3. Check the resistance between the wire harness side connectors.

      Standard (Check for open):

      Fig 1: Ignition Coil Connector Terminals Specified Condition Chart (Check For Open)
      G01438199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

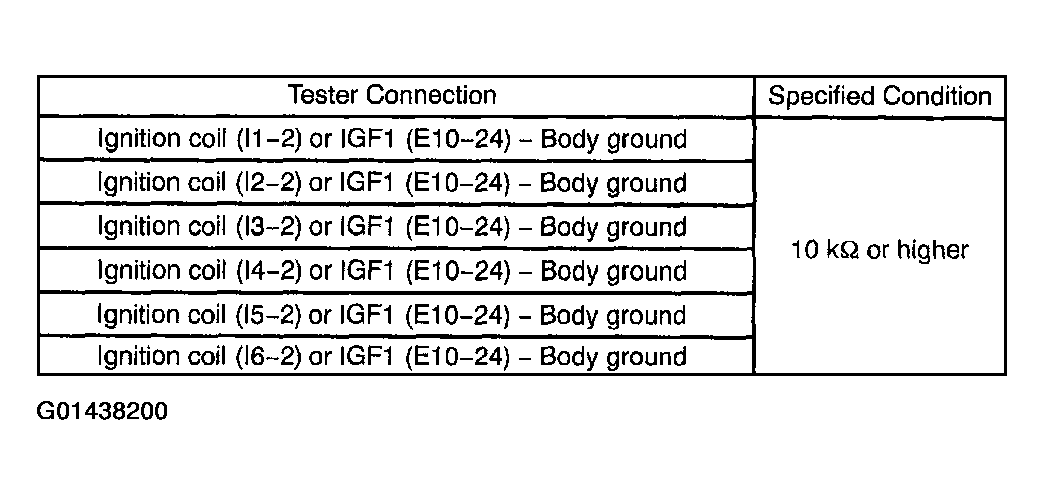

      Fig 2: Ignition Coil Connector Terminals Specified Condition Chart (Check For Short)
      G01438200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.
    5. Reconnect the ECM connector.
      Fig 3: Identifying Ignition Coil Connector
      G01438201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

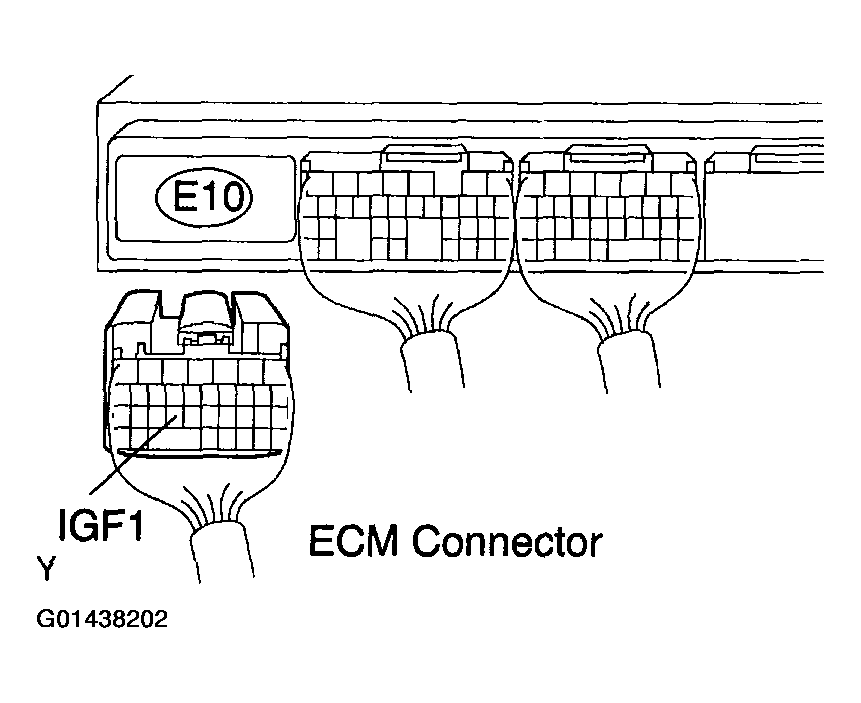

      Fig 4: Disconnecting E10 ECM Connector
      G01438202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP.

  3. INSPECT ECM (IGF1 VOLTAGE)
    1. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage between the specified terminals of the E8 and E10 ECM connectors.

      Standard:

      Fig 5: ECM Connector Terminals Specified Condition Table
      G01438203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 6: Identifying ECM Connector Terminals
      G01438204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.

    NG: REPLACE ECM (See  ECM (3MZ-FE)  )

    OK: GO TO NEXT STEP.

    REPLACE IGNITION COIL ASSY

  4. CHECK HARNESS AND CONNECTOR (IGNITION COIL ASSY - ECM (IGT SIGNAL TERMINAL))
    1. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    2. Disconnect the E10 ECM connector.
    3. Check the resistance between the wire harness side connectors.

      Standard (Check for open):

      Fig 7: Ignition Coil Assy And ECM Terminals Specified Condition Chart (Check For Open)
      G01438205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

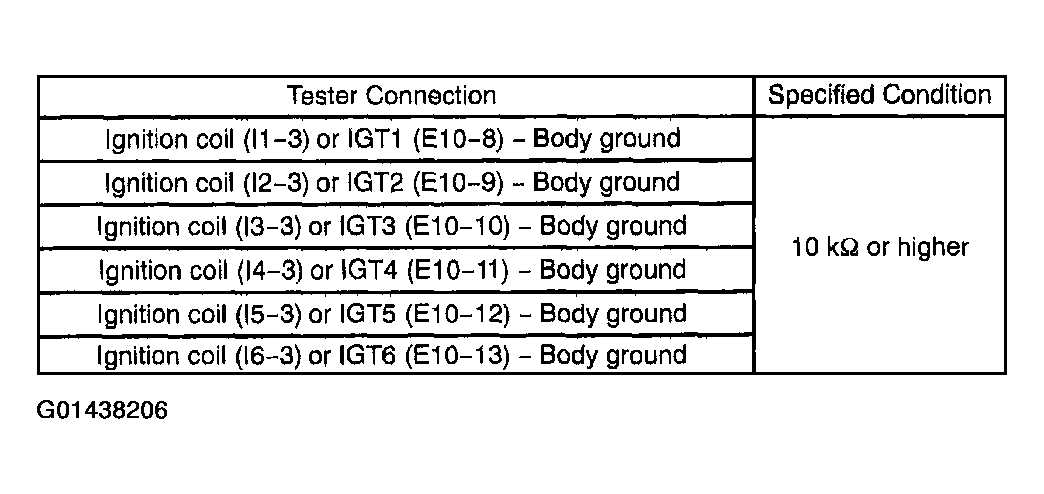

      Fig 8: Ignition Coil Assy And ECM Terminals Specified Condition Chart (Check For Short)
      G01438206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.
    5. Reconnect the ECM connector.
      Fig 9: Identifying Ignition Coil Connector
      G01438207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

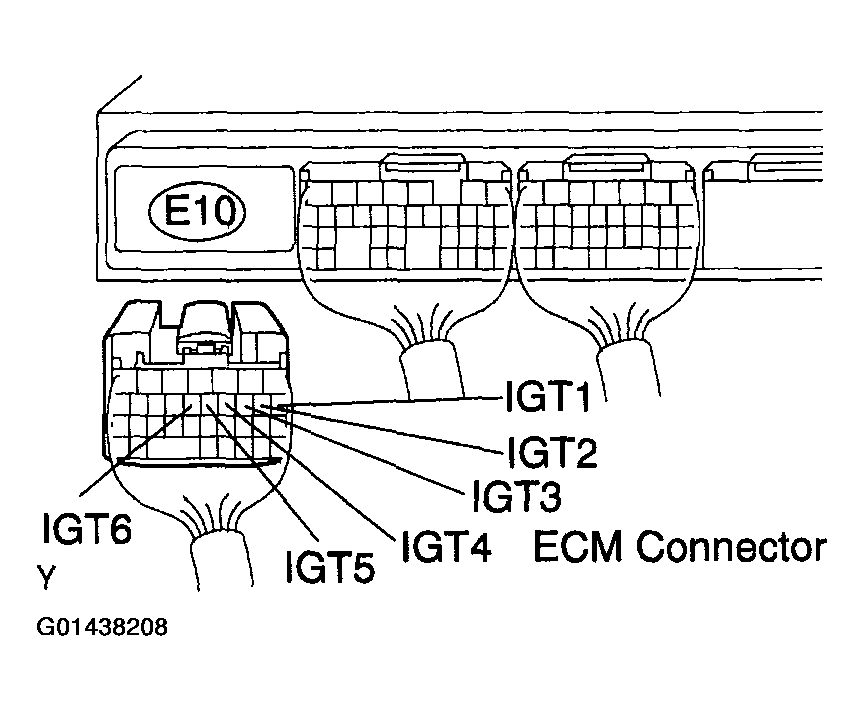

      Fig 10: Connecting E10 ECM Connector
      G01438208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP.

  5. INSPECT ECM (IGT1, IGT2, IGT3, IGT4, IGT5 OR IGT6 VOLTAGE)
    1. Measure the voltage between the applicable terminal the E8 and E10 ECM connectors when the engine is cranked.

      Standard:

      Fig 11: ECM Connector Terminals Specified Condition Chart
      G01438209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

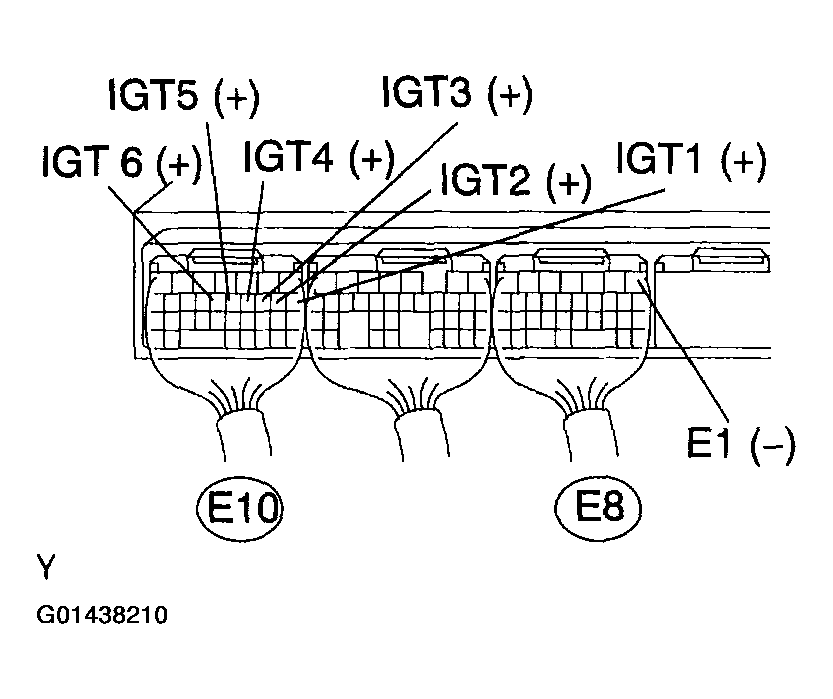

      Fig 12: Identifying ECM Connector Terminals
      G01438210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ECM (See  ECM (3MZ-FE)  )

    OK: GO TO NEXT STEP.

  6. INSPECT ECM (IGT1, IGT2, IGT3, IGT4, IGT5 OR IGT6 VOLTAGE)
    1. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    2. Measure the voltage between the applicable terminals of the E8 and E10 ECM connectors when the engine is cranked.

      Standard:

      Fig 13: ECM Connector Terminals Specified Condition Chart
      G01438211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reconnect the ignition coil connector.
      Fig 14: Identifying Ignition Coil Connector
      G01438212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

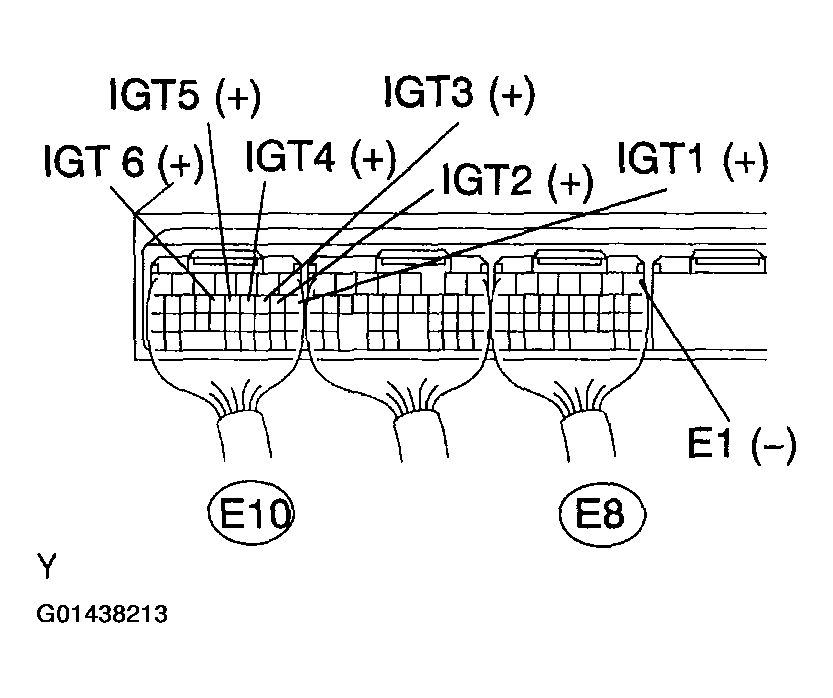

      Fig 15: Identifying ECM Connector Terminals
      G01438213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ECM (See  ECM (3MZ-FE)  )

    OK: GO TO NEXT STEP.

  7. INSPECT IGNITION COIL ASSY (POWER SOURCE)
    1. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage between the terminal of the wire harness side connector and the body ground.

      Standard:

      Fig 16: Ignition Coil Connector Terminals Specified Condition Chart
      G01438214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.
      Fig 17: Identifying Ignition Coil Connector
      G01438215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE IGNITION COIL ASSY

    NG: GO TO NEXT STEP.

  8. CHECK HARNESS AND CONNECTOR (IGNITION COIL ASSY - IGNITION SWITCH)
    1. Inspect the IGN fuse.
      1. Remove the IGN fuse from the engine room J/B.
      2. Check for continuity in the IGN fuse.

        Standard: Continuity

      3. Reinstall the IGN fuse.
    2. Disconnect the I1, I2, I3, I4, I5 or I6 ignition coil connector.
    3. Disconnect the I14 ignition switch connector.
    4. Check the resistance between the wire harness side connectors.

      Standard (Check for open):

      Fig 18: Ignition Coil Assy And Ignition Switch Terminals Specified Condition Chart (Check For Open)
      G01438216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (Check for short):

      Fig 19: Ignition Coil Assy And Ignition Switch Terminals Specified Condition Chart (Check For Short)
      G01438217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Reconnect the ignition coil connector.
    6. Reconnect the ignition switch connector.

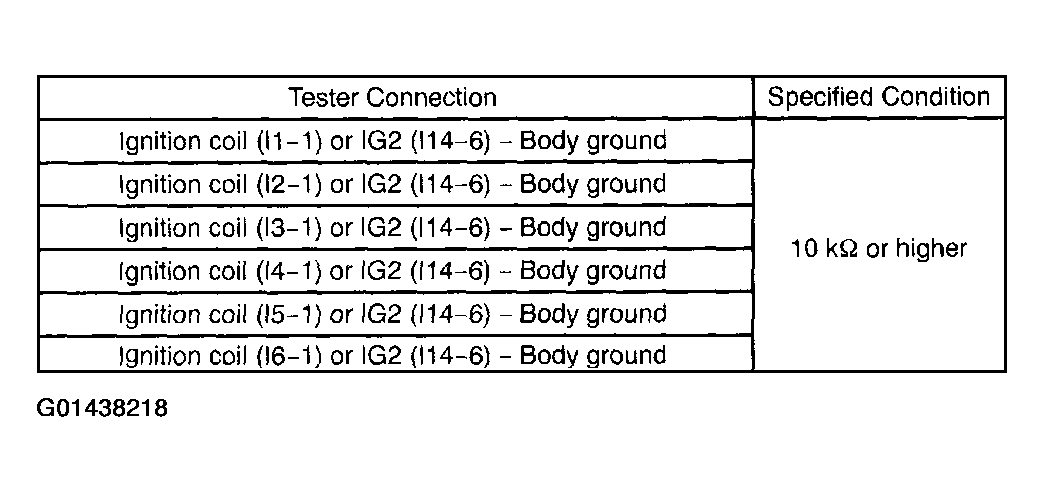

      Fig 20: Identifying IGN Fuse
      G01438218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 21: Identifying Ignition Coil Connector
      G01438219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 22: Identifying Ignition Switch Connector
      G01438220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP.

    REPLACE IGNITION COIL ASSY
