Circuit Description

Refer to DTC P0010 on DTC P0010 CAMSHAFT POSITION "A" ACTUATOR CIRCUIT (BANK 1), DTC P0020 CAMSHAFT POSITION "A" ACTUATOR CIRCUIT (BANK 2) .

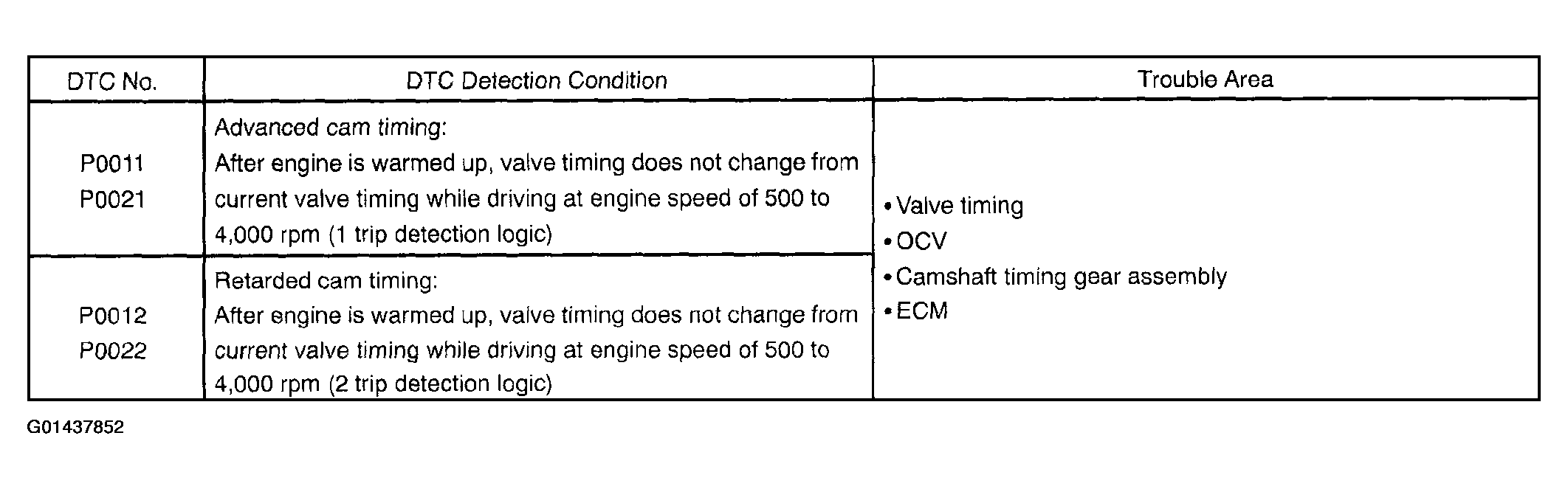

Fig 1: DTC P0011, P0012, P0021 And P00022 Diagnostic Chart
G01437852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
