DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1), DTC P0020 Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

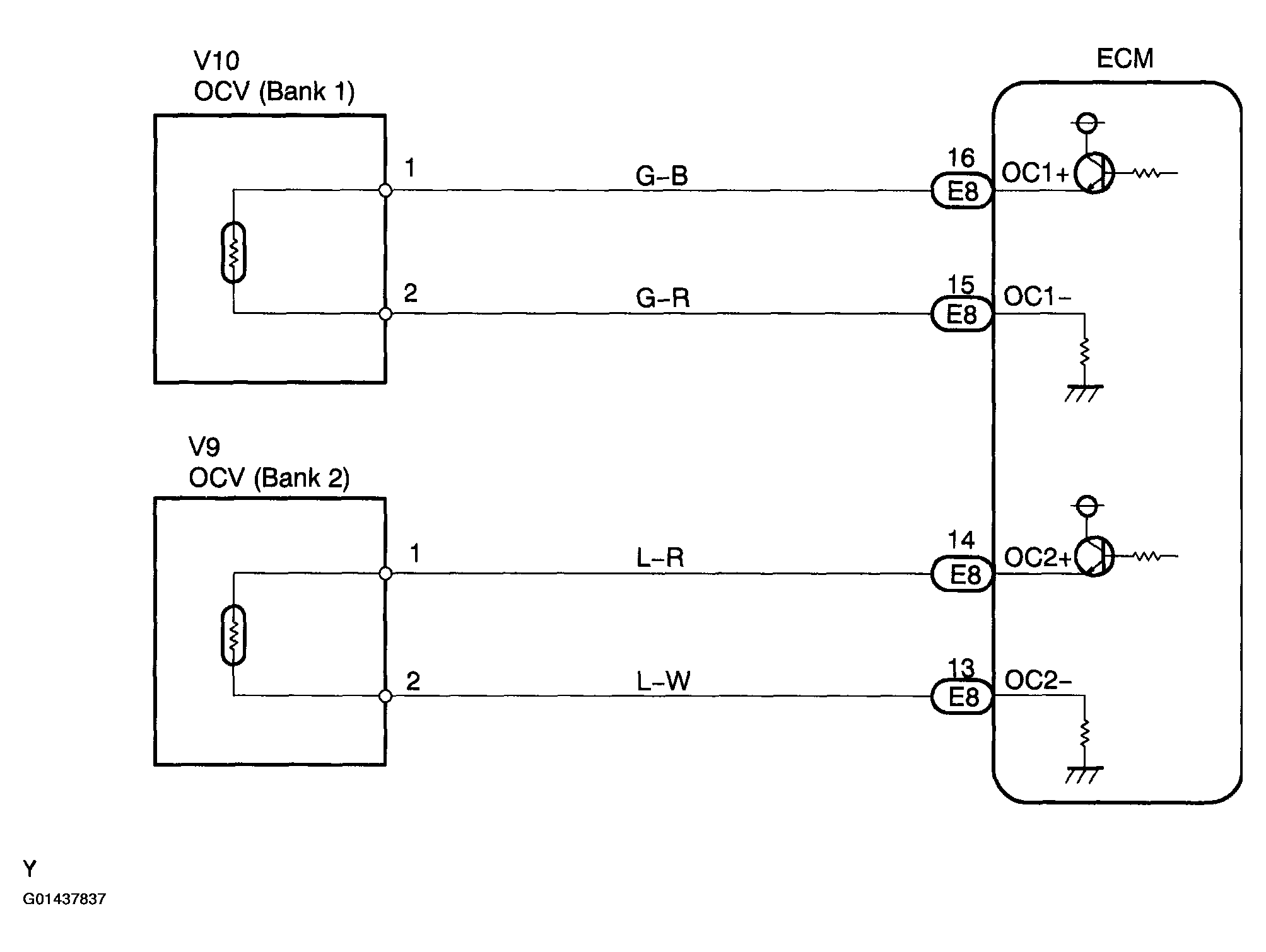

Fig 1: Wiring Diagram - Camshaft Position Sensor
G01437837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
