REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (w/LSD): Components

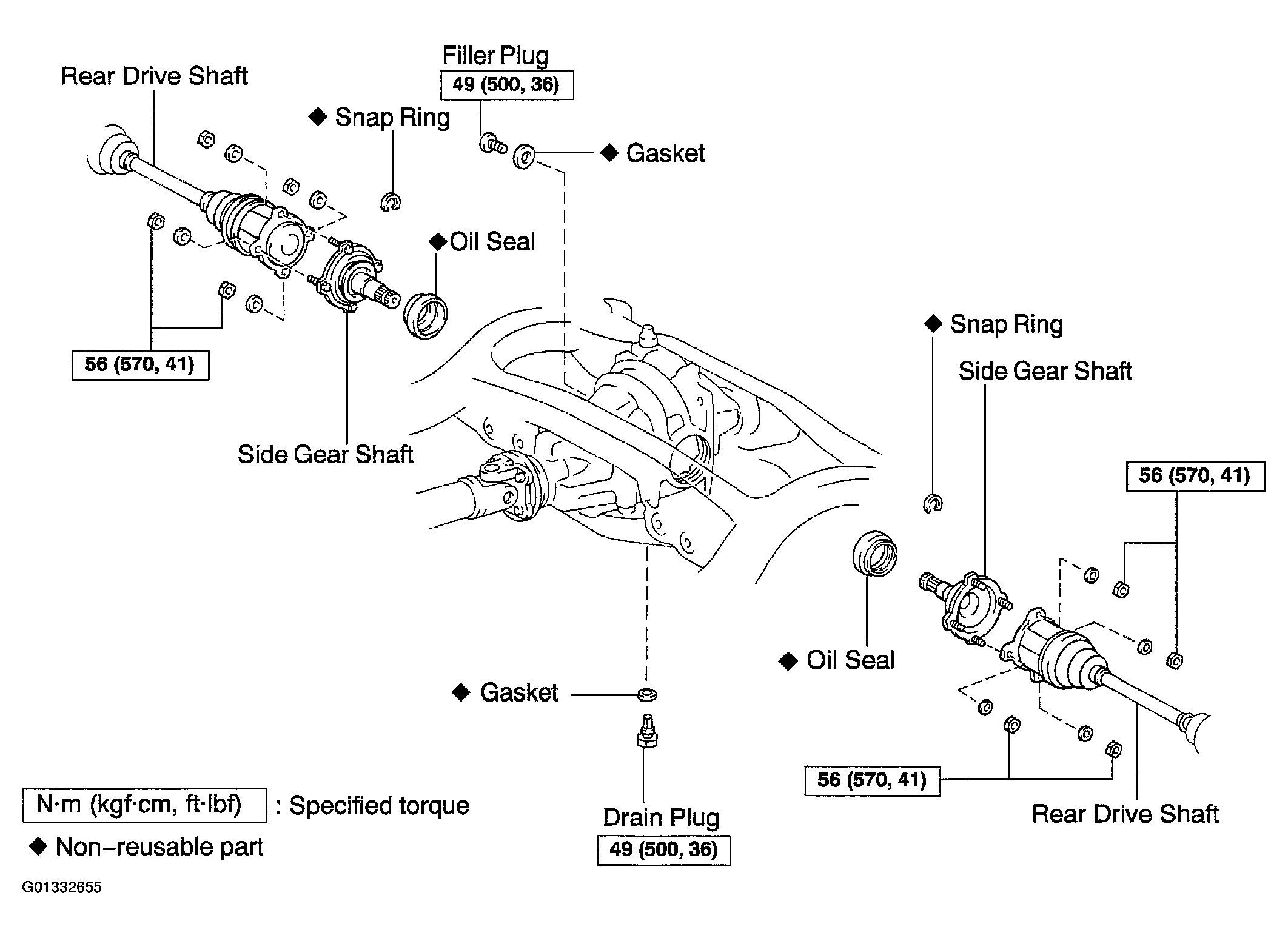

Fig 1: Exploded View Of Rear Differential Side Gear Shaft And Related Components (With LSD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
