Propeller Shaft Assembly: Removal

1. Place the matchmarks on both the flanges.
2. Remove the 4 nuts, bolts and washers.

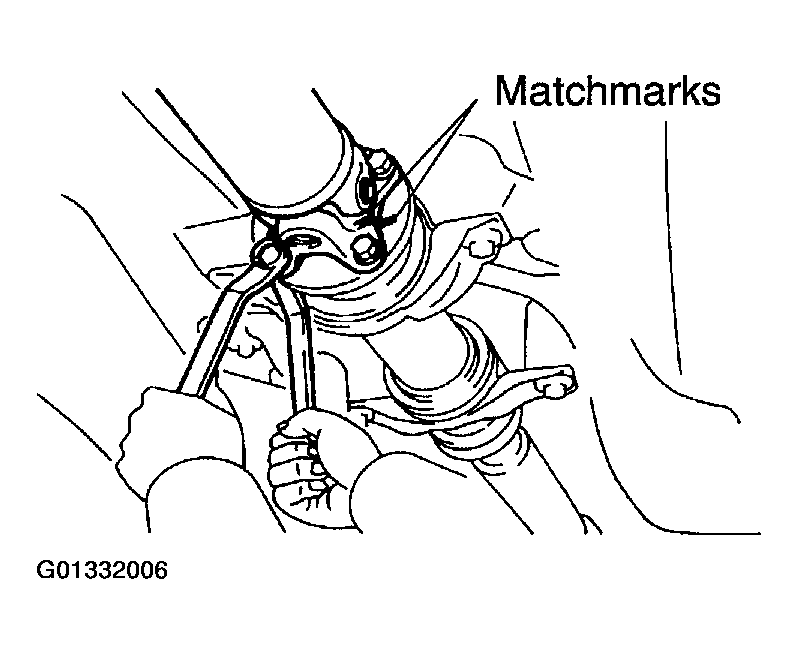

   Fig 1: Placing Matchmarks On Both Flanges

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the front propeller shaft assembly.
   NOTE: Be careful not to damage the oil seal.
4. Insert SST in the transfer to prevent oil leakage.
   1. SST 09325-20010
   Fig 2: Inserting SST In Transfer To Prevent Oil Leakage

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Depress the brake pedal and hold it.
2. Using a hexagon wrench, loosen the cross groove joint set bolts 1/2 turn.

HINT:

Put a piece of cloth or equivalent into the inside of the universal joint cover so that the boot does not touch the inside of the universal joint cover.

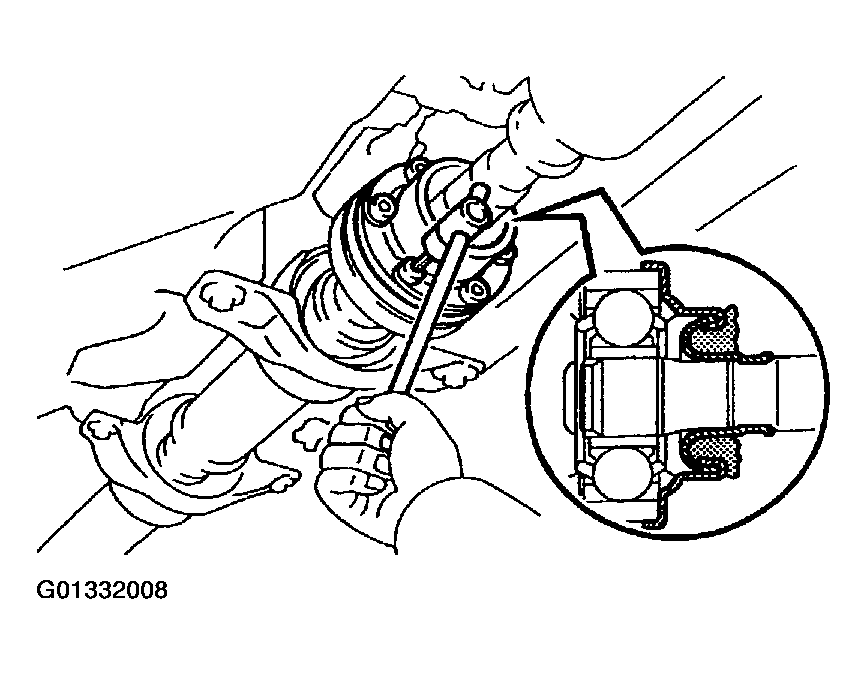

Fig 3: Loosening Cross Groove Joint Set Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place the matchmarks on both the flanges.
2. Remove the 4 nuts, bolts and washers.
   Fig 4: Placing Matchmarks On Both Flanges

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts, shims and intermediate shaft with the rear propeller shaft assembly.
   Fig 5: Removing Bolts, Shims And Intermediate Shaft With Rear Propeller Shaft Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place the matchmarks on the joint and flange.
   NOTE: Do not make matchmarks with a punch.
2. Using a hexagon wrench, remove the 6 bolts and 2 washers and separate the intermediate shaft from the rear propeller shaft.
   Fig 6: Separating Intermediate Shaft And Rear Propeller Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
