Instrument Panel (On-Vehicle Service): Disassembly

  1. REMOVE GLOVE BOX LIGHT ASSEMBLY
  2. REMOVE CENTER BRACKET SUB-ASSEMBLY

    Remove the 3 screws and center bracket sub-assembly.

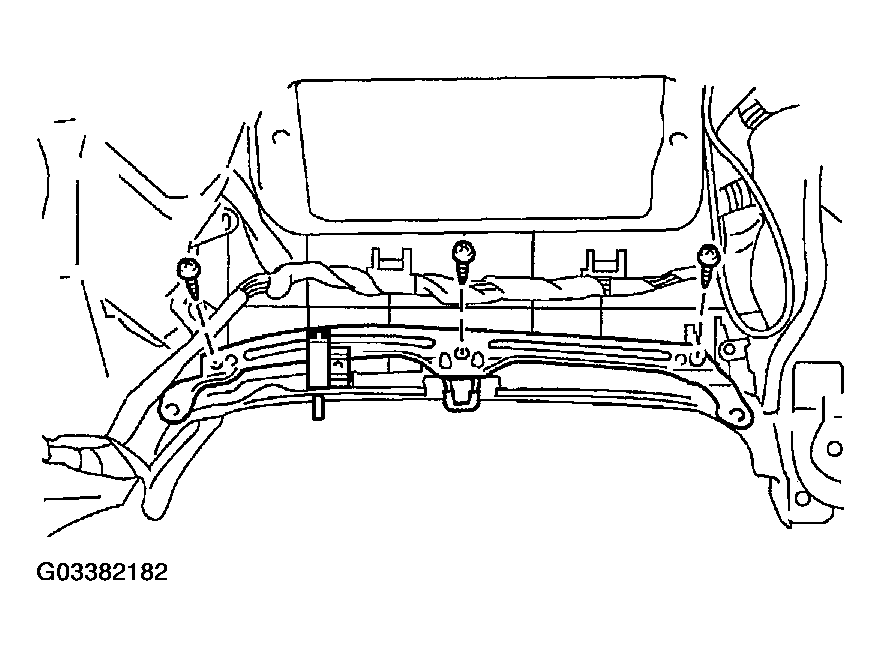

    3. Fig 1: Removing Center Bracket Sub-Assembly
    G03382182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 AND NO. 2 SIDE DEFROSTER NOZZLES

    Using a screwdriver, remove the side defroster nozzles.

    HINT:

    Tape the screwdriver tip before use.

  4. REMOVE DEFROSTER NOZZLE GARNISH

    Using a screwdriver, remove the defroster nozzle garnish.

    HINT:

    Tape the screwdriver tip before use.

    5. Fig 2: Removing Defroster Nozzle Garnish
    G03382183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Remove the 5 screws and defroster nozzle assembly.

  6. REMOVE NO. 5 SIDE DEFROSTER NOZZLE DUCT

    Remove the 2 screws and No. 5 side defroster nozzle duct.

  7. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Remove the screw and No. 1 side defroster nozzle duct.

  8. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Remove the screw and No. 2 side defroster nozzle duct.

  9. REMOVE HEATER TO RESISTER NO. 1 DUCT

    Remove the 2 screws and heater to register No. 1 duct.

  10. REMOVE HEATER TO RESISTER NO. 4 DUCT

    Remove the 2 screws and heater to register No. 4 duct.

  11. REMOVE NO. 1 REGISTER

    Remove the 2 screws and No. 1 register.

  12. REMOVE NO. 4 REGISTER

    Remove the 2 screws and No. 4 register.

  13. REMOVE HEATER TO REGISTER CENTER SUB DUCT

    Remove the 4 screws and heater to register center sub duct.

  14. REMOVE WIRE HARNESS
    1. Remove the 5 screws.
    2. Disengage the clamps and remove the wire harness.

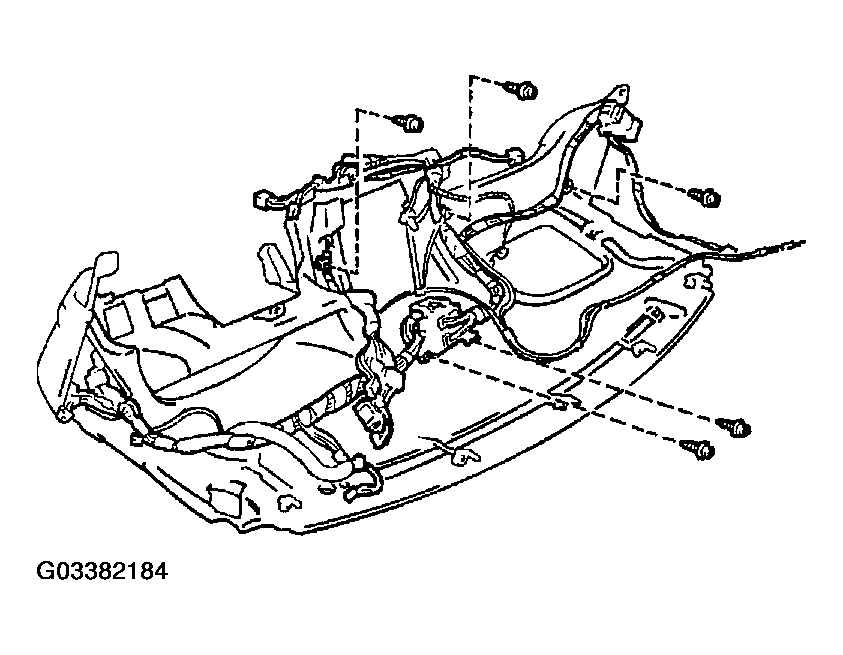

    15. Fig 3: Removing Wire Harness
    G03382184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 MOUNTING BRACKET

    Remove the 2 screws and No. 1 mounting bracket.

  16. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
  17. REMOVE SOLAR SENSOR
