Instrument Panel (On-Vehicle Service): Components

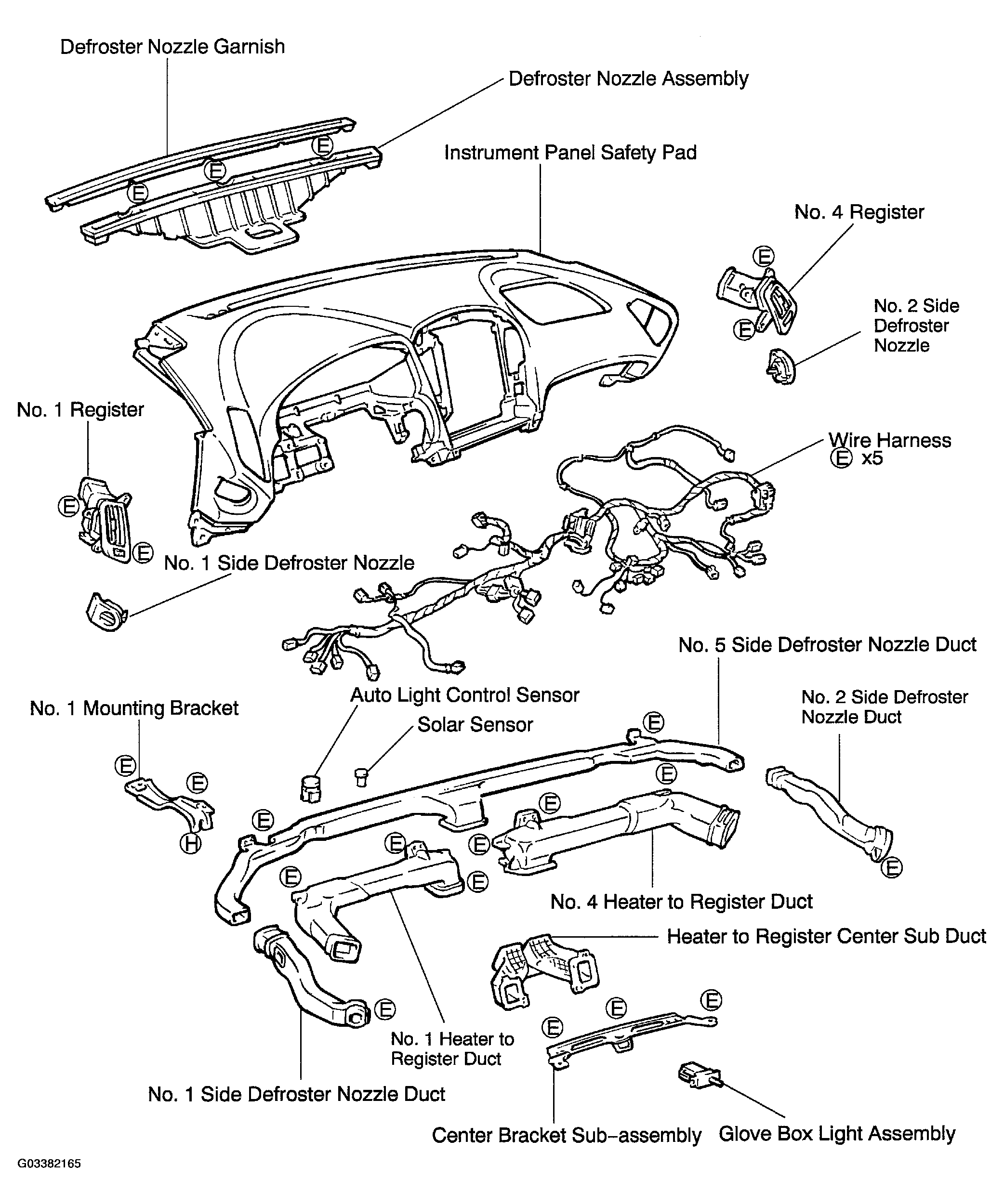

Fig 1: Exploded View Of Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

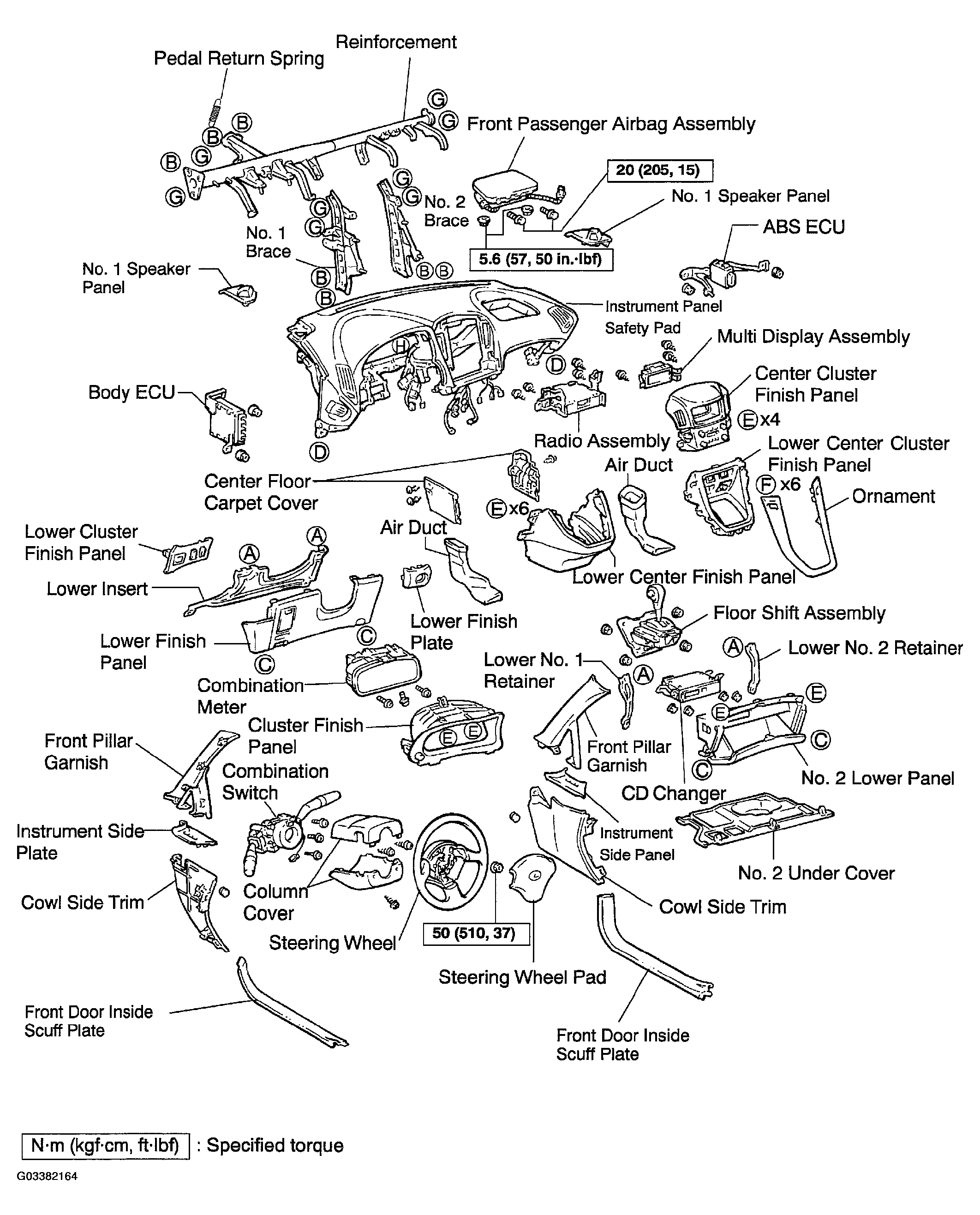

Fig 2: Exploded View Of Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in the table below. The codes ("A" - "H") correspond to those indicated on the previous pages.

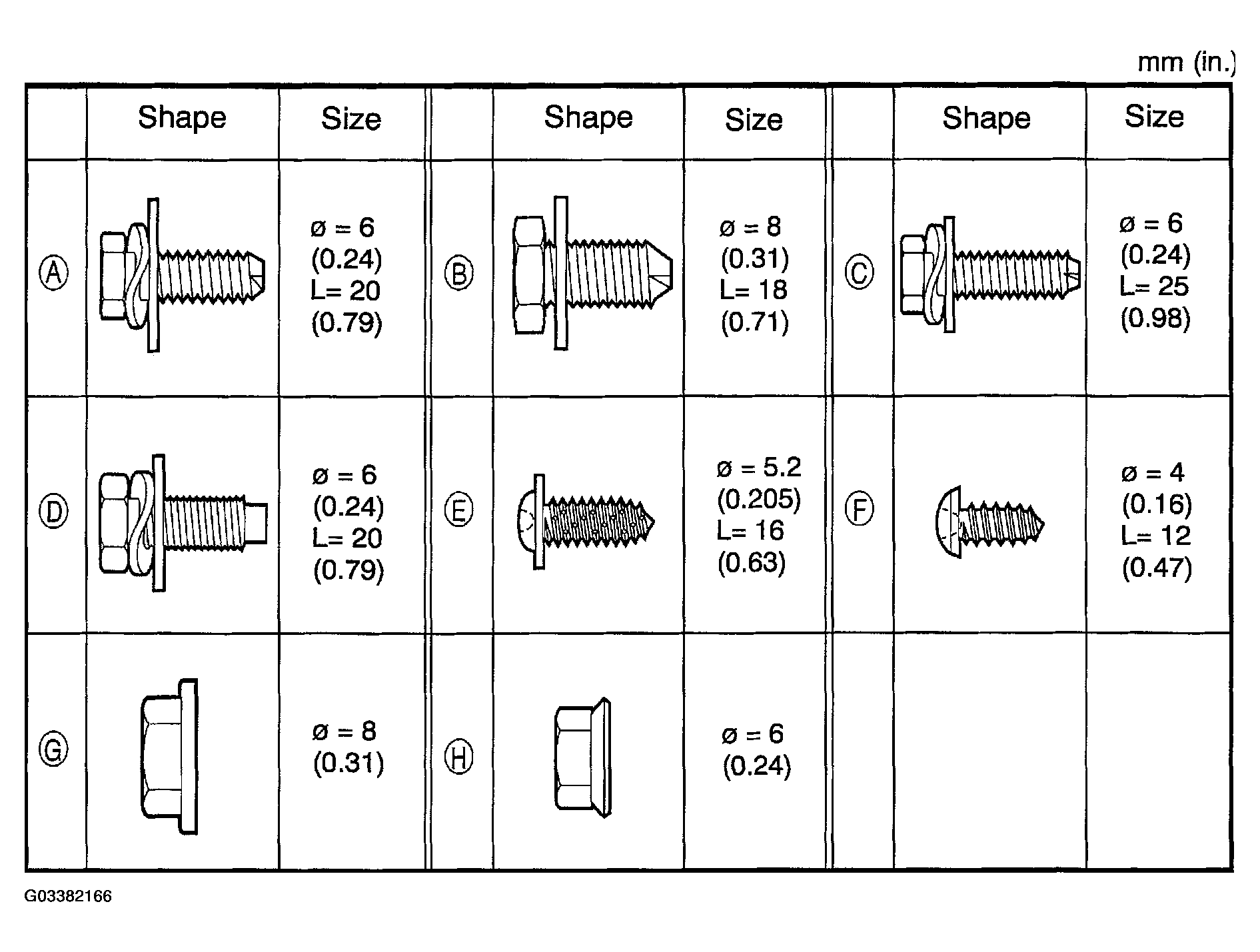

Fig 3: Identifying Bolt Specification Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
