DTC C1207 / 37: Park/Neutral Position Switch (Park/Reverse Position Circuit): Wiring Diagram

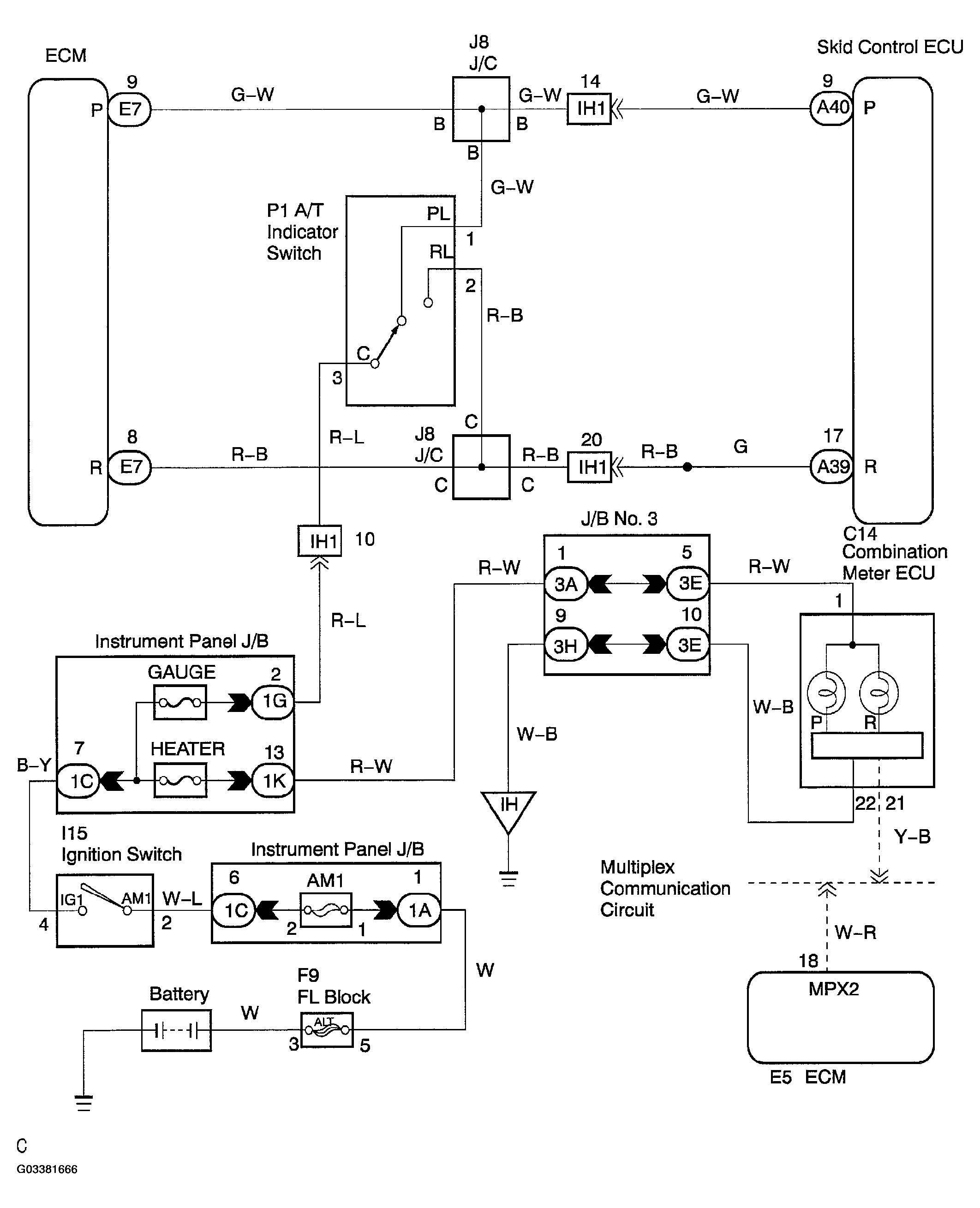

Fig 1: Wiring Diagram - Park/Neutral Position Switch (Park/Reverse Position Circuit)
G03381666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
