DTC C0226 / 21 - C1227 / 27: ABS Solenoid Circuit: Wiring Diagram

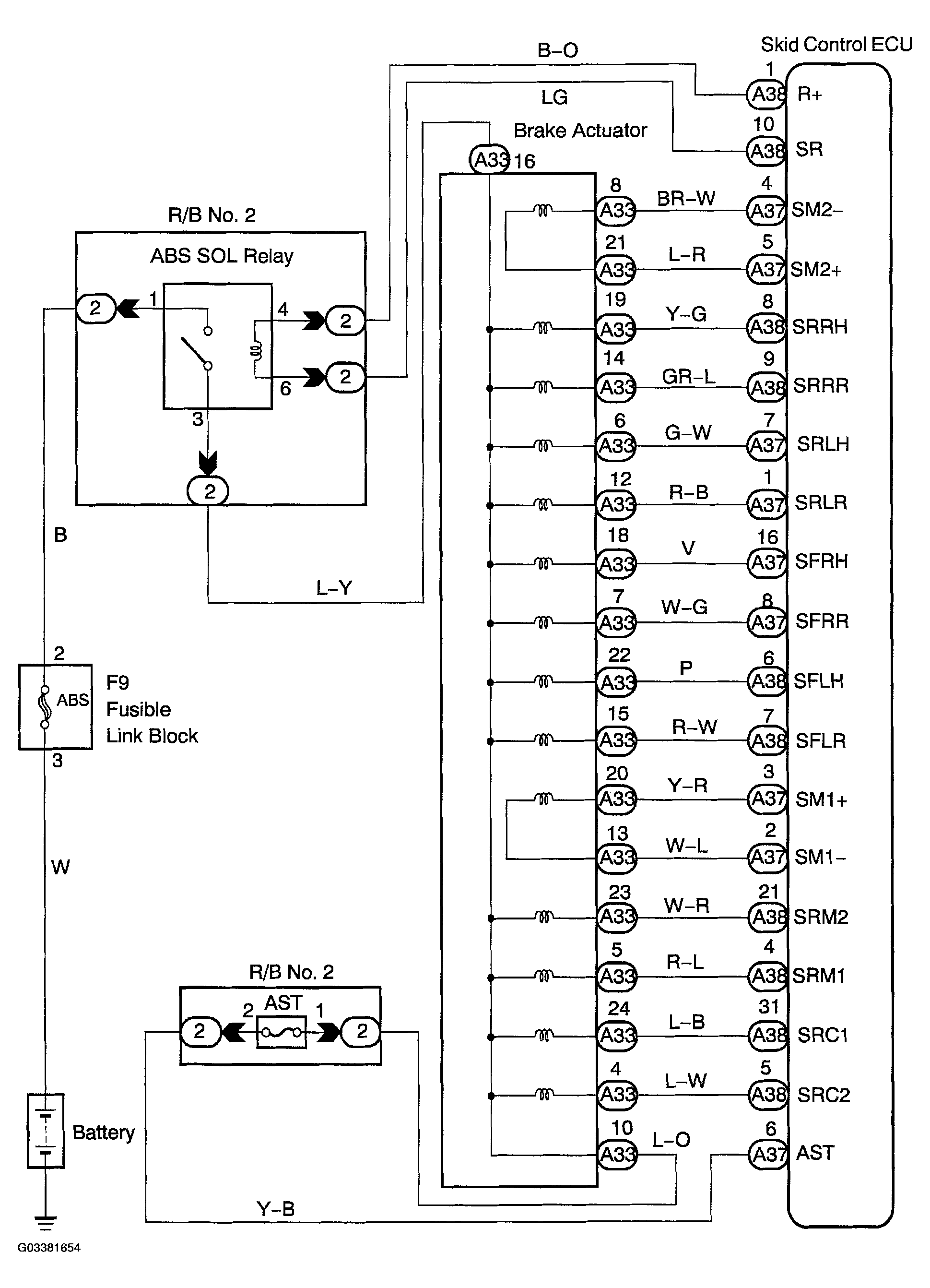

Fig 1: Wiring Diagram - ABS Solenoid Circuit

G03381654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
