DTC C1267 / 67: Brake Pedal Load Sensing Switch: Wiring Diagram

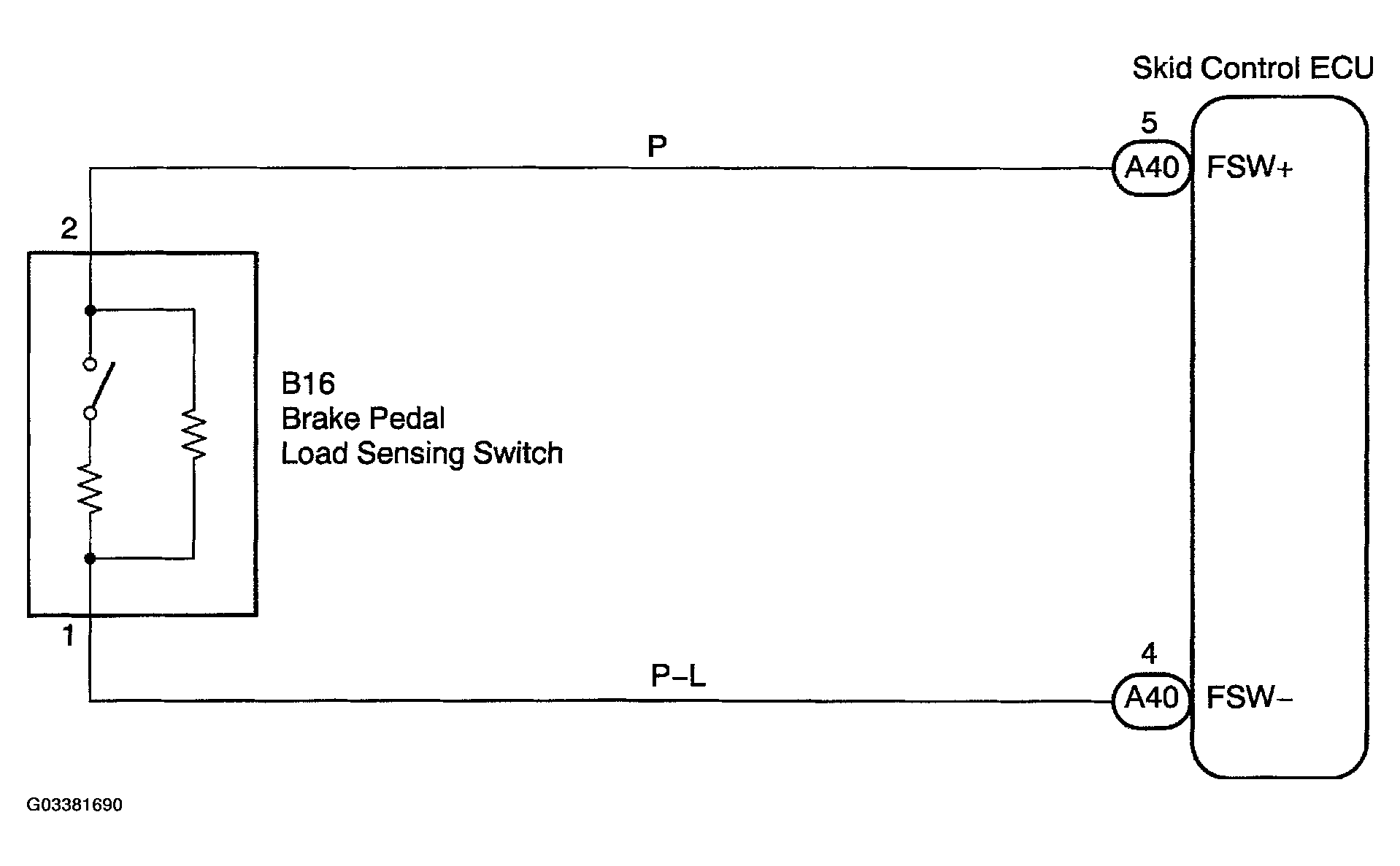

Fig 1: Wiring Diagram - Brake Pedal Load Sensing Switch

G03381690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
